MRT21NSGD1 02 – DOOR

MRT21NSGD1 02 – DOOR

Written by

in

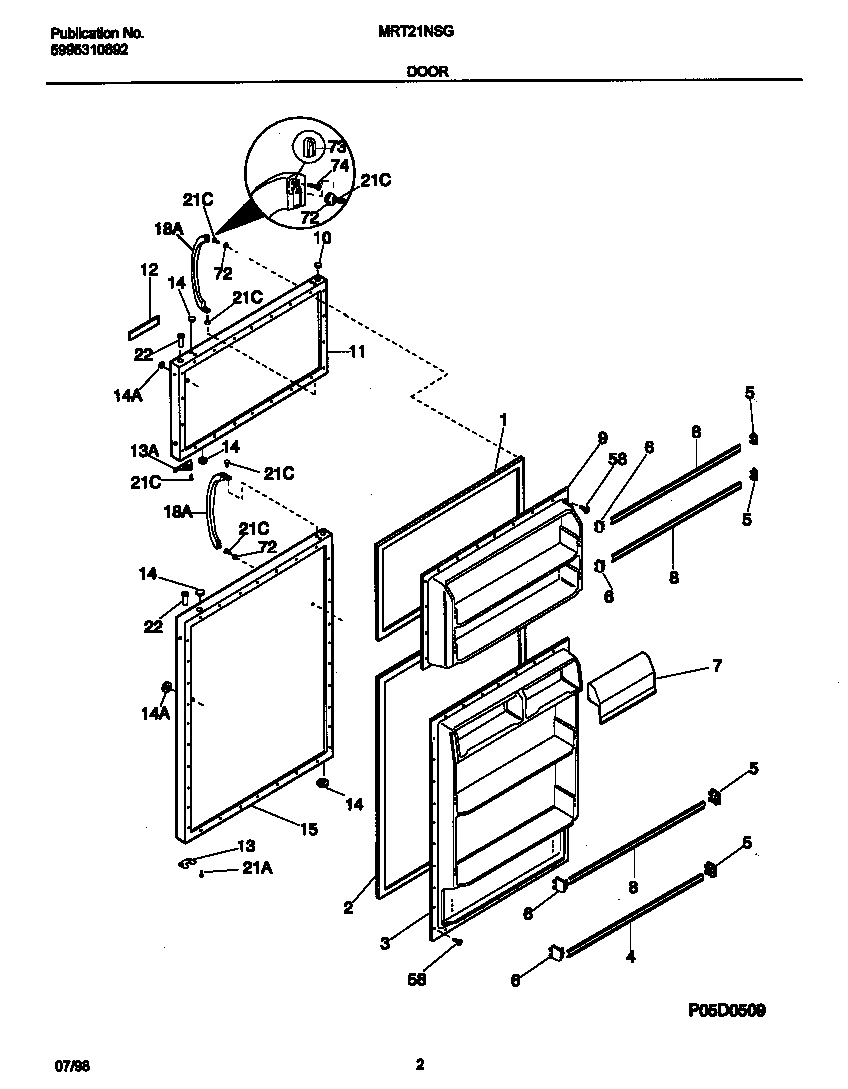

MRT21NSGD1 02 – DOOR

Products

PositionProduct
*86840INSULATION
*86841WCI 218428202
1WCI 215608903
2WCI 218730610
3WCI 218658901
4WCI 215139847
5WCI 5303007295
6WCI 5303007297
7WCI 5303319067
8WCI 215139848
9WCI 5318540802
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
13WCI 218800300
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14WCI 215352211
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
