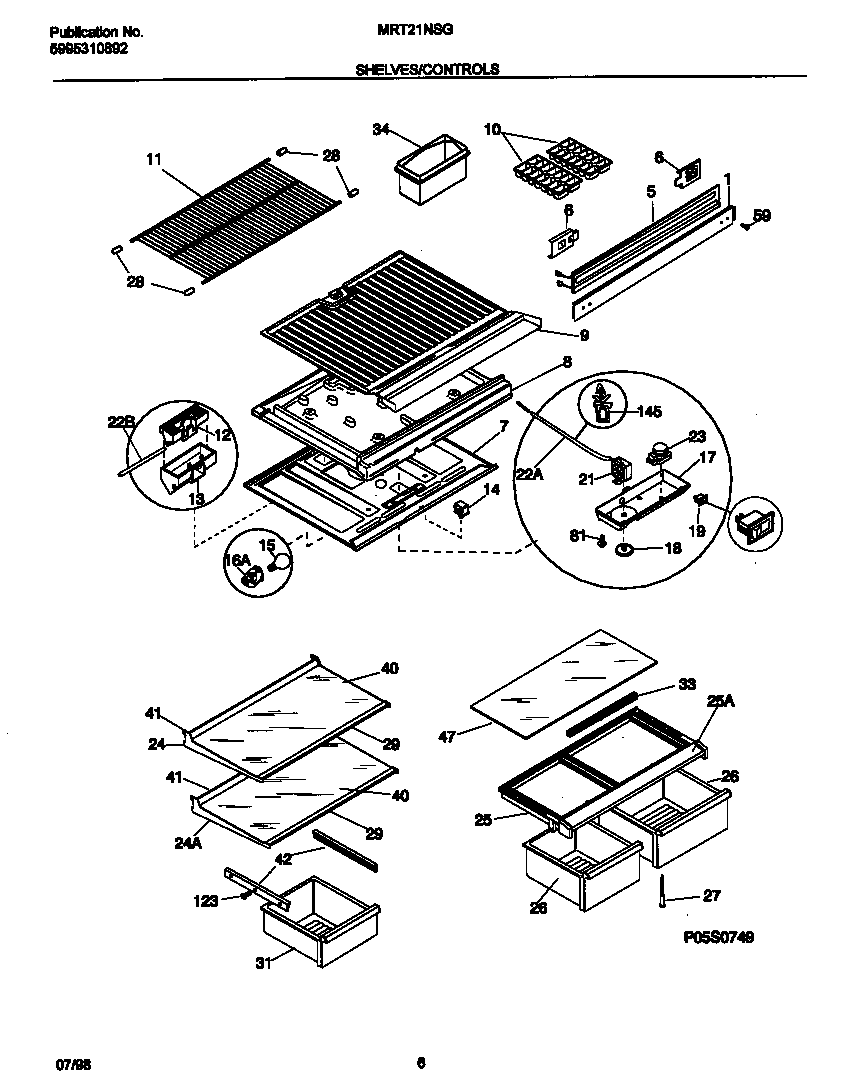

MRT21NSGD1 04 – SHELVES

MRT21NSGD1 04 – SHELVES

Written by

in

MRT21NSGD1 04 – SHELVES

Products

PositionProduct
*86855WCI 5303001260
*868565304455649 Frigidaire Refrigerator Screw
*86854NUT, ANCHOR (NI)
*86851WCI 5303001380
*86853SPACER, FRZR SHELF (NOT ILLUSTRATED)
*86852HARNESS-WIRING, CONTROL/DIVIDER
1WCI 218651901
5WCI 218781002
6WCI 218845600
7WCI 218866101
8WCI 218866000
9WCI 218865900
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
12WCI 218730000
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 5303321455
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21COLD CONTROL
22WCI 218731104
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919118
24WCI 215919123
25WCI 5303280075
25WCI 5303206538
26APAN-CRISPER, 14.35“ WIDE
26BPAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919459
31WCI 5303284461
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
34WCI 3018945
40WCI 218390544
41WCI 215919805
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
47WCI 218390553
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
