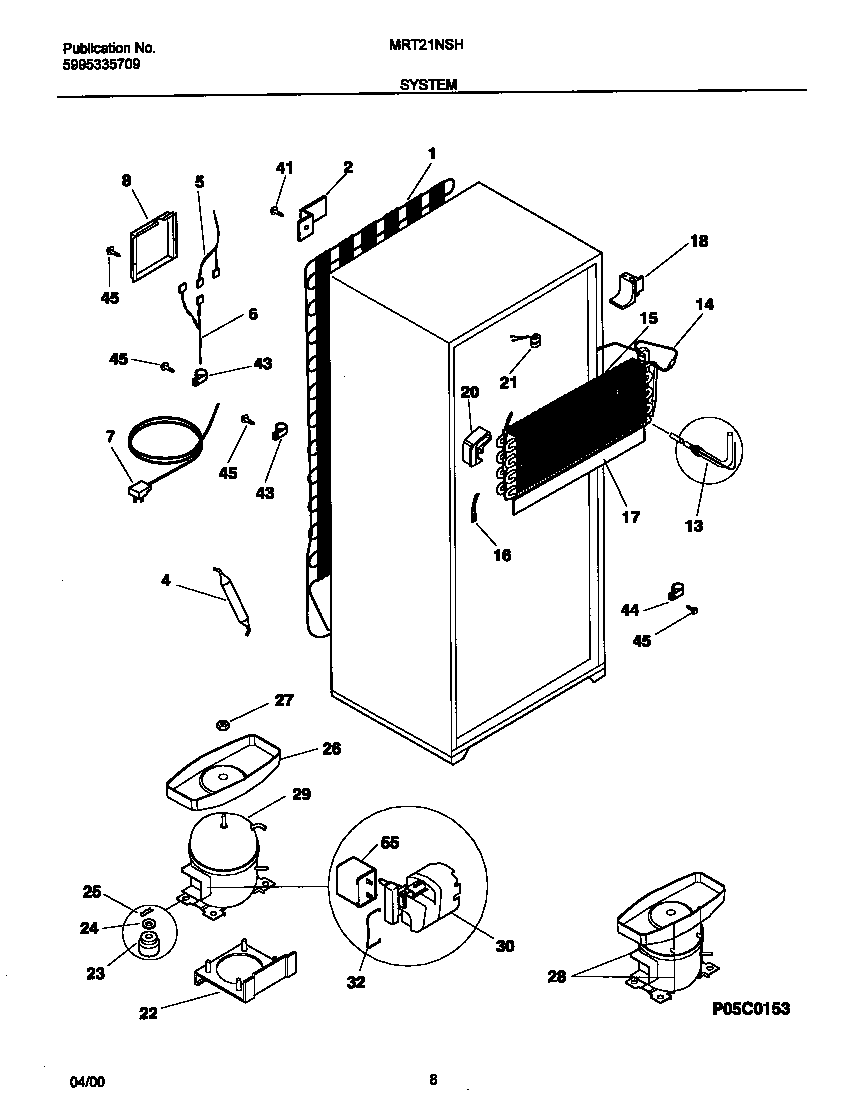

MRT21NSHD2 05 – SYSTEM

Products

Position	Product
*10780	WCI 5304406040
*10781	WCI 5304406721
*10786	WCI 218905701
*10782	WCI 5304406722
*10785	5304455852 Frigidaire Refrigerator Screw
*10783	218843801 Frigidaire Refrigerator Screw
*10787	HOT TUBE REPAIR KIT-SERVICE
*10779	WCI 5304406039
*10784	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	WCI 218657100
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076406
14	5317842502 Frigidaire Defrost Heater
15	WCI 218765400
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218773700
20	INSULATION BLOCK, LH
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721108
32	218973501 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	WCI 218974101
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
