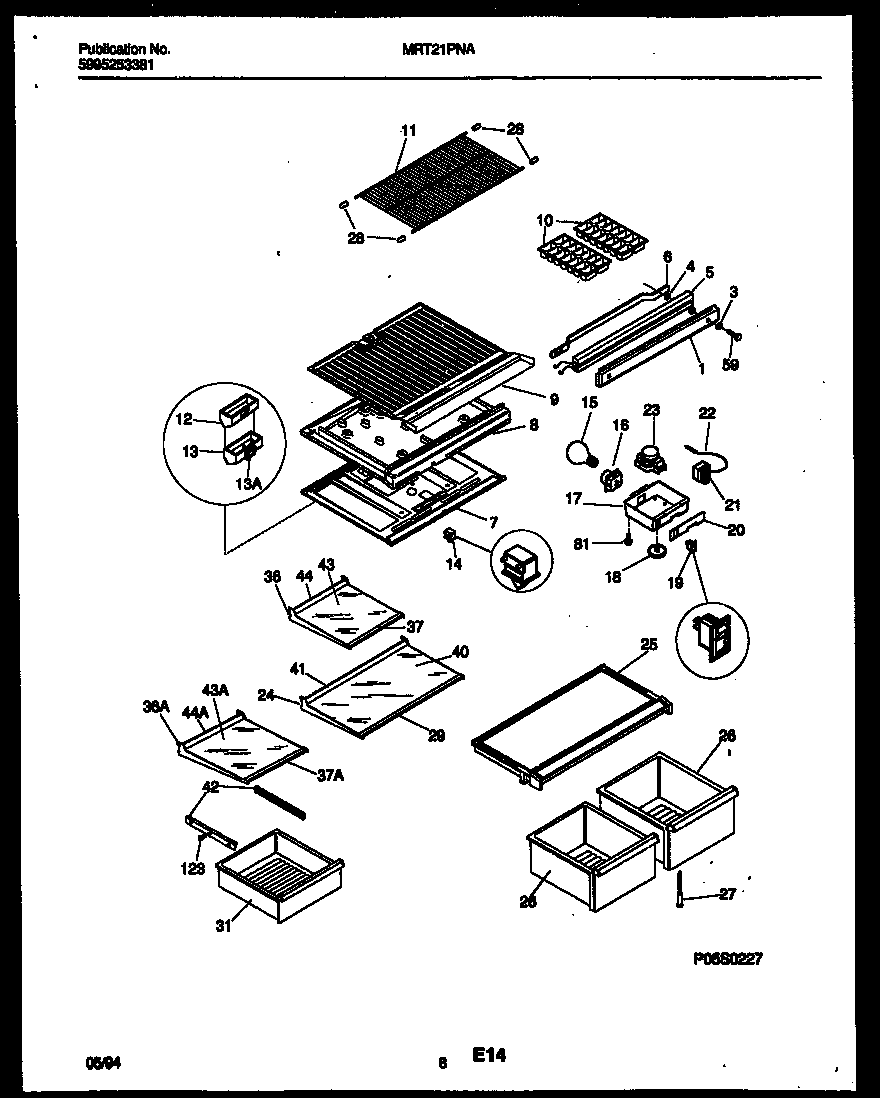

MRT21PNAD0 05 – SHELVES AND SUPPORTS

Products

Position	Product
*10152	LOCK-SHELF TRIM, REAR
*10152	WCI 215339900
1	WCI 5303200370
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7	TOP-REFRIGERATOR
7B	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7A	WCI 5303001380
8	WCI 5308013674
8A	HARNESS-DIVIDER (NON-ILLUSTRATED)
9	BOTTOM, FREEZER
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303288243
12A	5303001449 Frigidaire Refrigerator Seal
12	DEFLECTRO, AIR, W/SEAL
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17	WCI 5303015152
17A	NUT, ANCHOR (NI)
18	WCI 5303300067
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 215611400
21	WCI 5303200810
21A	WCI 5303001260
22	TUBE
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
24	FRAME-FULL SHELF, CANTILEVER
25	COVER-CRISPER PAN
26A	PAN-CRISPER, 11.35“ WIDE
26	PAN-CRISPER, 14.35“ WIDE
27	SUPPORT-CRISPER CVR, ADJUSTABLE
28	END CAP-SHELF,PROTECTOR
29	TRIM-SHELF, 26.80“, FRONT
29A	WCI 5303209274
31	WCI 5303304512
36A	FRAME-PAN MTG SHELF, CANTILEVER, HALF WIDTH
36	FRAME-HALF SHELF, CANTILEVER
37B	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
37A	WCI 5303295981
37	WCI 215616124
40	GLASS-FULL SHELF
41	WCI 5303300038
42A	HANGER-PAN/BASKET, RH
42	HANGER-PAN/BASKET, LH
43A	WCI 215723544
43	WCI 215723547
44	TRIM-SHELF, 13.06“, REAR
44A	TRIM-SHELF, 12.59“, REAR
59	WCI 215097000
81	5304455650 Frigidaire Refrigerator Screw
123	WCI 08014528
