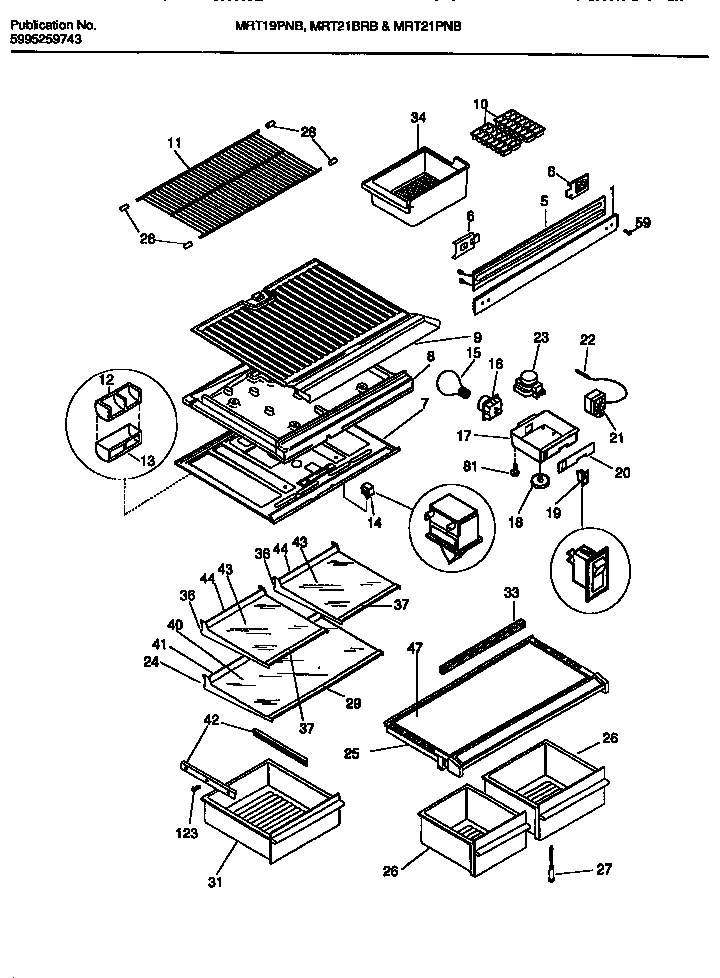

MRT21PNBD1 05 – SHELVES

MRT21PNBD1 05 – SHELVES

Written by

in

MRT21PNBD1 05 – SHELVES

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
8WCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303288243
12DEFLECTOR-AIR
13ANUT, ANCHOR (NI)
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919118
25AWCI 5303280075
25WCI 5303206538
26AWCI 5303304670
26PAN-CRISPER, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919505
31WCI 5303304512
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
36WCI 215919116
36AFRAMER, HALF SHELF, CATILEVER
37WCI 215919510
37AWCI 215919511
40GLASS-FULL SHELF
41WCI 215919805
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 215723544
43AWCI 215723547
44WCI 215919810
44ATRIM-GLASS SHELF,13.07“ ,REAR
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
