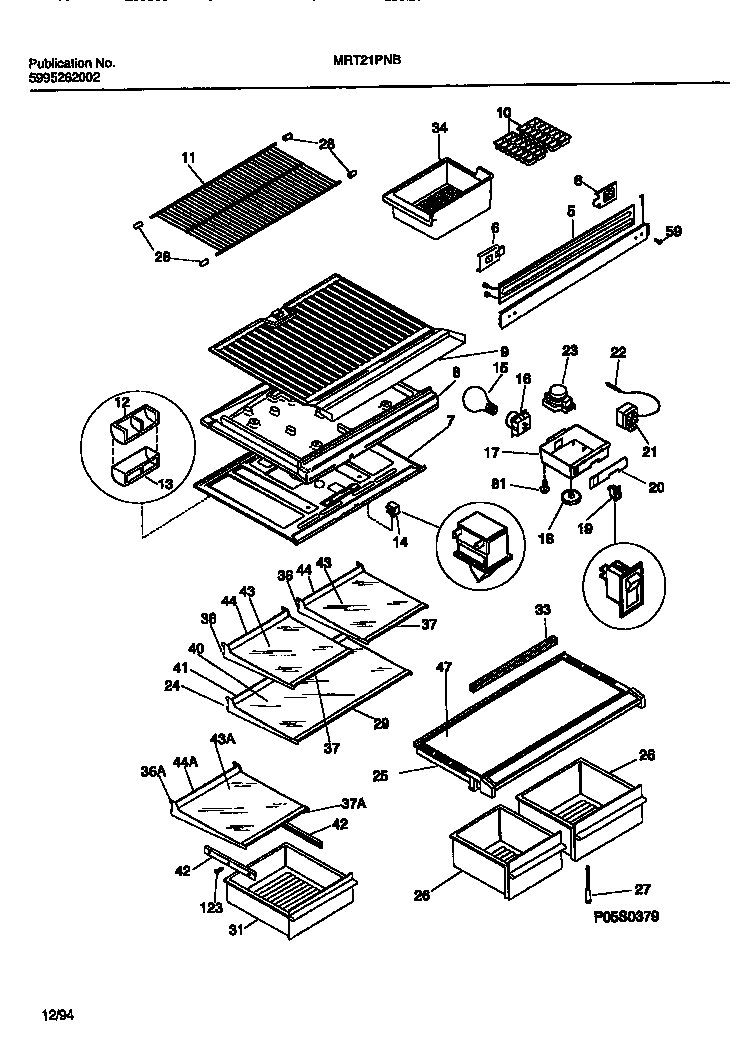

MRT21PNBD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

Position	Product
1	WCI 218252504
5	WCI 218271402
6	WCI 218279800
7A	WCI 5303001380
7B	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7	TOP-REFRIGERATOR
8A	HARNESS-DIVIDER (NON-ILLUSTRATED)
8	WCI 5308013674
9	BOTTOM, FREEZER
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303288243
11A	SPACER, FRZR SHELF (NOT ILLUSTRATED)
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17	WCI 5303015152
17A	NUT, ANCHOR (NI)
18	WCI 5303300067
19	SWITCH-ENERGY SAVER, ROCKER
20	WCI 215611400
21	WCI 5303200810
21A	WCI 5303001260
22	TUBE
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 215919118
25	WCI 5303206538
25A	WCI 5303280075
26	PAN-CRISPER, LH
26A	WCI 5303304670
27	SUPPORT-CRISPER CVR, ADJUSTABLE
28	END CAP-SHELF,PROTECTOR
29	WCI 215919405
31	WCI 5303304512
33	GASKET-CRISPER COVER (NON-ILLUSTRATED)
34	5303212918 Frigidaire Refrigerator Cont
36	WCI 215919116
36A	FRAMER, HALF SHELF, CATILEVER
37	WCI 215919411
37A	WCI 215919410
40	GLASS-FULL SHELF
41	WCI 215919805
42A	HANGER-PAN/BASKET, RH
42	HANGER-PAN/BASKET, LH
43	WCI 215723547
43A	WCI 215723544
44	TRIM-GLASS SHELF,13.07“ ,REAR
44A	WCI 215919810
47	WCI 5303209283
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
123	215005101 Frigidaire Refrigerator Screw
