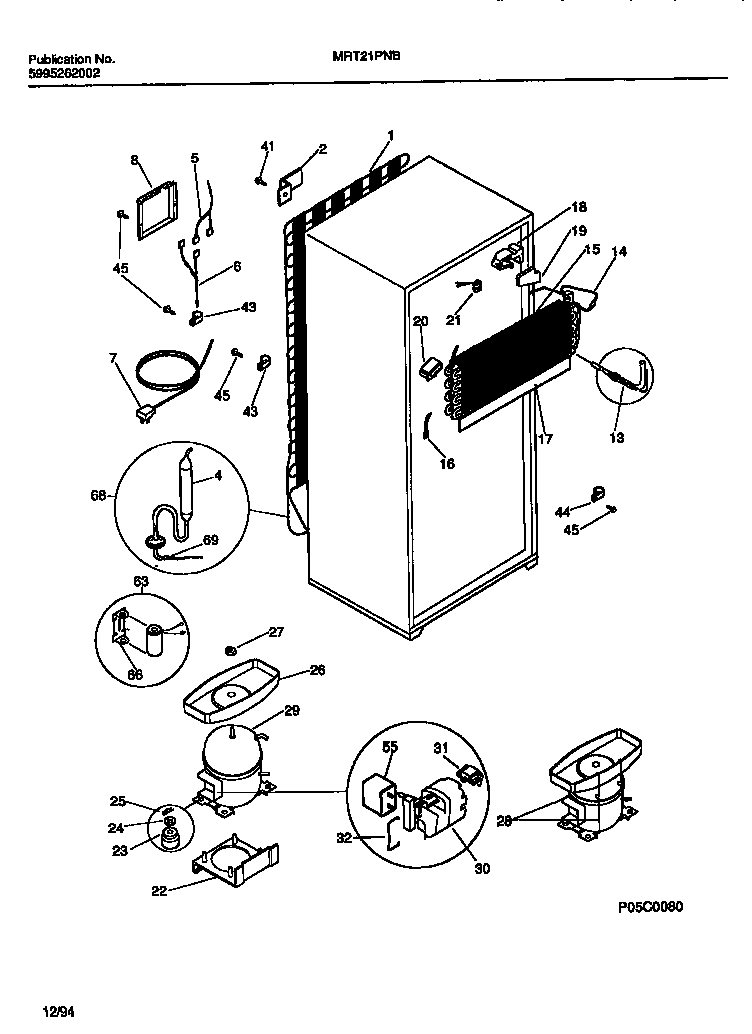

MRT21PNBD2 05 – COOLING SYSTEMadmin2025-04-26T09:20:39+00:00MRT21PNBD2 05 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *04524 | HOT TUBE REPAIR KIT-SERVICE |
| 1A | 5303017691 Frigidaire Refrigerator Spacer-Tube |
| 1 | WCI 5300163133 |
| 2 | BRACKET, MOUNTIN, CONDENSER, (4) |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5 | HARNESS-DIVIDER (NON-ILLUSTRATED) |
| 6 | WCI 215257001 |
| 7 | CORD-ELECTRIC POWER |
| 8A | WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED) |
| 8 | WCI 5303001197 |
| 13 | WCI 215076400 |
| 14 | 5317842502 Frigidaire Defrost Heater |
| 15 | EVAPORATOR |
| 16 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 17 | INSULATOR-EVAP, PLASTIC |
| 18 | INSULATION BLOCK, RH |
| 19 | INSULATION PLUG, RH |
| 20 | INSULATION BLOCK, LH |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | WCI 5308013663 |
| 23 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 24 | WASHER-COMPR MTG |
| 25 | CLIP - COMPRESSOR MTG |
| 26 | PAN-DEFROST DRAIN, ORIG/SVCE COMPR |
| 26A | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 27 | Nut,lock `1/4-20 ,drain pan mtg |
| 28 | PAN RETAINER KIT, SERVICE |
| 29 | WCI 5303917192 |
| 30 | WCI 216008901 |
| 31 | WCI 5303272819 |
| 32 | WCI 215012000 |
| 41 | 5308000039 Frigidaire Refrigerator Screw |
| 43 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 44 | 5308000133 Frigidaire Refrigerator Clamp |
| 45A | 5304455651 Frigidaire Refrigerator Screw |
| 45 | 5304455852 Frigidaire Refrigerator Screw |
| 55 | 5304464438 Frigidaire Compressor Run Capacitor |
| 63 | CAPACITOR ASSY, START, W/BRACKET 66 |
| 66 | WCI 215886600 |
| 69 | WCI 215116300 |
