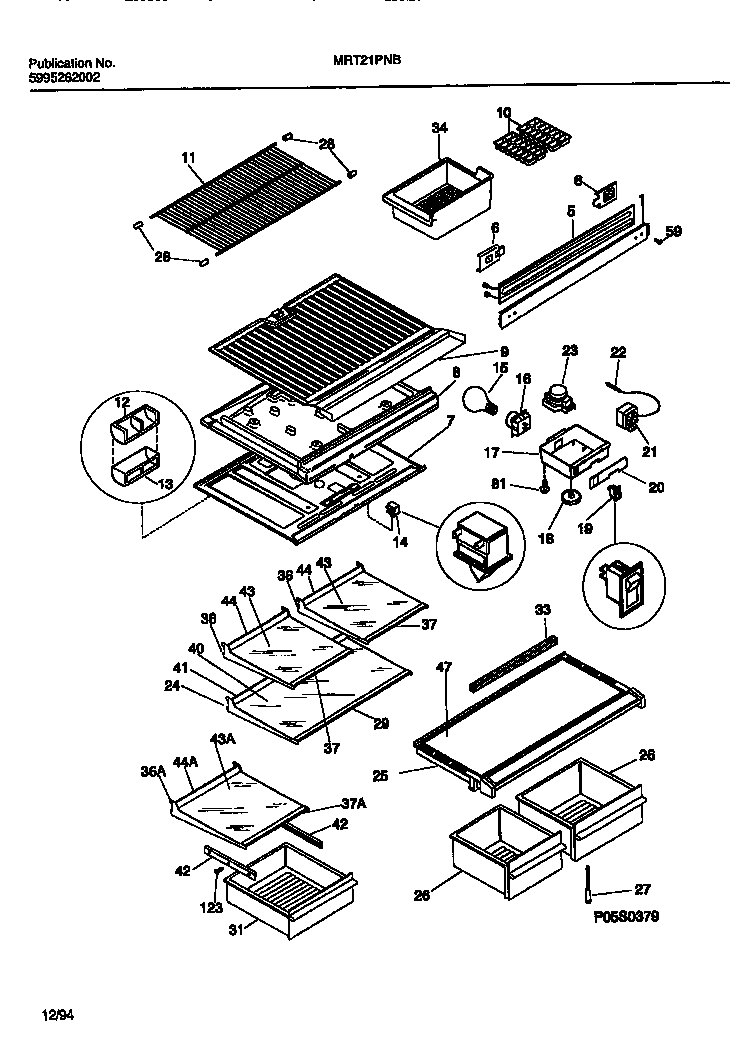

MRT21PNBY2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

MRT21PNBY2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

MRT21PNBY2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
8WCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17ANUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, ROCKER
20WCI 215611400
21WCI 5303200810
21AWCI 5303001260
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919118
25WCI 5303206538
25AWCI 5303280075
26PAN-CRISPER, LH
26AWCI 5303304670
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919405
31WCI 5303304512
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
36WCI 215919116
36AFRAMER, HALF SHELF, CATILEVER
37WCI 215919411
37AWCI 215919410
40GLASS-FULL SHELF
41WCI 215919805
42AHANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 215723547
43AWCI 215723544
44TRIM-GLASS SHELF,13.07“ ,REAR
44AWCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
