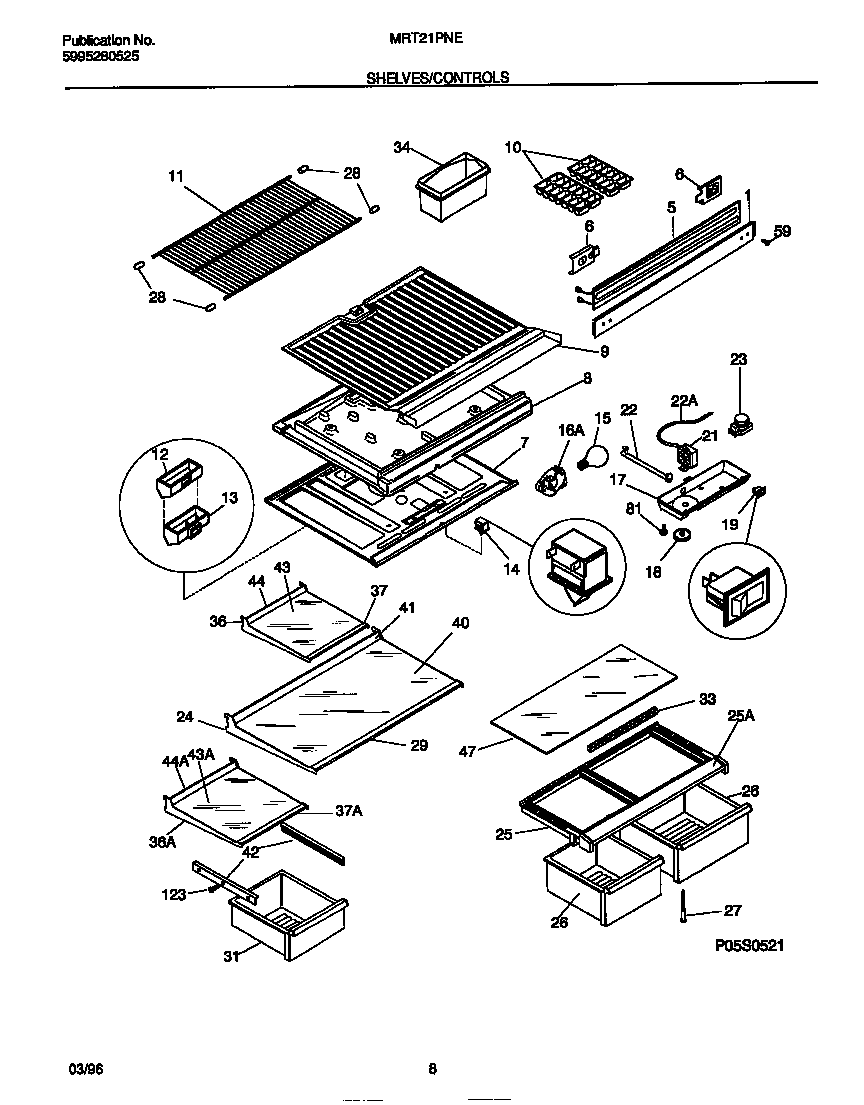

MRT21PNED0 04 – SHELVES/CONTROLS

MRT21PNED0 04 – SHELVES/CONTROLS

Written by

in

MRT21PNED0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218651901
5WCI 218271402
6WCI 218279800
7AWCI 3019038
7BWCI 5303001380
8AWCI 5303019039
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8C3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11AWCI 5303288243
12WCI 218630800
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303307349
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303303674
22WCI 3018891
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919118
25WCI 5303280075
25WCI 5303206538
26APAN-CRISPER, 11.35“ WIDE
26BWCI 5303319064
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919459
31WCI 5303319066
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
34WCI 3018945
36FRAMER, HALF SHELF, CATILEVER
36WCI 215919116
37WCI 215919492
37WCI 215919460
40WCI 218390544
41WCI 215919805
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
43WCI 218390545
43WCI 218390543
44WCI 215919810
44TRIM-GLASS SHELF,13.07“ ,REAR
47WCI 218390553
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
