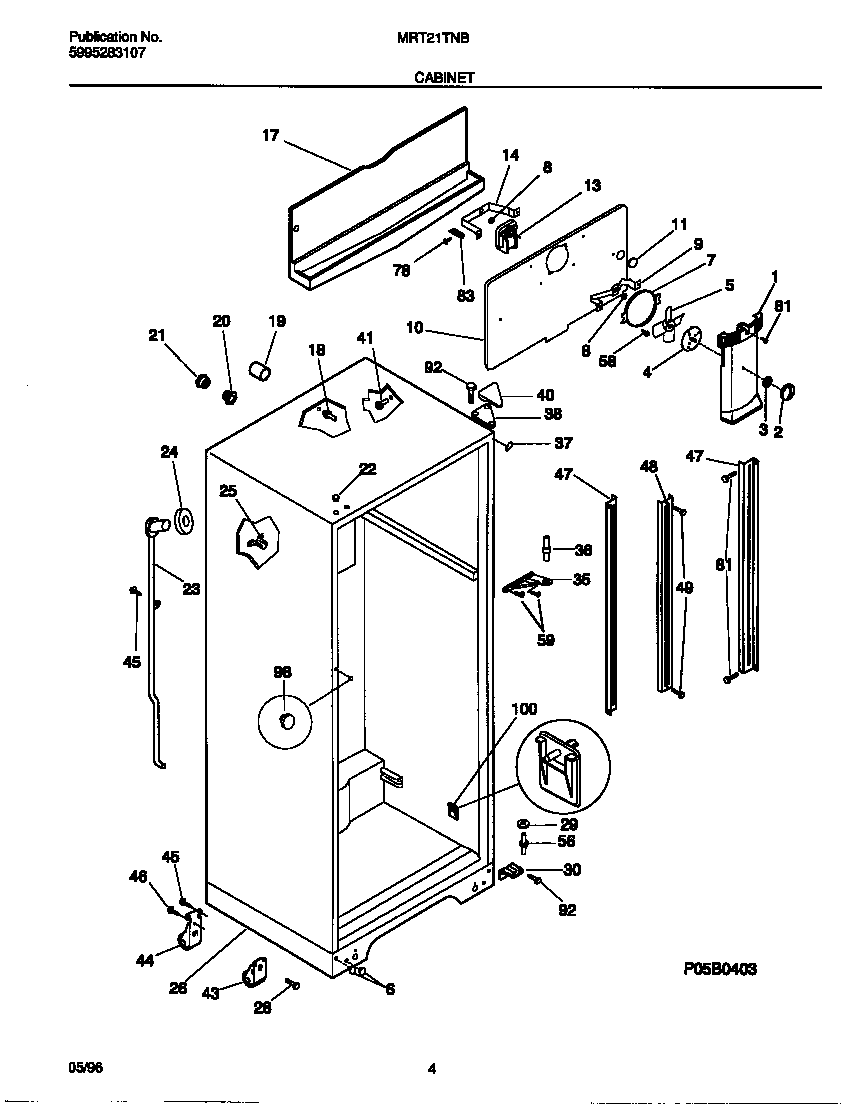

MRT21TNBW4 03 – CABINET

Products

PositionProduct
*43045PLUG, BUTTON, CABINET LINER (NI)
*43042WCI 218601201
*430445303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303307435
2WCI 5303307351
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10ACOVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14B5309918806 Frigidaire Refrigerator Light Switch Door
14ABRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25AWCI 215774100
25BWCI 5303001361
26WCI 218605101
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 218666700
30BWCI 218605200
30AWCI 218220200
30CWCI 218605300
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
40WCI 3206101
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43AWCI 218703001
43BWCI 5308009790
43CWCI 5308011326
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
