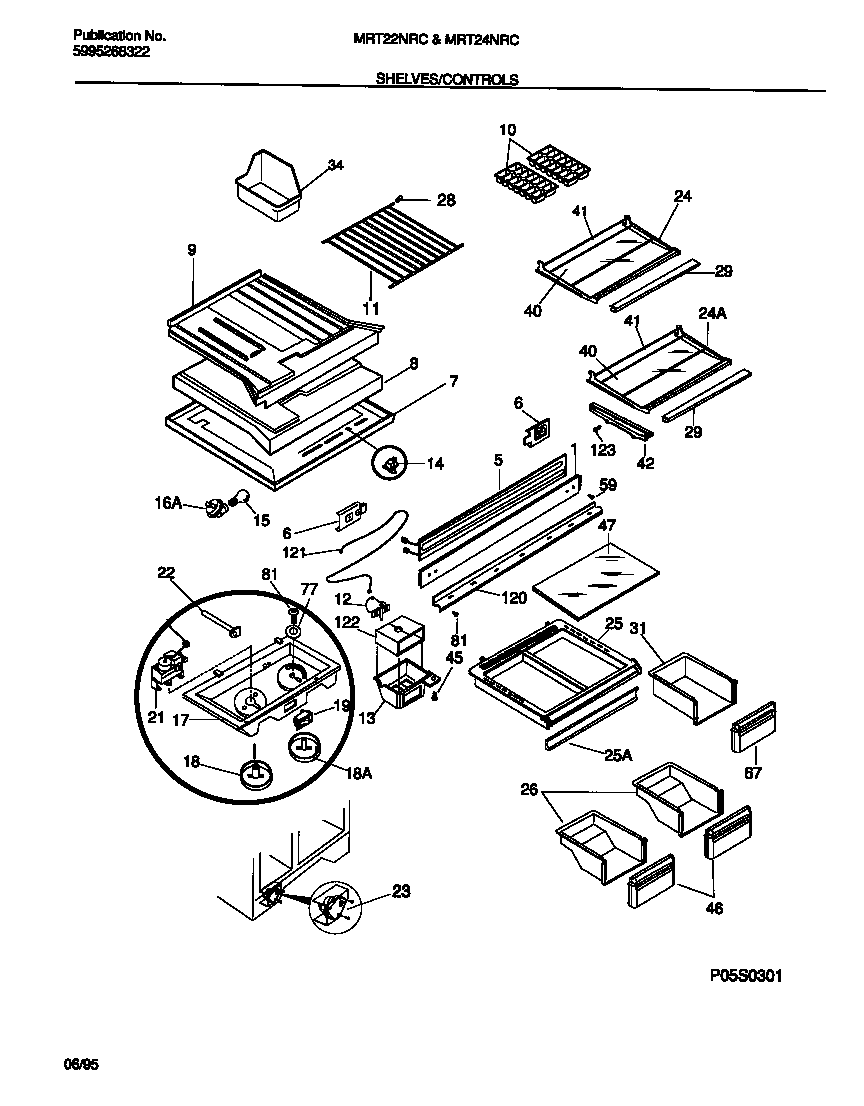

MRT22NRCD0 04 – SHELVES/CONTROLS

MRT22NRCD0 04 – SHELVES/CONTROLS

Written by

in

MRT22NRCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
*92684WCI 215848000
1WCI 215002201
5WCI 215096800
6WCI 218279800
7WCI 215055803
7WCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303294244
11ASPACER-FRZR SHELF
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12BSPACER-AIR DEFLECTR
12CWASHER-AIR DEFLECTR
12AWCI 215132300
13AWCI 215420300
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17NUT-ANCHOR
17WCI 215932903
18WCI 5303296667
18WCI 5303296668
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303303674
22WCI 215932100
23DSHIELD-DEFROST TIMR,BTM
23BCOVER-DEFROST TIMER, TOP
23C5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919144
24WCI 215919142
25WCI 215216605
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919506
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
40WCI 215723558
41WCI 215919806
42AHANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 215058505
47WCI 5303304624
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 215060204
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122AWCI 218561201
122BWCI 218561203
123215005101 Frigidaire Refrigerator Screw
