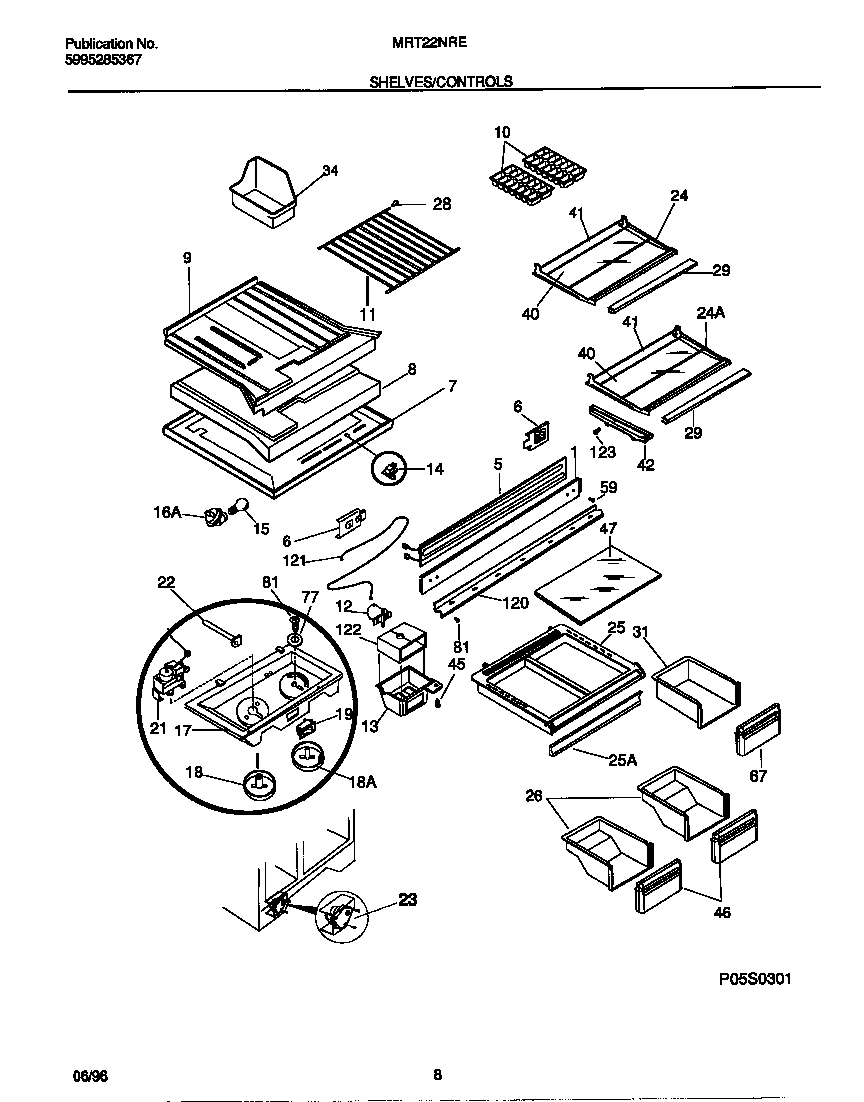

MRT22NRED1 04 – SHELVES/CONTROLS

MRT22NRED1 04 – SHELVES/CONTROLS

Written by

in

MRT22NRED1 04 – SHELVES/CONTROLS

Products

PositionProduct
*35004WCI 215848000
1WCI 215002201
5WCI 215634100
6WCI 218279800
7WCI 218646701
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11AWCI 5303294244
12AWCI 218634902
12BSPACER-AIR DEFLECTR
12CWASHER-AIR DEFLECTR
13WCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 215932905
17BNUT-ANCHOR
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303319419
22WCI 218660701
23DSHIELD-DEFROST TIMR,BTM
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
23BCOVER-DEFROST TIMER, TOP
23C5304455649 Frigidaire Refrigerator Screw
24WCI 215919144
24WCI 215919142
25WCI 215216605
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919479
31WCI 5303292388
34WCI 3018945
40WCI 218390539
41WCI 215919806
42AHANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 215058511
47WCI 218390550
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 215060213
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122WCI 218561201
123215005101 Frigidaire Refrigerator Screw
