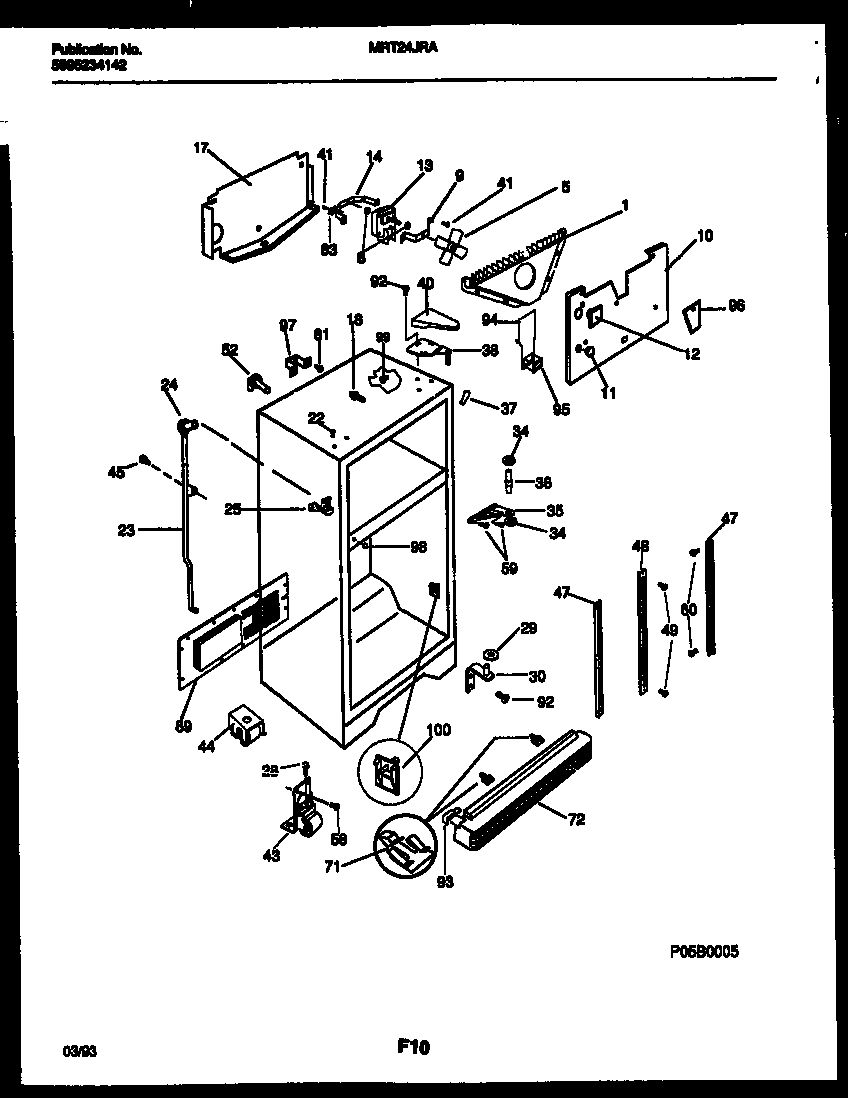

MRT24JRAD0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303292399
5	WCI 5303292398
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 5303294249
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303292393
13A	215474201 Frigidaire Refrigerator Washer
13	5300158289 Frigidaire Evaporator Fan Motor
14	240438003 Frigidaire Refrigerator Bracket & Bushing
17	WCI 5303292440
18	SUPPORT – EVAP COVER, (2)
22	WCI 215134511
23	WCI 215266301
24	WCI 5303207353
25	WCI 5303292412
25A	WCI 5303001361
28	WCI 5303289062
29	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30A	TAPPING PLATE, LH (NOT ILLUSTRATED)
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
34	WCI 215095400
35	WCI 215002611
36	WCI 215095900
37	TRIM-CABINET CORNER, ALMOND
38	WCI 5303292368
40	WCI 5303288946
41	5308000039 Frigidaire Refrigerator Screw
43	WCI 5303289059
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 5303292394
48	WCI 5303292395
49	SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52A	PLUG-WTR INLET TUBE
52	WCI 5303289294
59	WCI 215097000
60	5304455852 Frigidaire Refrigerator Screw
71	WCI 215003300
