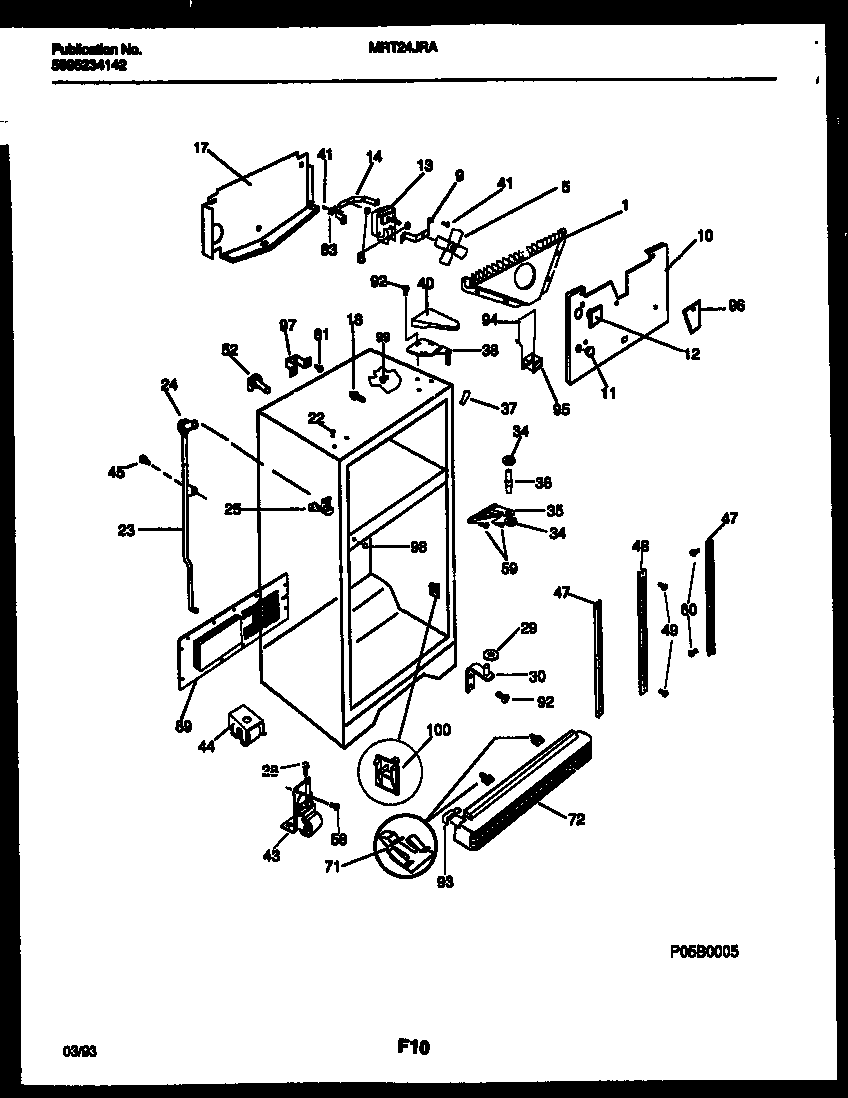

MRT24JRAZ0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303292399
5	WCI 5303292398
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 5303294249
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303292393
13	5300158289 Frigidaire Evaporator Fan Motor
13A	215474201 Frigidaire Refrigerator Washer
14	240438003 Frigidaire Refrigerator Bracket & Bushing
17	WCI 5303292440
18	SUPPORT - EVAP COVER, (2)
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 215266301
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5303292412
28	WCI 5303289062
29	WCI 215003200
30A	TAPPING PLATE, LH (NOT ILLUSTRATED)
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34	WCI 215095400
35	WCI 215002601
36	WCI 215095900
37	TRIM-CABINET CORNER, WHITE
38	WCI 5303292368
40	WCI 5303288945
41	5308000039 Frigidaire Refrigerator Screw
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 5303292394
48	WCI 5303292395
49	SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52	WCI 5303289294
52A	PLUG-WTR INLET TUBE
59	WCI 215097000
60	5304455852 Frigidaire Refrigerator Screw
71	WCI 215003300
