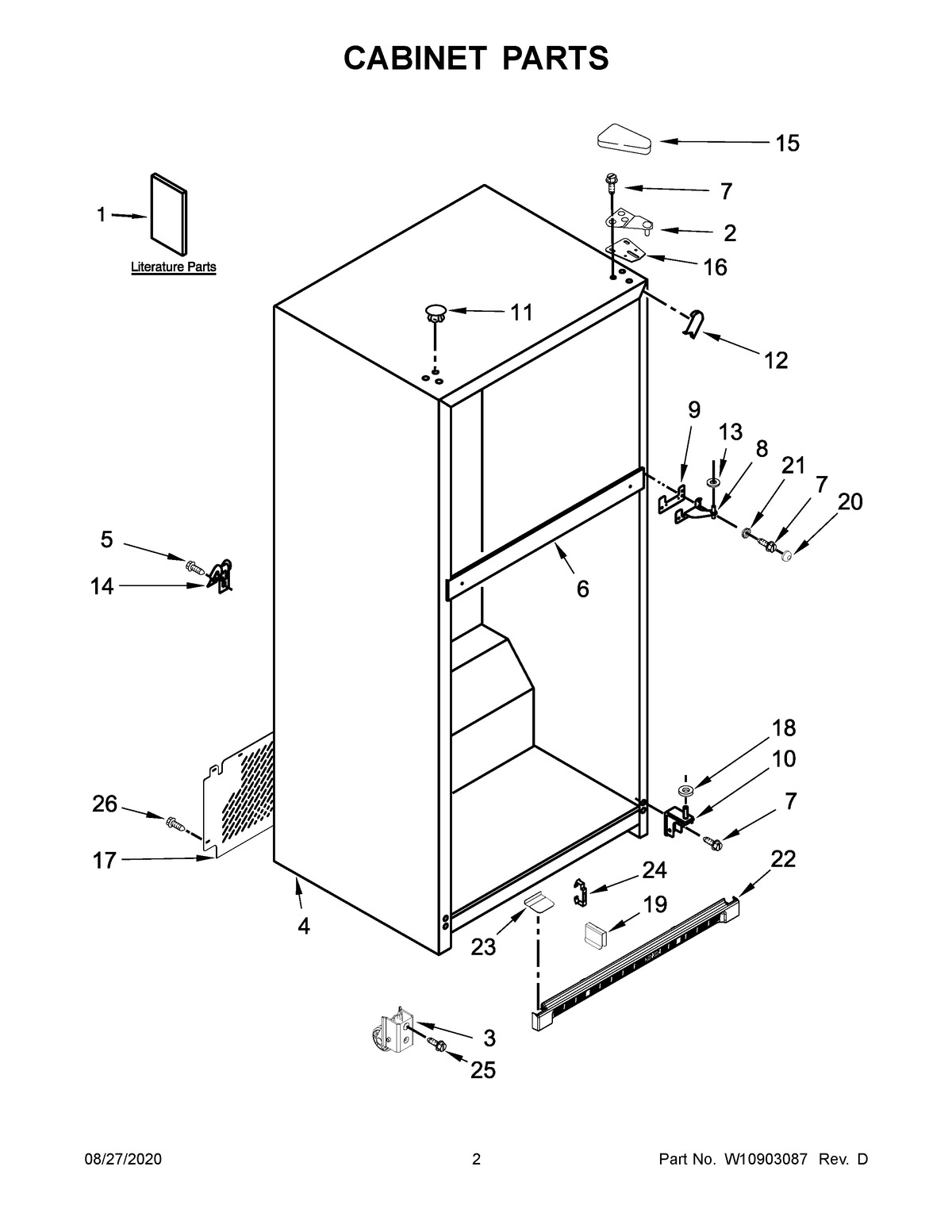

MRT311FFFE00 02 – CABINET PARTSadmin2025-04-26T13:06:37+00:00MRT311FFFE00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | TECH SHEET |
| 1B | MAY W11095261 |
| 1A | USE & CARE GUIDE |
| 2 | MAY 2261963 |
| 3 | ASSEMBLY, ROLLER |
| 5 | MAY 489442 |
| 6 | LINER (NOT A SERVICEABLE PART) |
| 7 | MAY 489497 |
| 8 | MAY 2254618 |
| 9 | MAY 2183852 |
| 10 | MAY 2254473 |
| 11 | MAY W10520304 |
| 11B | HOLE PLUG (GREY) |
| 11A | HOLE PLUG (BLACK) |
| 12B | FILLER, WRAPPER (GREY) |
| 12A | FILLER, WRAPPER (BLACK) |
| 12 | FILLER, WRAPPER (WHITE) |
| 13 | WASHER, PLASTIC |
| 14 | MAY 549193 |
| 15A | MAY 2213363 |
| 15 | Cover, Hinge (White) |
| 15B | COVER, HINGE (GREY) |
| 16 | SHIM, TOP HINGE |
| 17 | MAY W10609390 |
| 18 | Washer (1/16) |
| 19 | CLIP, ROLLER |
| 20A | CAP, DOME (BLACK) |
| 20B | CAP, DOME (GREY) |
| 20 | CAP, DOME (WHITE) |
| 21 | CAP, WASHER DOME |
| 22A | GRILLE (BLACK) |
| 22 | GRILLE (WHITE) |
| 22B | GRILLE (GREY) |
| 23 | COVER, TOE GRILLE (WHITE) |
| 23A | COVER, TOE GRILLE (BLACK) |
| 23B | COVER, TOE GRILLE (GREY) |
| 24 | MAY 2254385 |
| 25 | MAY W10142287 |
| 26 | MAY 2262176 |
