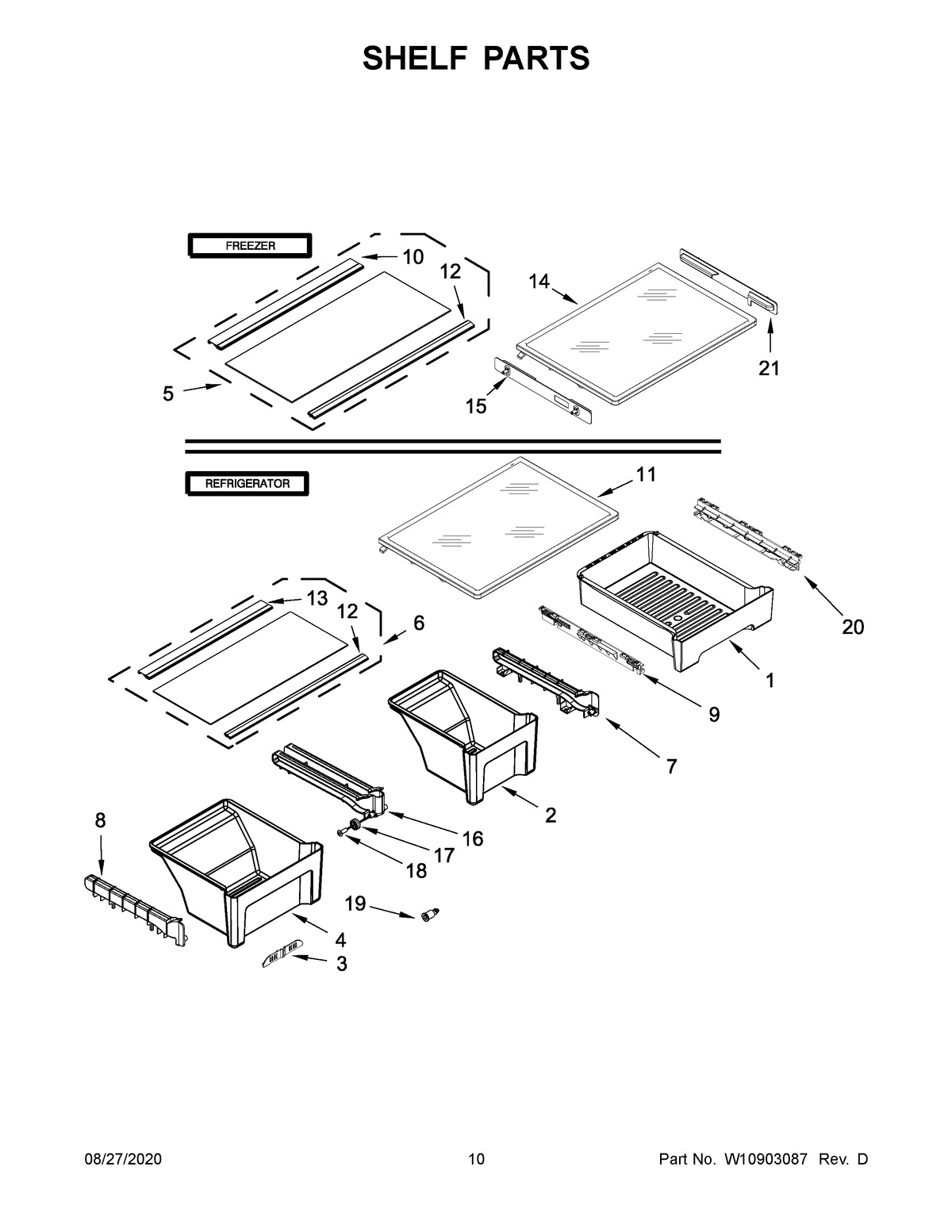

MRT311FFFE00 06 – SHELF PARTS

Products

PositionProduct
1PAN, MEAT
2MAY W10662133
3CONTROL, HUMIDITY
4MAY W10663427
5ASSEMBLY, SHELF CRISPER
6ASSEMBLY, SHELF RC
7MAY W10694151
8MAY W10694149
9RAIL, TRACK (LEFT HAND)
10MAY W10691459
11MAY W10579374
12TRIM, SHELF FRONT
13MAY W10730166
14MAY W10601431
15SUPPORT, FREEZER SHELF (LEFT SIDE)
16MAY W10694150
17ROLLER, PAN
18SCREW (STAINLESS)
19AXLE, ROLLER
20RAIL, TRACK (RIGHT HAND)
21SUPPORT, FREEZER SHELF (RIGHT SIDE)
