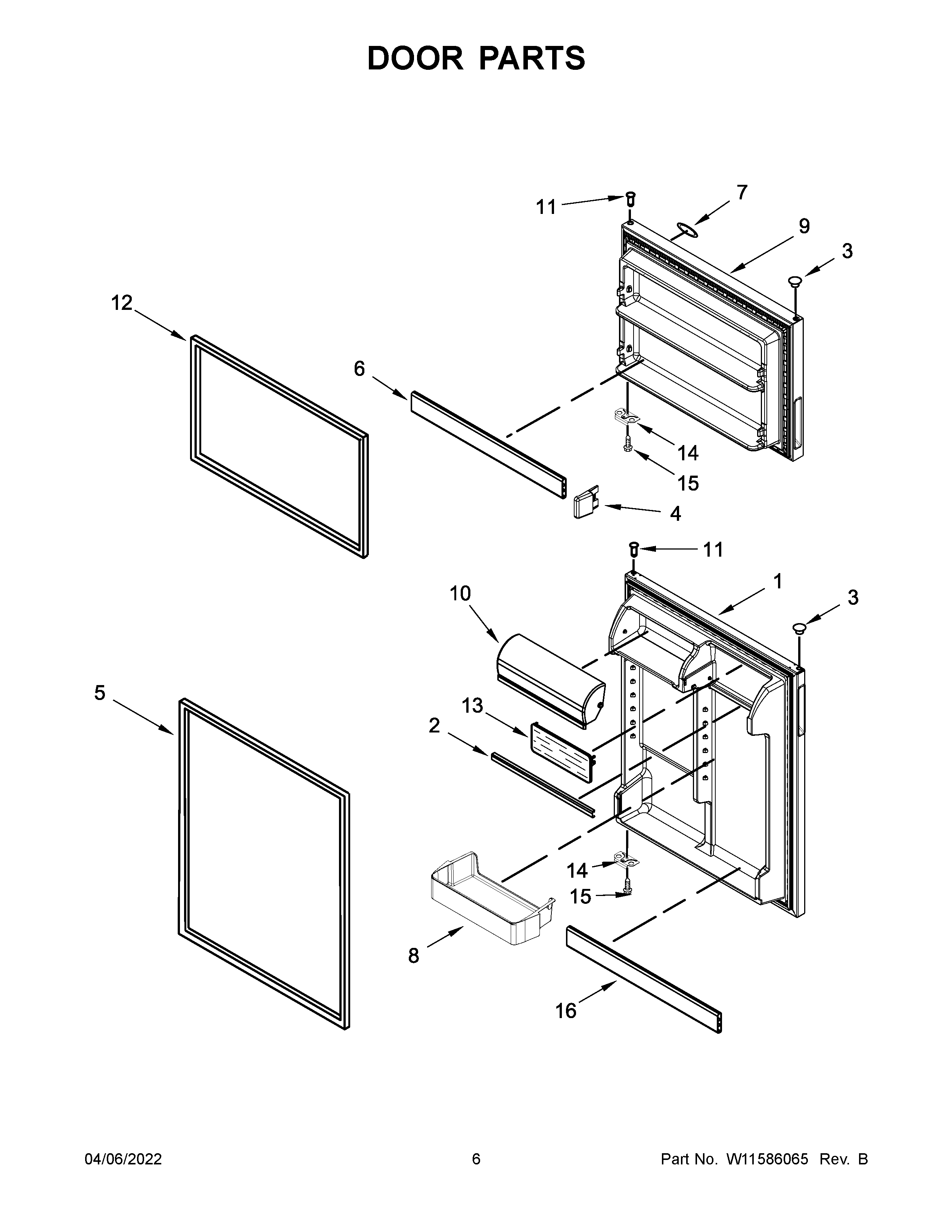

MRT311FFFE01 04 – DOOR PARTS

Products

Position	Product
1A	LW10668767 Whirlpool Refrigerator Door FIP M
1	LW10668765 Whirlpool Refrigerator FIP Door
1B	REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (STAINLESS)
2	W11678258 Whirlpool Refrigerator Door Trim
3A	WP2212651 Whirlpool Refrigerator Button Plug
3	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
3B	PLUG, HINGE SLEEVE (GREY)
4	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5B	W10249195 Whirlpool Refrigerator Door Gasket
5	W10860480 Whirlpool Refrigerator Door Gasket
5A	2177311 Whirlpool Refrigerator Magnetic Door Gasket
6	W11596065 Whirlpool Refrigerator Door Trim
7	WPW10612925 Whirlpool Microwave Nameplate
8	W10803530 Whirlpool Refrigerator Cantilever Bin
9A	LW10668770 Whirlpool Refrigerator Door FIP
9B	FREEZER DOOR (INCLUDES DOOR GASKET) (STAINLESS)
9	LW10668769 Whirlpool Refrigerator Door FIP
10	W11617783 Whirlpool Refrigerator Door Compartment
11	WP2314293 Whirlpool Refrigerator Thimble
12	W10741118 Whirlpool Refrigerator Door Gasket
12A	2177310 Whirlpool Refrigerator Door Gasket
12B	W10249196 Whirlpool Refrigerator Gasket FIP
13	WP2188236 Whirlpool Refrigerator Shelf Door
14	W11745278 Whirlpool Bracket
15	WP681249 Whirlpool Screw Assembly
16	W11606660 Whirlpool Refrigerator Door Trim
