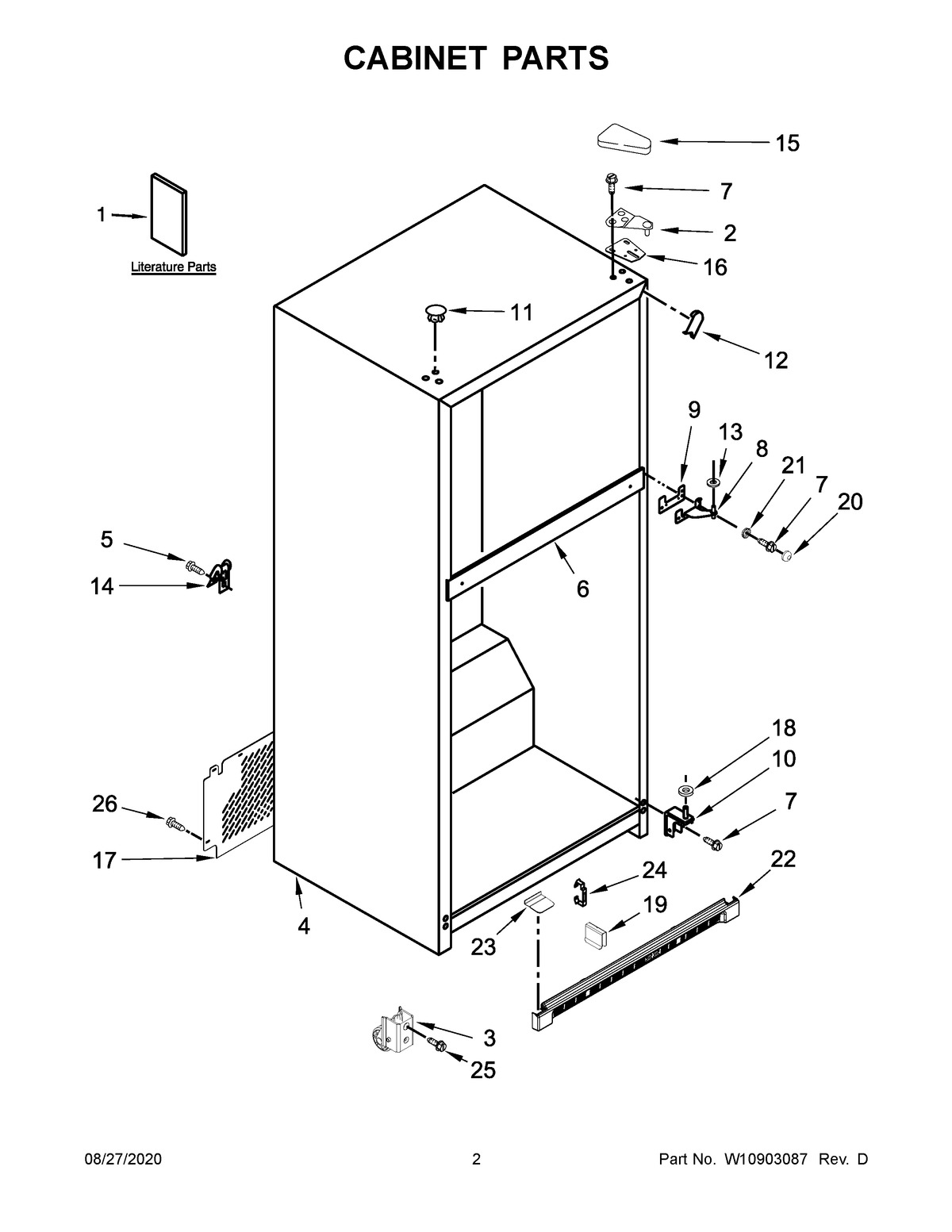

MRT311FFFM00 02 – CABINET PARTS

MRT311FFFM00 02 – CABINET PARTS

Written by

in

MRT311FFFM00 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1BMAY W11095261
1AUSE & CARE GUIDE
2MAY 2261963
3ASSEMBLY, ROLLER
5MAY 489442
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2254618
9MAY 2183852
10MAY 2254473
11MAY W10520304
11BHOLE PLUG (GREY)
11AHOLE PLUG (BLACK)
12BFILLER, WRAPPER (GREY)
12AFILLER, WRAPPER (BLACK)
12FILLER, WRAPPER (WHITE)
13WASHER, PLASTIC
14MAY 549193
15AMAY 2213363
15Cover, Hinge (White)
15BCOVER, HINGE (GREY)
16SHIM, TOP HINGE
17MAY W10609390
18Washer (1/16)
19CLIP, ROLLER
20ACAP, DOME (BLACK)
20BCAP, DOME (GREY)
20CAP, DOME (WHITE)
21CAP, WASHER DOME
22AGRILLE (BLACK)
22GRILLE (WHITE)
22BGRILLE (GREY)
23COVER, TOE GRILLE (WHITE)
23ACOVER, TOE GRILLE (BLACK)
23BCOVER, TOE GRILLE (GREY)
24MAY 2254385
25MAY W10142287
26MAY 2262176
