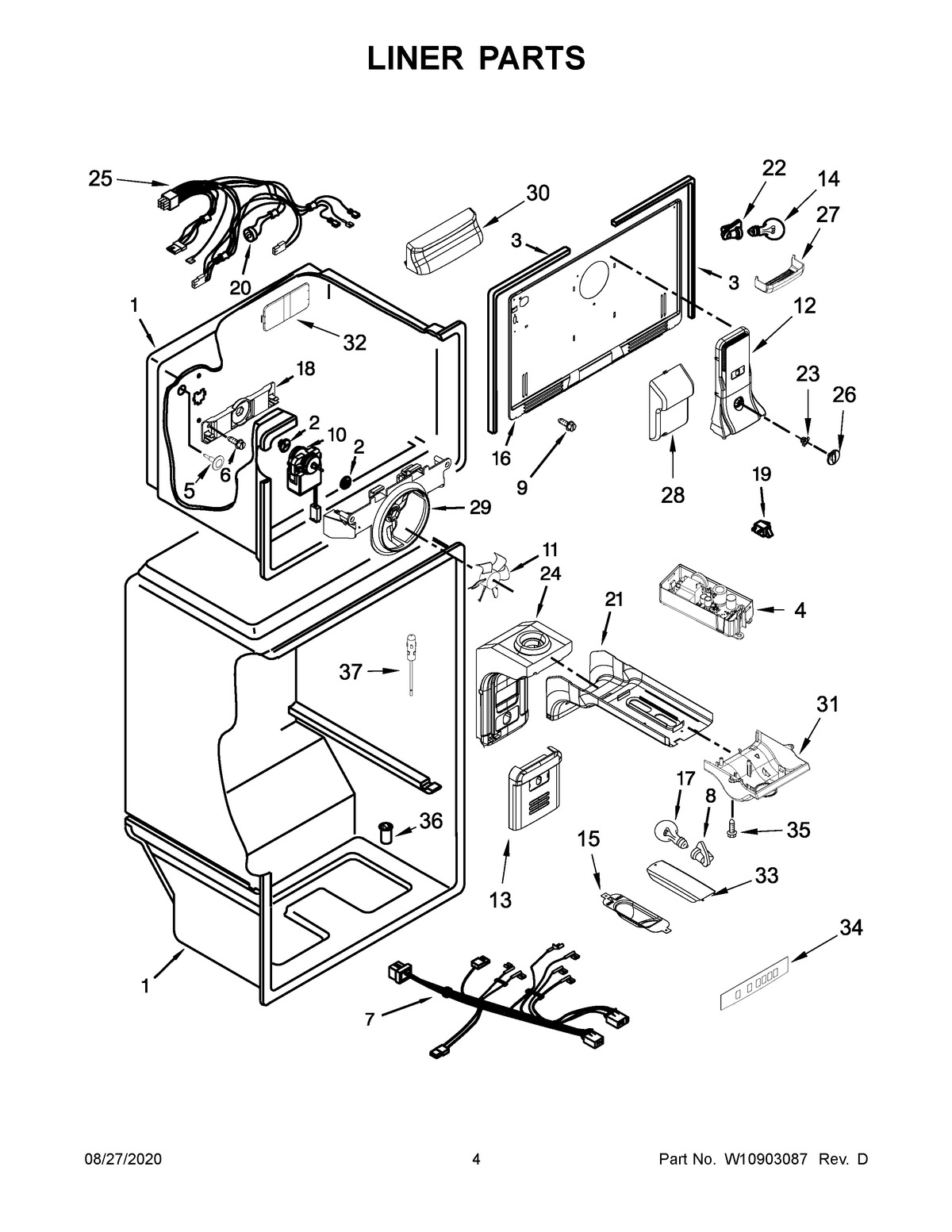

MRT311FFFM00 03 – LINER PARTS

MRT311FFFM00 03 – LINER PARTS

Written by

in

MRT311FFFM00 03 – LINER PARTS

Products

PositionProduct
2MAY 2197380
3MAY 2254360
4CONTROL, ADAPTIVE DEFROST
5MAY 941839
6Screw
7ASSEMBLY, CONTROL BOX WIRE
8Socket, Light
9SCREW (WHITE)
10MAY 2315539
11MAY 2200509
12AIR TOWER, FC
13CUP, AIR DIFFUSER
14LAMP, LED
15MAY W10300161
16MAY W10617507
17LAMP, LED
18Bracket, Fan Back
19SWITCH, ROCKER ARM
20LINER (NOT A SERVICEABLE PART)
21MAY W10305175
22SOCKET, LIGHT
23BAFFLE, AIR MANUAL
24ASSEMBLY, MULTIFLOW
25ASSEMBLY, FREEZER WIRE
26KNOB, AIR CONTROL
27LENS, LIGHT
28MAY W10339203
29MAY W10321162
30HOUSING, FREEZER LIGHTING
31BOX, CONTROL
32CUP, SCREW
33LIGHT COVER, RC
34OVERLAY
35MAY 489174
36MAY 2210509
37THERMISTOR
