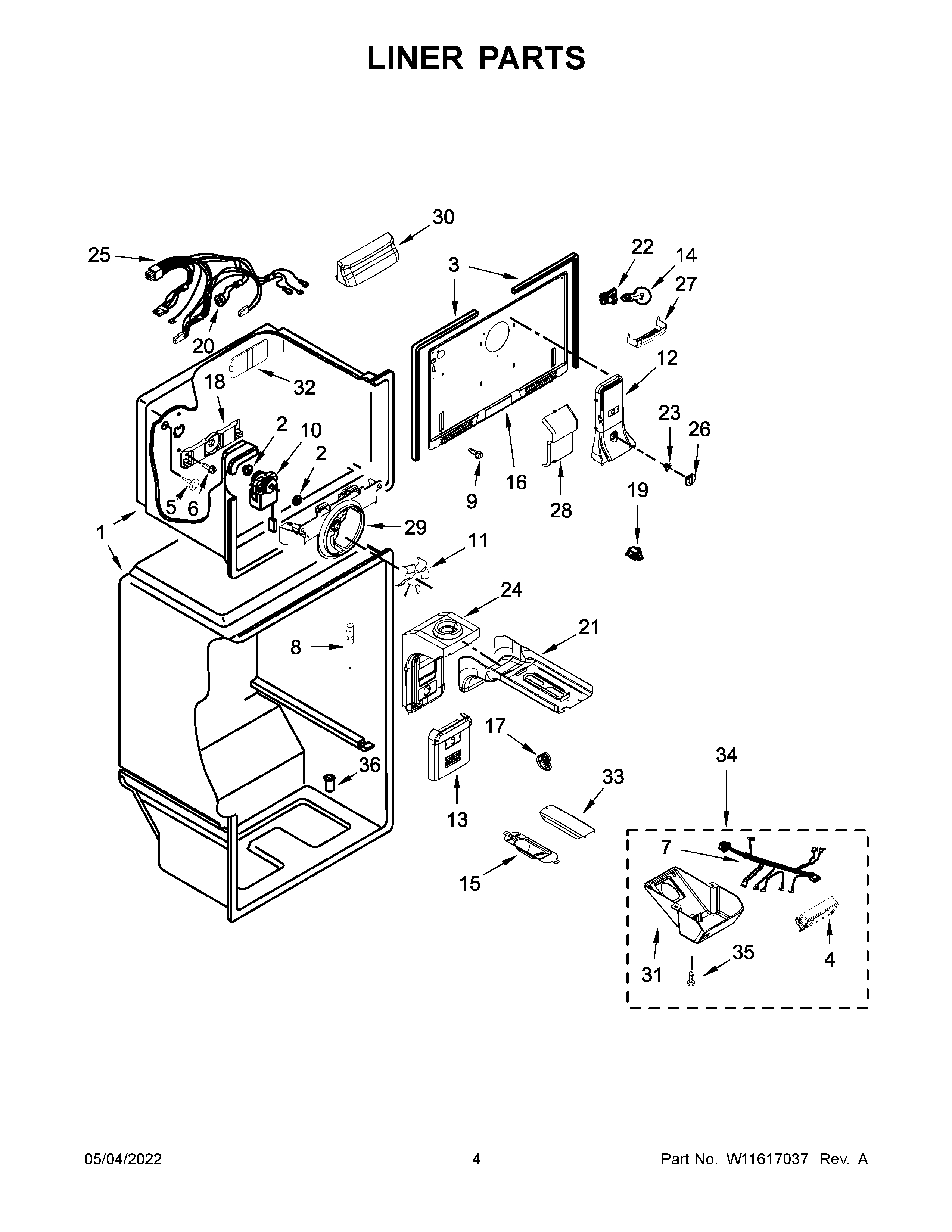

MRT311FFFZ02 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
3	WP2254360 Whirlpool Refrigerator Gasket
4	W11613574-includeCORE Whirlpool W11613574 Refrigerator Electronic Control Board + Core
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	W11441783 Whirlpool Refrigerator Wire Harness
8	WPW10384183 Whirlpool Thermistor
9	WPW10142283 Whirlpool Refrigerator Screw
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10707377 Whirlpool Refrigerator Air Tower
13	W10609502 Whirlpool Refrigerator Cover
14	W11518235 Whirlpool LED Light
15	W10300161 Whirlpool Refrigerator Shield
16	W10617507 Whirlpool Refrigerator Evaporator Cover
17	W11577968 Whirlpool Refrigerator LED Module
18	2254454 Whirlpool Refrigerator Bracket
19	W11123941 Whirlpool Refrigerator Switch
20	CABINET (NOT A SERVICEABLE PART)
21	WPW10305175 Whirlpool Refrigerator Cover
22	W11661565 Whirlpool Refrigerator Socket
23	W11206112 Whirlpool Refrigerator Control
24	W11188815 Whirlpool Refrigerator Diffuser
25	W11609466 Whirlpool Refrigerator Wire Harness
26	W11026417 Whirlpool Refrigerator Air Damper
27	WPW10313918 Whirlpool Refrigerator Light Lens
28	COVER
29	W10850162 Whirlpool Refrigerator Orifice
30	WPW10313917 Whirlpool Refrigerator Housing
31	W10841668 Whirlpool Refrigerator Control Box
32	W10336009 Whirlpool Refrigerator Cover
33	WPW10348614 Whirlpool Refrigerator Cover
34	W11613298 Whirlpool Control Box
35	WP489174 Whirlpool Refrigerator Screw
36	WP2210509 Whirlpool Refrigerator Tub Valve
