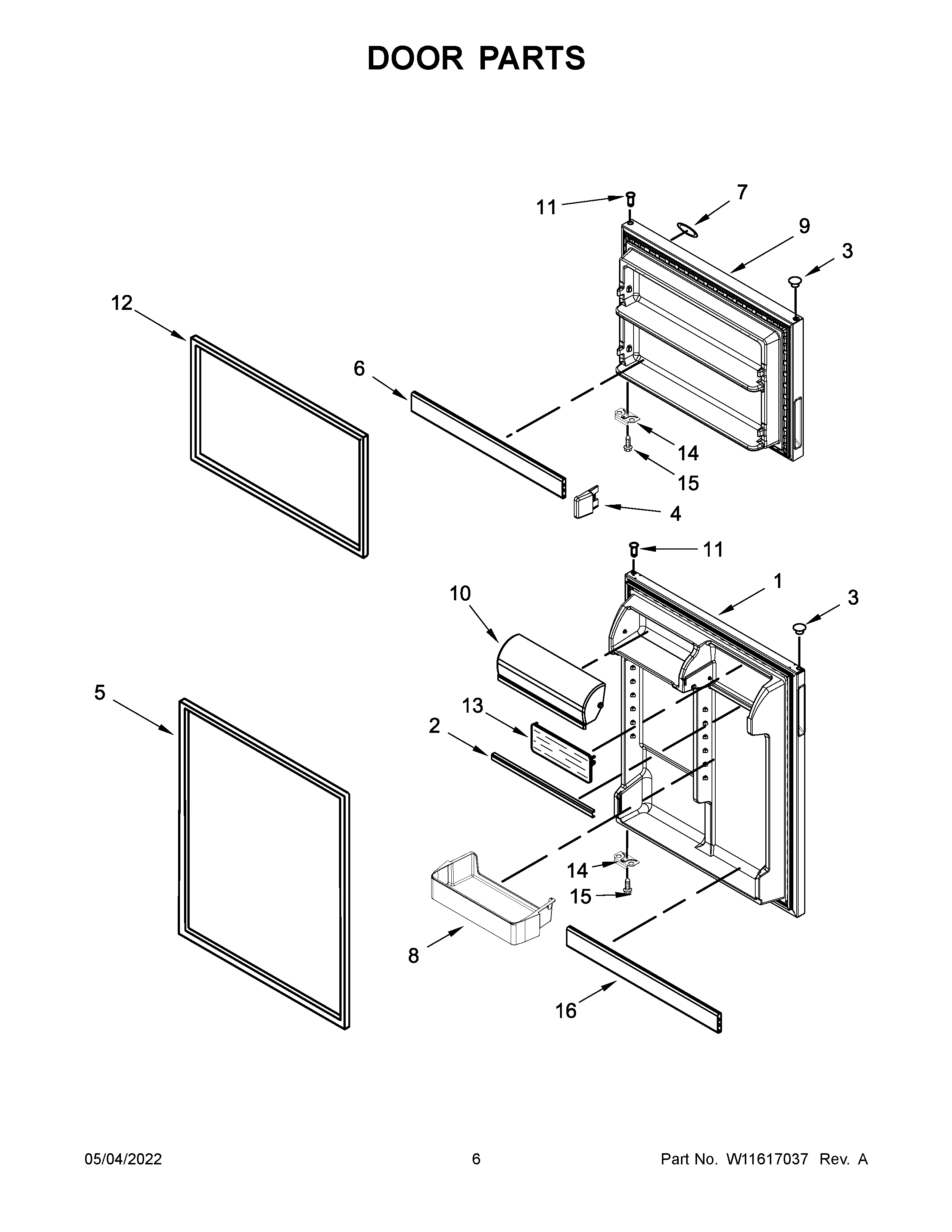

MRT311FFFZ02 04 – DOOR PARTS

MRT311FFFZ02 04 – DOOR PARTS

Written by

in

MRT311FFFZ02 04 – DOOR PARTS

Products

PositionProduct
1LW10856269 Whirlpool Refrigerator Door FIP
2W11678258 Whirlpool Refrigerator Door Trim
3PLUG, HINGE SLEEVE (GREY)
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5W10249195 Whirlpool Refrigerator Door Gasket
6W11596065 Whirlpool Refrigerator Door Trim
7WPW10612925 Whirlpool Microwave Nameplate
8W10803530 Whirlpool Refrigerator Cantilever Bin
9LW10856271 Whirlpool Refrigerator Door FIP
10W11617783 Whirlpool Refrigerator Door Compartment
11WP2314293 Whirlpool Refrigerator Thimble
12W10249196 Whirlpool Refrigerator Gasket FIP
13WP2188236 Whirlpool Refrigerator Shelf Door
14W11745278 Whirlpool Bracket
15WP681249 Whirlpool Screw Assembly
16W11606660 Whirlpool Refrigerator Door Trim
