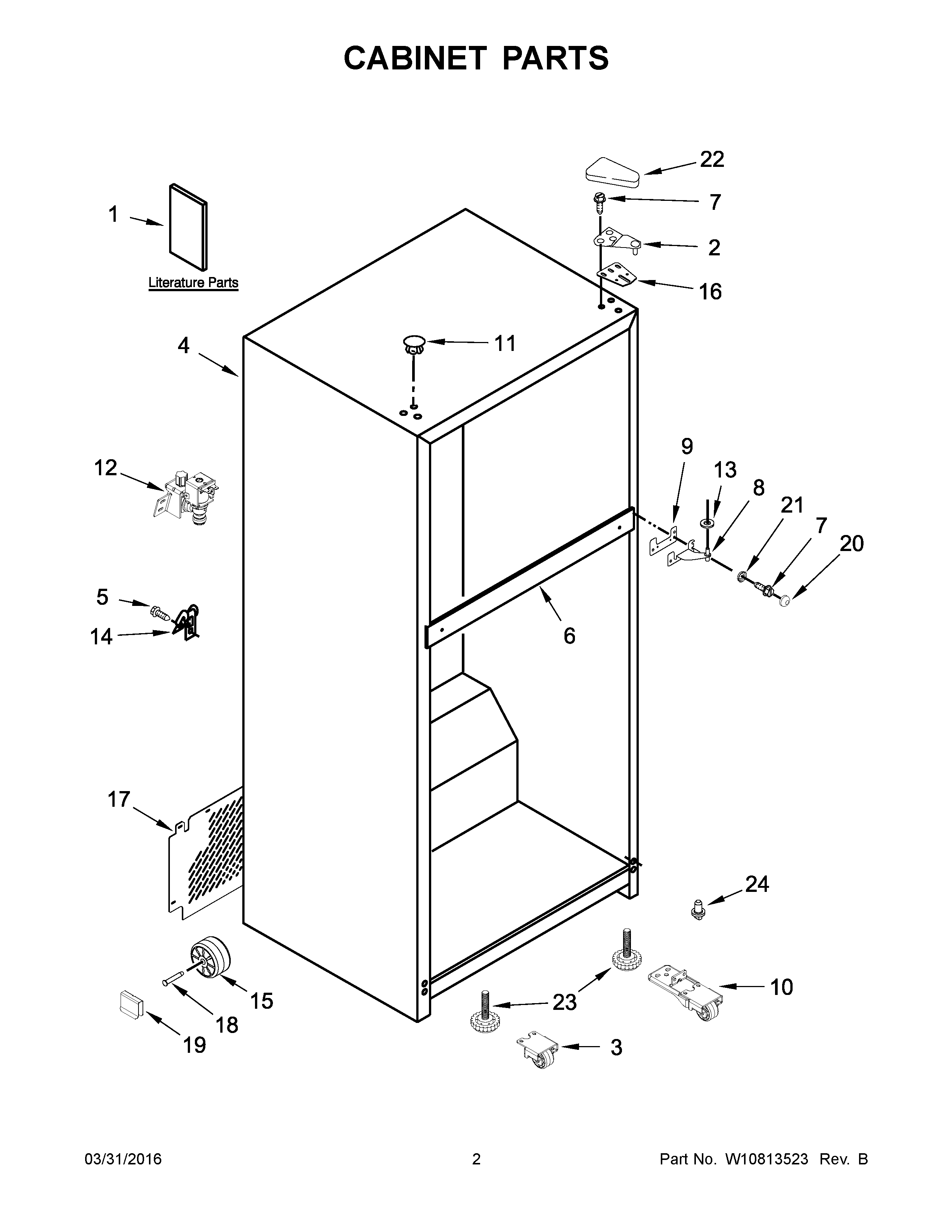

MRT318FZDE01 02 – CABINET PARTSadmin2025-04-26T11:33:32+00:00MRT318FZDE01 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W10680117 |
| 1A | MAY W10680118 |
| 1 | MAY W10770168 |
| 2 | MAY 2261963 |
| 3 | ASSEMBLY, ROLLER |
| 5 | MAY 489442 |
| 6 | LINER (NOT A SERVICEABLE PART) |
| 7 | MAY 489497 |
| 8 | MAY 2254618 |
| 9 | MAY 2183852 |
| 10 | LOWER HINGE AND ROLLER ASSEMBLY |
| 11 | MAY W10520304 |
| 11A | HOLE PLUG (BLACK) |
| 11B | HOLE PLUG (GREY) |
| 12 | MAY W10498995 |
| 13 | WASHER, PLASTIC |
| 14 | MAY 549193 |
| 15 | MAY W10475495 |
| 16 | SHIM, TOP HINGE |
| 17 | COVER, UNIT |
| 18 | Screw |
| 19 | CLIP, ROLLER |
| 20A | CAP, DOME (BLACK) |
| 20B | CAP, DOME (GREY) |
| 20 | CAP, DOME (WHITE) |
| 21 | CAP, WASHER DOME |
| 22B | COVER, HINGE (GREY) |
| 22A | MAY 2213363 |
| 22 | Cover, Hinge (White) |
| 23 | LEVELER |
| 24 | HINGE PIN |
