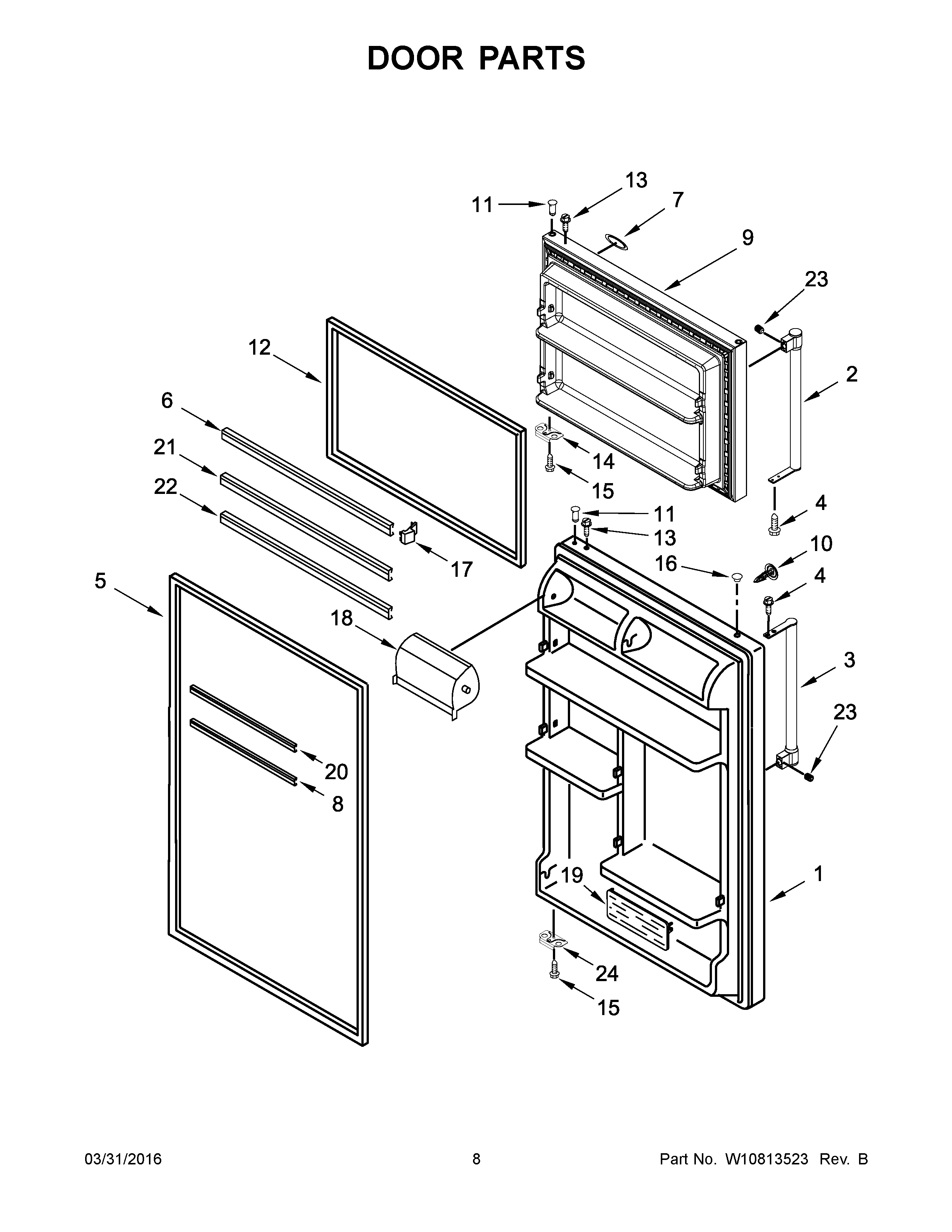

MRT318FZDE01 05 – DOOR PARTS

MRT318FZDE01 05 – DOOR PARTS

Written by

in

MRT318FZDE01 05 – DOOR PARTS

Products

Position	Product
1	MAY W10636410
1A	MAY W10668874
1B	MAY W10638684
2	MAY W10691424
3	MAY W10691396
4	MAY 489357
5B	MAY W10638687
5A	GASKET, DOOR (BLACK)
5	GASKET, DOOR (WHITE)
6	MAY W10667855
7	BADGE
8	MAY W10667848
9B	MAY W10638683
9A	MAY W10668875
9	MAY W10636409
10	MAY W10663736
10A	MAY W10663737
10B	MAY W10663739
11	MAY 2262054
12A	GASKET, DOOR (BLACK)
12B	MAY W10638686
12	GASKET, DOOR (WHITE)
13	MAY 8281206
14	MAY 2189202
15	MAY 488921
16	MAY 2212648
16A	Hole Plug (Black)
16B	PLUG, HOLE (GREY)
17	END CAP, TRIM
18	DOOR, COMPARTMENT
19	DOOR, FLIP UP
20	MAY W10667850
21	MAY W10667851
22	MAY W10667853
23	SET SCREW (SILVER)
24	BRACKET, DOOR STOP
