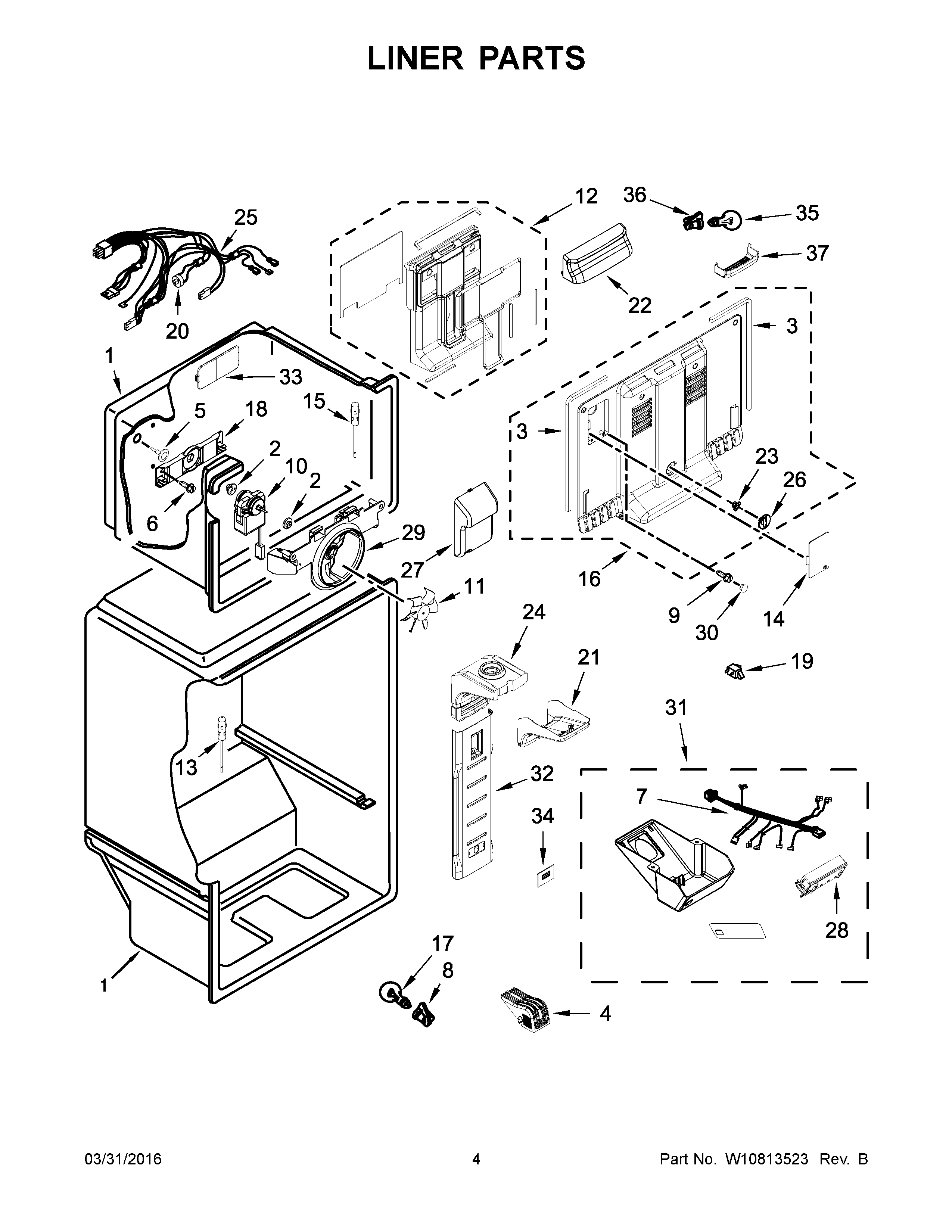

MRT318FZDM01 03 – LINER PARTSadmin2025-04-26T13:04:00+00:00MRT318FZDM01 03 – LINER PARTS
Products
| Position | Product |
|---|
| 2 | MAY 2197380 |
| 3 | GASKET, EVAPORATOR COVER |
| 4 | MAY W10628684 |
| 5 | MAY 941839 |
| 6 | Screw |
| 7 | MAY W10637672 |
| 8 | Socket, Light |
| 9 | MAY 8281232 |
| 10 | MAY 2315539 |
| 11 | MAY 2200509 |
| 12 | ASSEMBLY, EVAPORATOR PLENUM |
| 13 | THERMISTOR, REFRIGERATOR |
| 14 | COVER, HOLE |
| 15 | THERMISTOR, EVAPORATOR |
| 16 | COVER, EVAPORATOR |
| 17 | MAY W10820003 |
| 18 | Bracket, Fan Back |
| 19 | MAY 1118894 |
| 20 | LINER (NOT A SERVICEABLE PART) |
| 21 | COVER, AIR DIFFUSER |
| 22 | HOUSING, FREEZER LIGHTING |
| 23 | BAFFLE, AIR MANUAL |
| 24 | MAY W10677734 |
| 25 | MAY W10646206 |
| 26 | KNOB, AIR CONTROL |
| 27 | MAY W10339203 |
| 28 | MAY W10674683 |
| 29 | MAY W10321162 |
| 30 | COVER, SCREW |
| 31 | MAY W10674685 |
| 32 | MAY W10705785 |
| 33 | CUP, SCREW |
| 34 | GRILLE, AIR FILTER BOTTOM |
| 35 | LAMP, LED |
| 36 | SOCKET, LIGHT |
| 37 | LENS, LIGHT |
