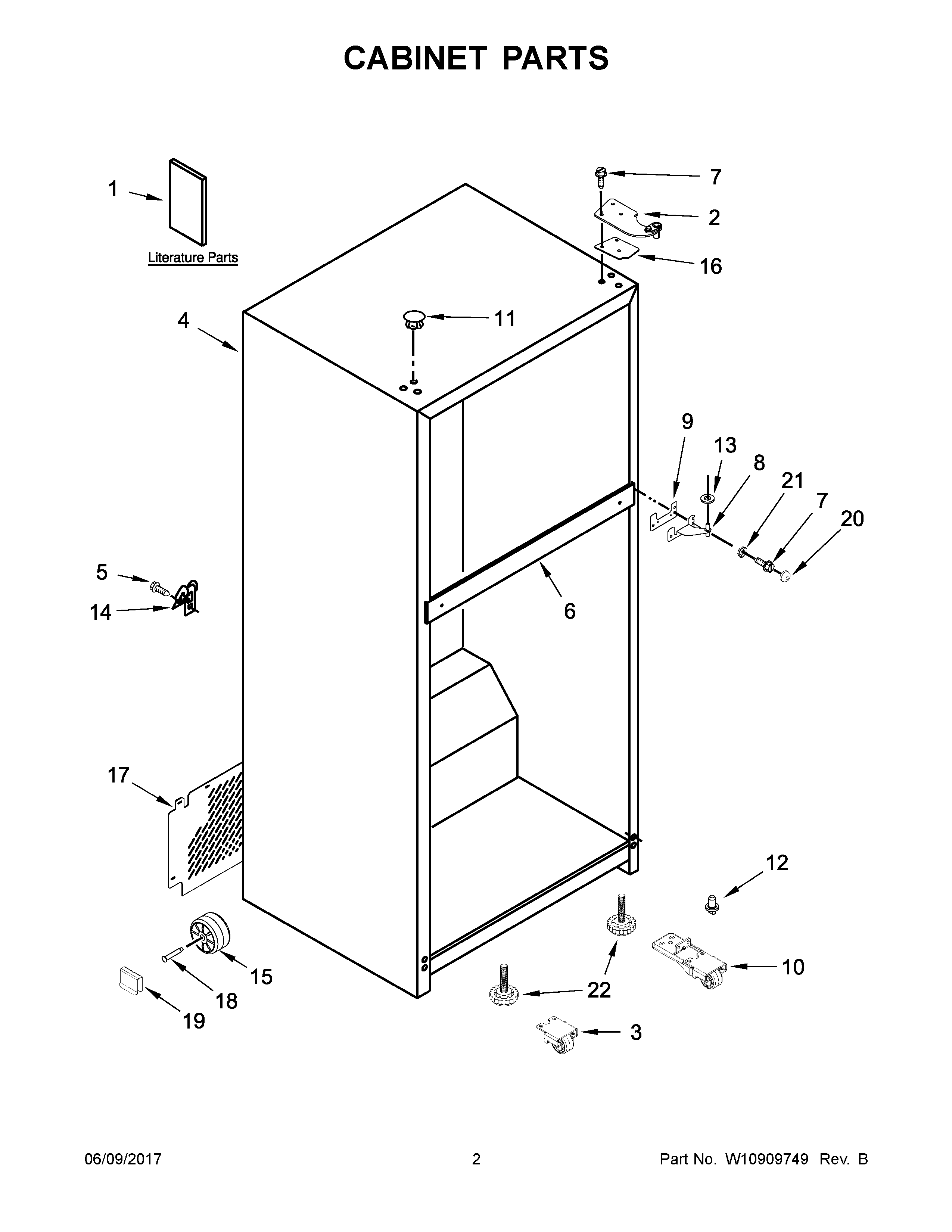

MRT519SFFH00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W11095249
1	TECH SHEET
1B	USE AND CARE GUIDE
2	HINGE (TOP)
3	ASSEMBLY, ROLLER
5	MAY 489442
6	LINER (NOT A SERVICEABLE PART)
7	MAY 489497
8	MAY 2254618
9	MAY 2183852
10	LOWER HINGE AND ROLLER ASSEMBLY
11A	HOLE PLUG (GREY)
11	MAY W10520304
12	HINGE PIN
13	WASHER, PLASTIC
14	MAY 549193
15	MAY W10475495
16	MAY W10883637
17	COVER, UNIT
18	Screw
19	CLIP, ROLLER
20	CAP, DOME (GREY)
21	CAP, WASHER DOME
22	LEVELER
