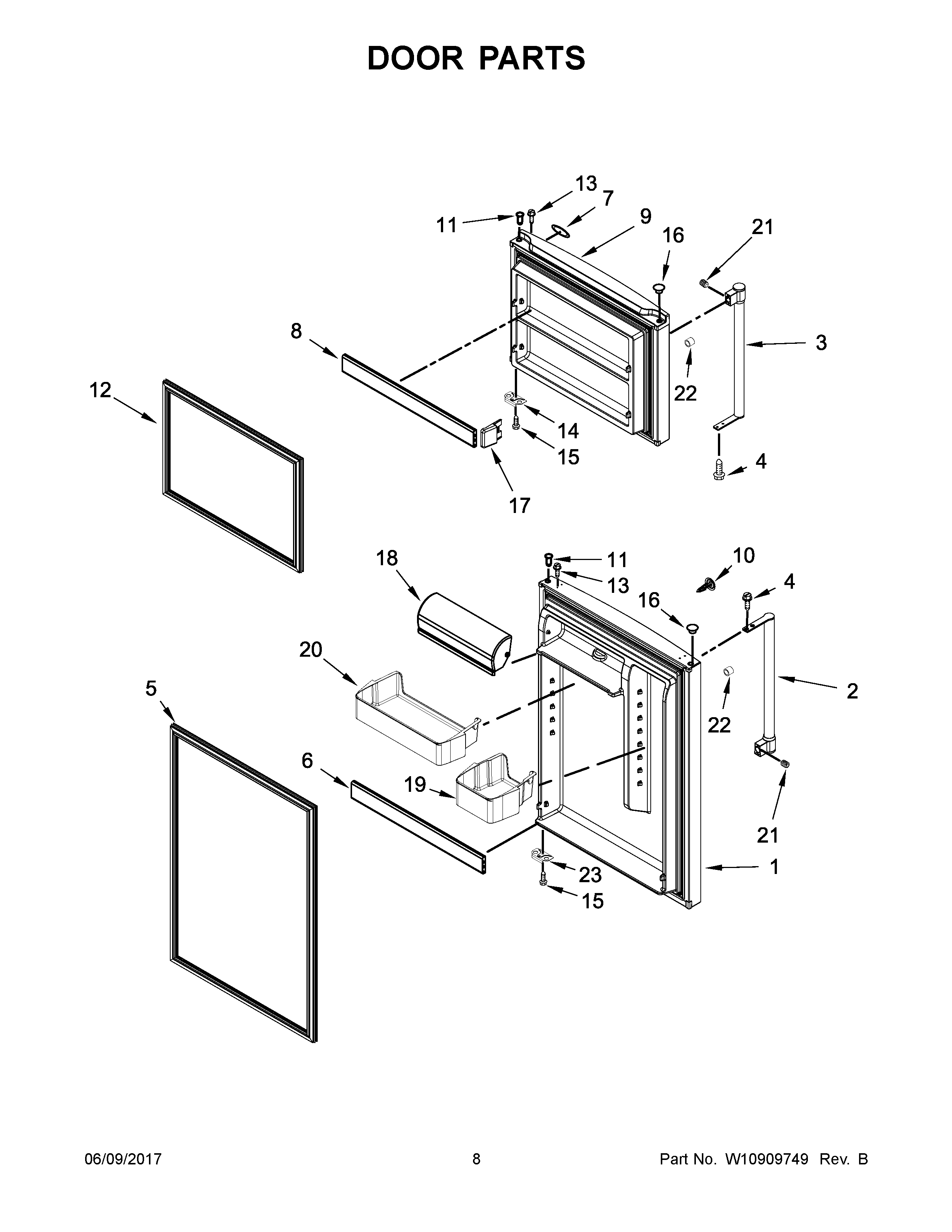

MRT519SFFZ00 05 – DOOR PARTSadmin2025-04-26T13:05:51+00:00MRT519SFFZ00 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1A | REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (STAINLESS) |
| 1 | MAY W10636232 |
| 2A | HANDLE, DOOR (NEPTUNE FROST) |
| 2 | HANDLE, DOOR (WHITE) |
| 3A | HANDLE, DOOR (NEPTUNE FROST) |
| 3 | HANDLE, DOOR (WHITE) |
| 4 | MAY 489357 |
| 5 | GASKET, DOOR (WHITE) |
| 5A | GASKET, DOOR (GREY) |
| 6 | MAY W10592149 |
| 7 | BADGE |
| 8 | MAY W10592151 |
| 9 | MAY W10636404 |
| 9A | FREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAINLESS) |
| 10 | MAY W10663736 |
| 10A | MAY W10663739 |
| 11A | MAY W10492022 |
| 11 | MAY W10492018 |
| 12 | GASKET, DOOR (WHITE) |
| 12A | GASKET, DOOR (GREY) |
| 13 | MAY 8281206 |
| 14 | MAY 2189202 |
| 15 | MAY 8533904 |
| 16A | PLUG, HOLE (GREY) |
| 16 | MAY 2212648 |
| 17 | MAY W10592153 |
| 18 | MAY W10601425 |
| 19 | BIN SHORT |
| 20 | BIN, LARGE DOOR |
| 21 | SET SCREW (SILVER) |
| 22 | STUD SCREW |
| 23 | BRACKET, DOOR STOP |
