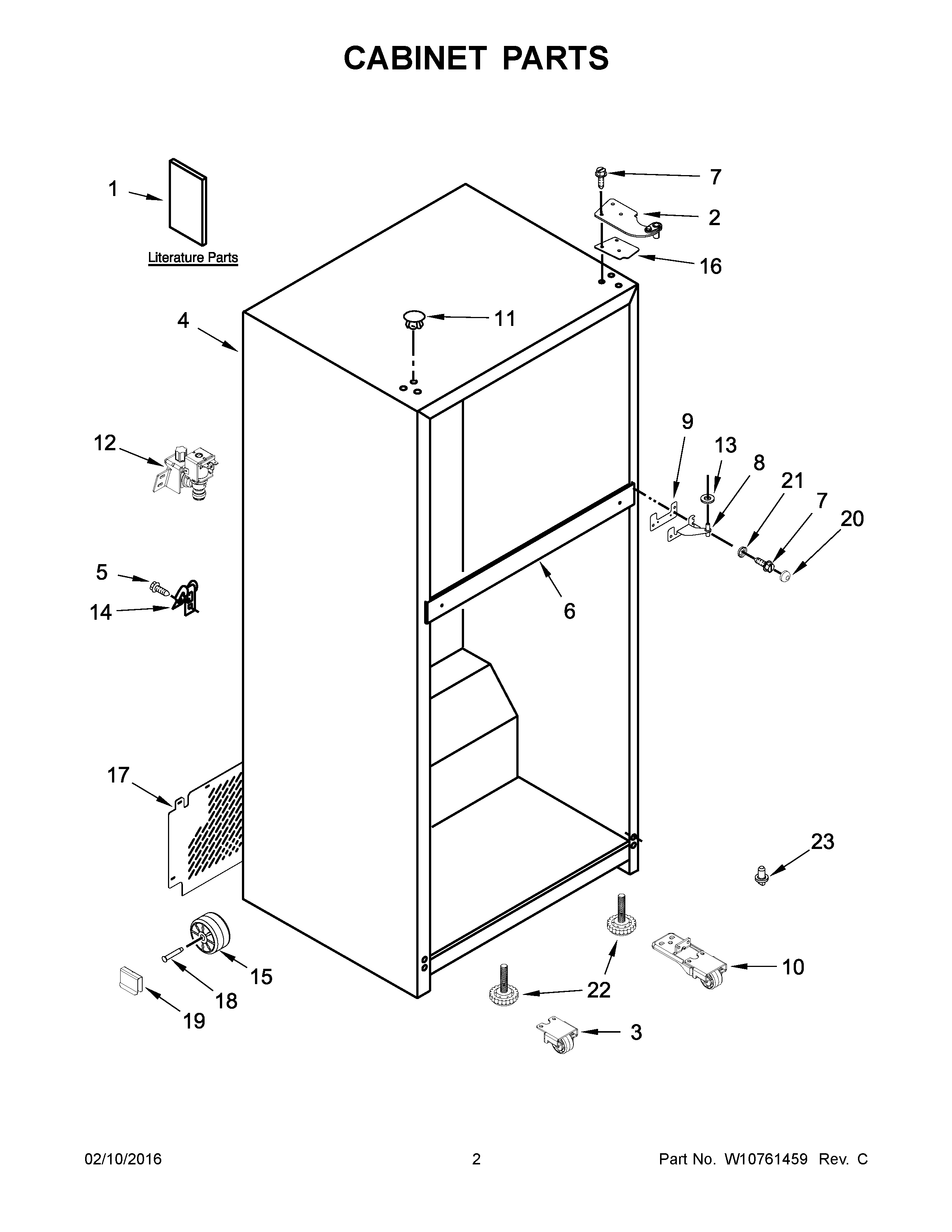

MRT519SZDH00 02 – CABINET PARTS

MRT519SZDH00 02 – CABINET PARTS

Written by

in

MRT519SZDH00 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10685260
1MAY W10669164
1AMAY W10680118
2HINGE (TOP)
3ASSEMBLY, ROLLER
5MAY 489442
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2254618
9MAY 2183852
10LOWER HINGE AND ROLLER ASSEMBLY
11BHOLE PLUG (GREY)
11AHOLE PLUG (BLACK)
11MAY W10520304
12MAY W10498995
13WASHER, PLASTIC
14MAY 549193
15MAY W10475495
16MAY W10338247
17COVER, UNIT
18Screw
19CLIP, ROLLER
20ACAP, DOME (BLACK)
20CAP, DOME (WHITE)
20BCAP, DOME (GREY)
21CAP, WASHER DOME
22LEVELER
23HINGE PIN
