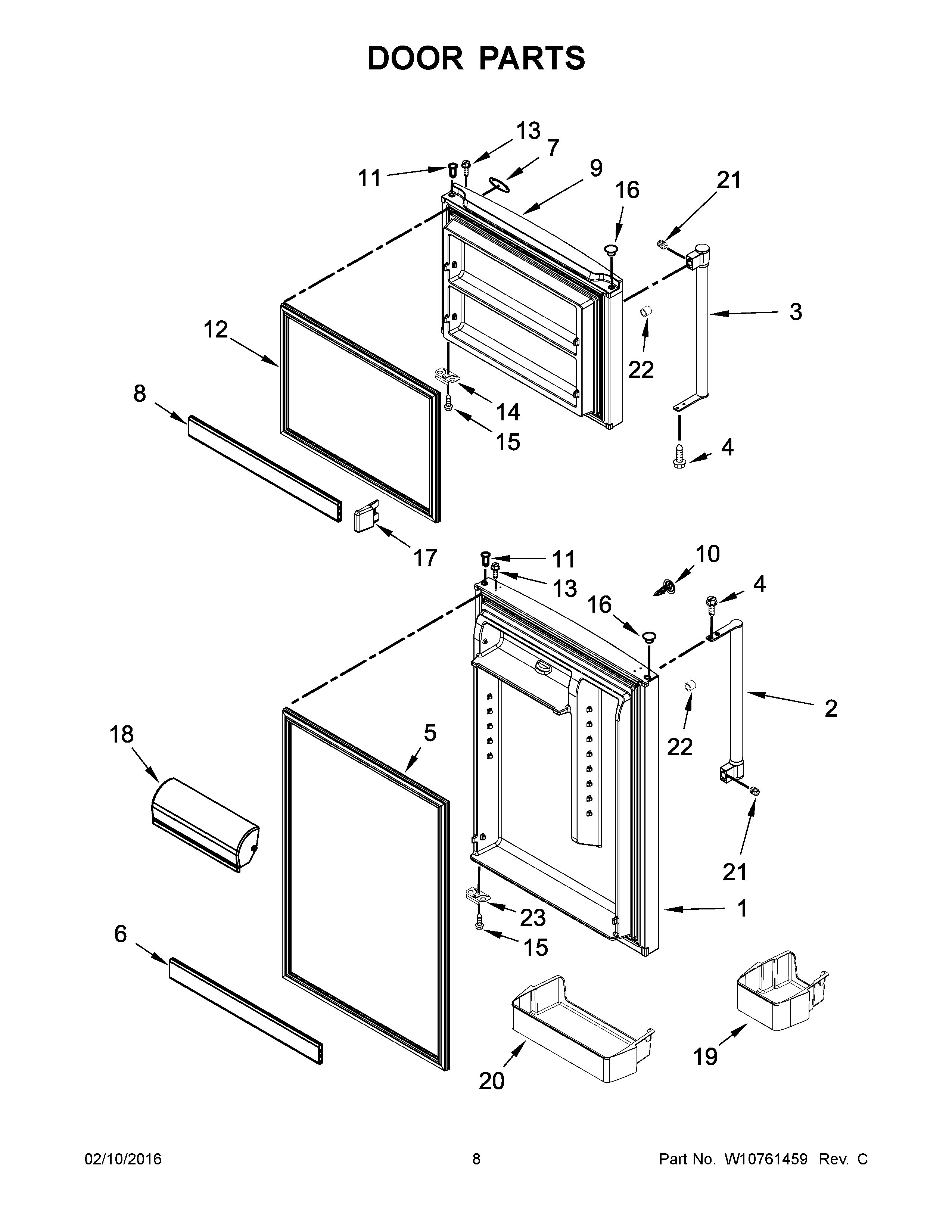

MRT519SZDM00 05 – DOOR PARTS

Products

Position	Product
1B	MAY W10672972
1A	MAY W10672970
1	MAY W10636232
2	HANDLE, REFRIGERATOR (NEPTUNE FROST)
3	HANDLE, FREEZER (NEPTUNE FROST)
4	MAY 489357
5B	MAY W10638687
5A	GASKET, DOOR (BLACK)
5	GASKET, DOOR (WHITE)
6	MAY W10592149
7	BADGE
8	MAY W10592151
9B	MAY W10672966
9	MAY W10636404
9A	MAY W10672964
10A	MAY W10663737
10	MAY W10663736
10B	MAY W10663739
11B	MAY W10492022
11	MAY W10492018
11A	MAY W10334042
12A	GASKET, DOOR (BLACK)
12	GASKET, DOOR (WHITE)
12B	MAY W10638686
13	MAY 8281206
14	MAY 2189202
15	MAY 488921
16A	Hole Plug (Black)
16B	PLUG, HOLE (GREY)
16	MAY 2212648
17	MAY W10592153
18	MAY W10601425
19	BIN SHORT
20	BIN, LARGE DOOR
21	SET SCREW (SILVER)
22	STUD SCREW
23	BRACKET, DOOR STOP
