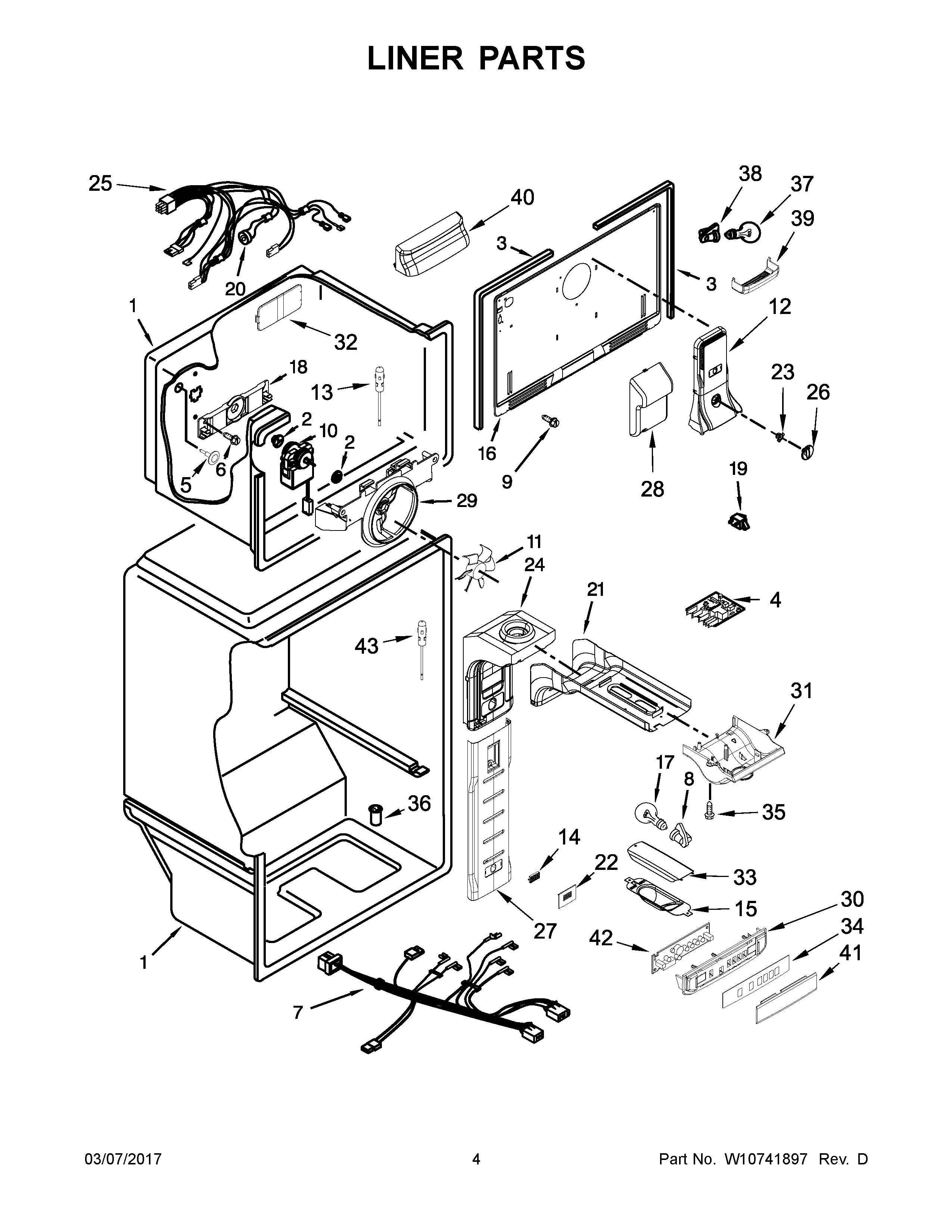

MRT711BZDH00 03 – LINER PARTS

Products

Position	Product
2	MAY 2197380
3	MAY 2254360
4	MAY W10734129
5	MAY 941839
6	Screw
7	WIRE ASSEMBLY, CONTROL BOX
8	Socket, Light
9	SCREW (WHITE)
10	MAY 2315539
11	MAY 2200509
12	AIR TOWER ASSEMBLY, FC
13	THERMISTOR, EVAPORATOR
14	FILTER, AIR
15	MAY W10300161
16	COVER, EVAPORATOR
17	MAY W10820003
18	Bracket, Fan Back
19	MAY 1118894
20	LINER (NOT A SERVICEABLE PART)
21	MAY W10305175
22	GRILLE, AIR FILTER BOTTOM
23	BAFFLE, AIR MANUAL
24	AIR DIFFUSER BOTTOM
25	ASSEMBLY, FREEZER WIRE
26	KNOB, AIR CONTROL
27	MAY W10705785
28	MAY W10339203
29	MAY W10321162
30	MAY W10705218
31	MAY W10316942
32	CUP, SCREW
33	LIGHT COVER, RC
34	MAY W10704853
35	MAY 489174
36	MAY 2210509
37	LAMP, LED
38	SOCKET, LIGHT
39	LENS, LIGHT
40	HOUSING, FREEZER LIGHTING
41	LENS, FASCIA
42	MAY W10341559
43	THERMISTOR
