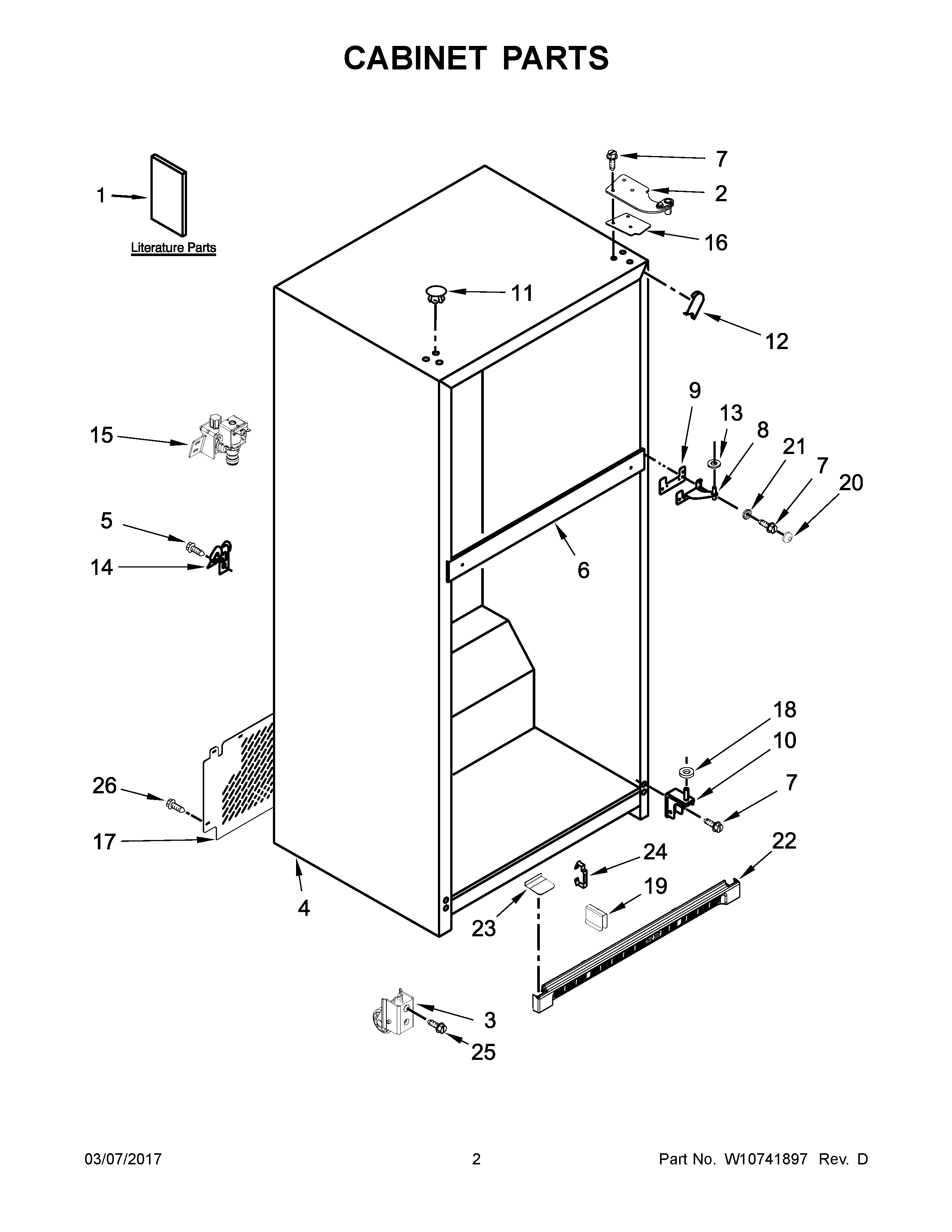

MRT711BZDM00 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10908025
1AMAY W10747676
1TECH SHEET
2HINGE (TOP)
3ASSEMBLY, ROLLER
5MAY 489442
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2254618
9MAY 2183852
10MAY 2254473
11BHOLE PLUG (GREY)
11MAY W10520304
11AHOLE PLUG (BLACK)
12BFILLER, CORNER (GREY)
12ACORNER FILLER (BLACK)
12CORNER FILLER (WHITE)
13WASHER, PLASTIC
14MAY 549193
15MAY W10498995
16MAY W10883637
17MAY W10609390
18Washer (1/16)
19CLIP, ROLLER
20CAP, DOME (WHITE)
20ACAP, DOME (BLACK)
20BCAP, DOME (GREY)
21CAP, WASHER DOME
22BGRILLE (GREY)
22AGRILLE (BLACK)
22GRILLE (WHITE)
23COVER, TOE GRILLE (WHITE)
23ACOVER, TOE GRILLE (BLACK)
23BCOVER, TOE GRILLE (GREY)
24MAY 2254385
25MAY W10142287
26MAY 2262176
