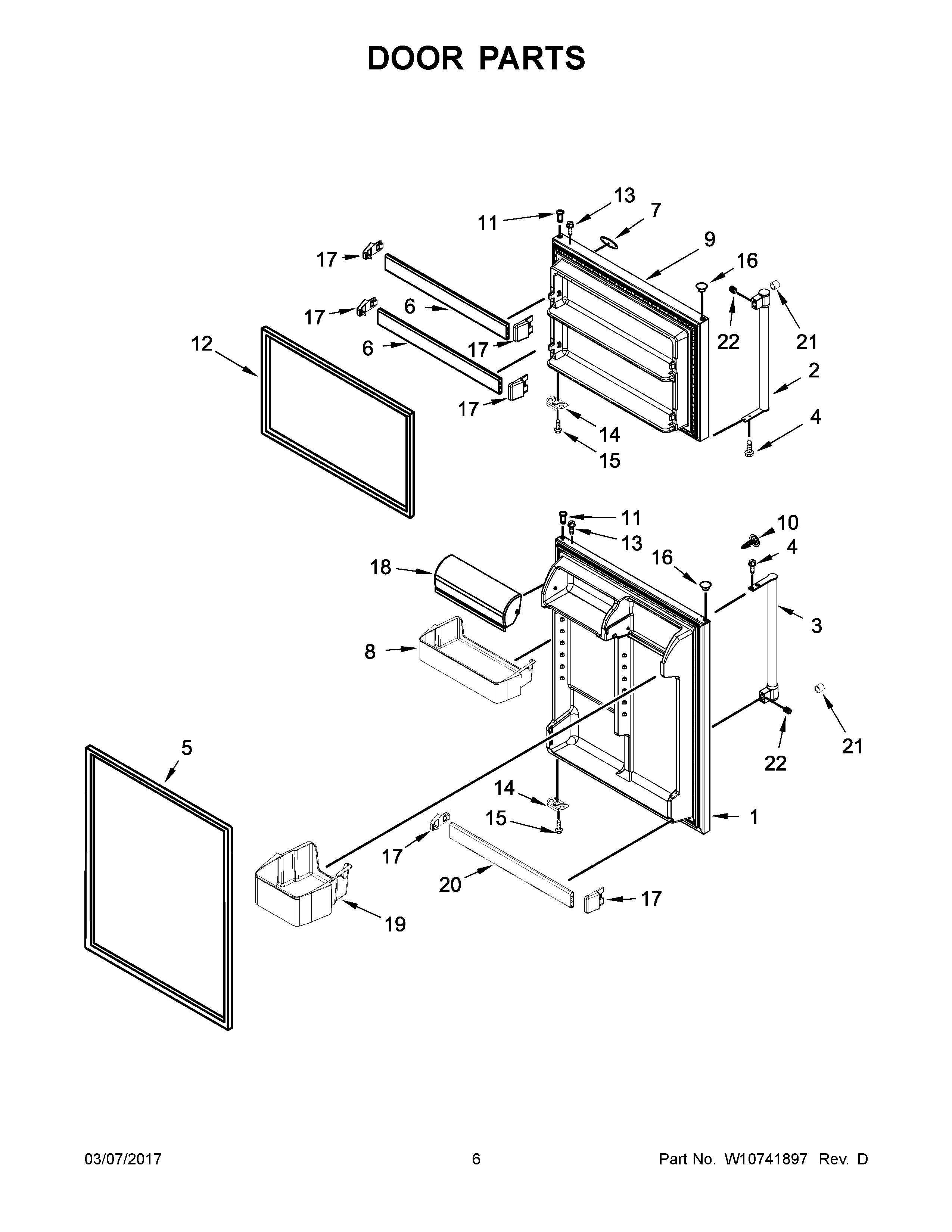

MRT711BZDM00 04 – DOOR PARTS

MRT711BZDM00 04 – DOOR PARTS

Written by

in

MRT711BZDM00 04 – DOOR PARTS

Products

PositionProduct
1MAY W10651924
1BREFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (STAINLESS)
1AREFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (BLACK)
2HANDLE, FREEZER (NEPTUNE FROST)
3HANDLE, REFRIGERATOR (NEPTUNE FROST)
4SCREW
5MAY W10692652
5AMAY 2202882
5BGASKET, DOOR (GREY)
6MAY W10592150
7BADGE
8BIN, LARGE DOOR
9MAY W10651927
9BFREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAINLESS)
9AFREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLACK)
10MAY W10663736
10AMAY W10663737
10BMAY W10663739
11MAY W10334042
12AMAY 2214969
12MAY W10692653
12BGASKET, DOOR (GREY)
13MAY 8281206
14MAY 2189202
15MAY 489276
16AHole Plug (Black)
16BPLUG, HOLE (GREY)
16MAY 2212648
17MAY W10592153
18MAY W10601425
19BIN, MEDIUM
20MAY W10592148
21MAY W10511911
22SET SCREW (SILVER)
