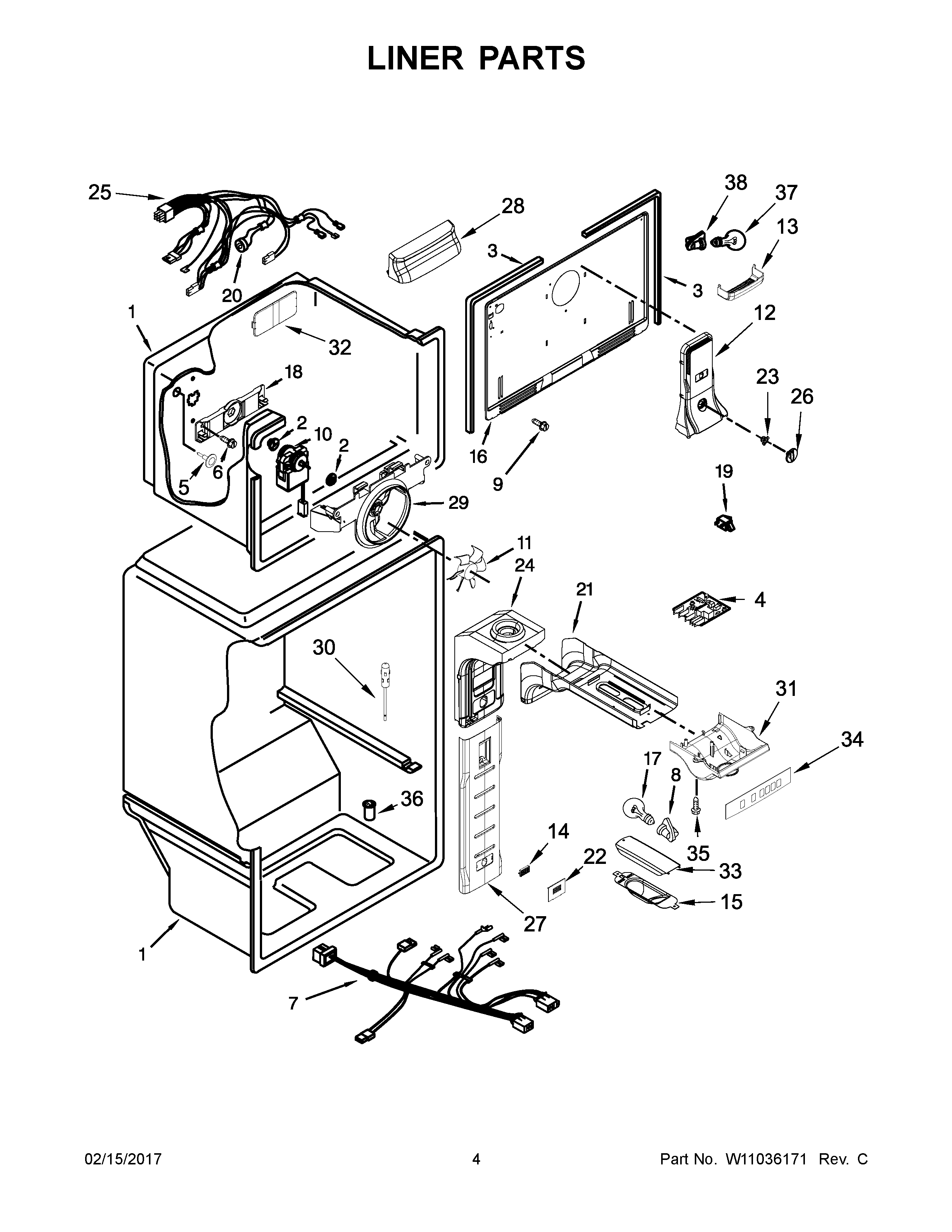

MRT711SMFB00 03 – LINER PARTS

MRT711SMFB00 03 – LINER PARTS

Written by

in

MRT711SMFB00 03 – LINER PARTS

Products

Position	Product
2	MAY 2197380
3	MAY 2254360
4	CONTROL, USER INTERFACE
5	MAY 941839
6	Screw
7	MAY W10878977
8	Socket, Light
9	SCREW (WHITE)
10	MAY 2315539
11	MAY 2200509
12	AIR TOWER, FC
13	LENS, LIGHT
14	FILTER, AIR
15	MAY W10300161
16	MAY W10617507
17	MAY W10820003
18	Bracket, Fan Back
19	MAY 1118894
20	LINER (NOT A SERVICEABLE PART)
21	MAY W10305175
22	GRILLE, AIR FILTER BOTTOM
23	BAFFLE, AIR MANUAL
24	MAY W10885143
25	ASSEMBLY, FREEZER WIRE
26	KNOB, AIR CONTROL
27	MAY W10705785
28	HOUSING, FREEZER LIGHTING
29	MAY W10321162
30	THERMISTOR
31	BOX, CONTROL
32	CUP, SCREW
33	LIGHT COVER, RC
34	OVERLAY
35	MAY 489174
36	MAY 2210509
37	LAMP, LED
38	SOCKET, LIGHT
