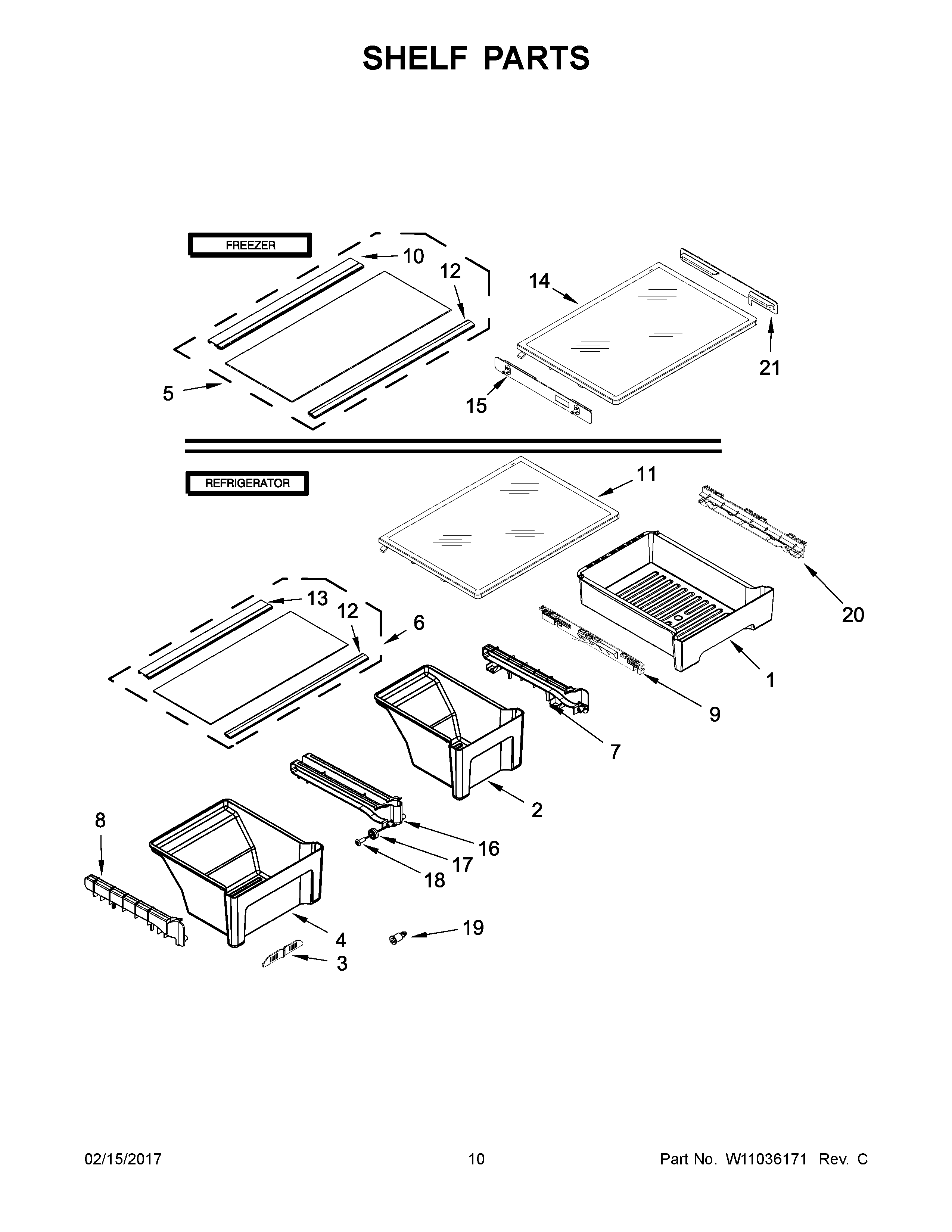

MRT711SMFW00 06 – SHELF PARTSadmin2025-04-26T13:05:51+00:00MRT711SMFW00 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | PAN, MEAT |
| 2 | MAY W10662133 |
| 3 | CONTROL, HUMIDITY |
| 4 | MAY W10663427 |
| 5 | ASSEMBLY, SHELF CRISPER |
| 6 | ASSEMBLY, SHELF RC |
| 7 | MAY W10694151 |
| 8 | MAY W10694149 |
| 9 | RAIL, TRACK (LEFT HAND) |
| 10 | MAY W10691459 |
| 11 | MAY W10579374 |
| 12 | TRIM, SHELF FRONT |
| 13 | MAY W10730166 |
| 14 | MAY W10601431 |
| 15 | SUPPORT, FREEZER SHELF (LEFT SIDE) |
| 16 | MAY W10694150 |
| 17 | ROLLER, PAN |
| 18 | SCREW (STAINLESS) |
| 19 | AXLE, ROLLER |
| 20 | RAIL, TRACK (RIGHT HAND) |
| 21 | SUPPORT, FREEZER SHELF (RIGHT SIDE) |
