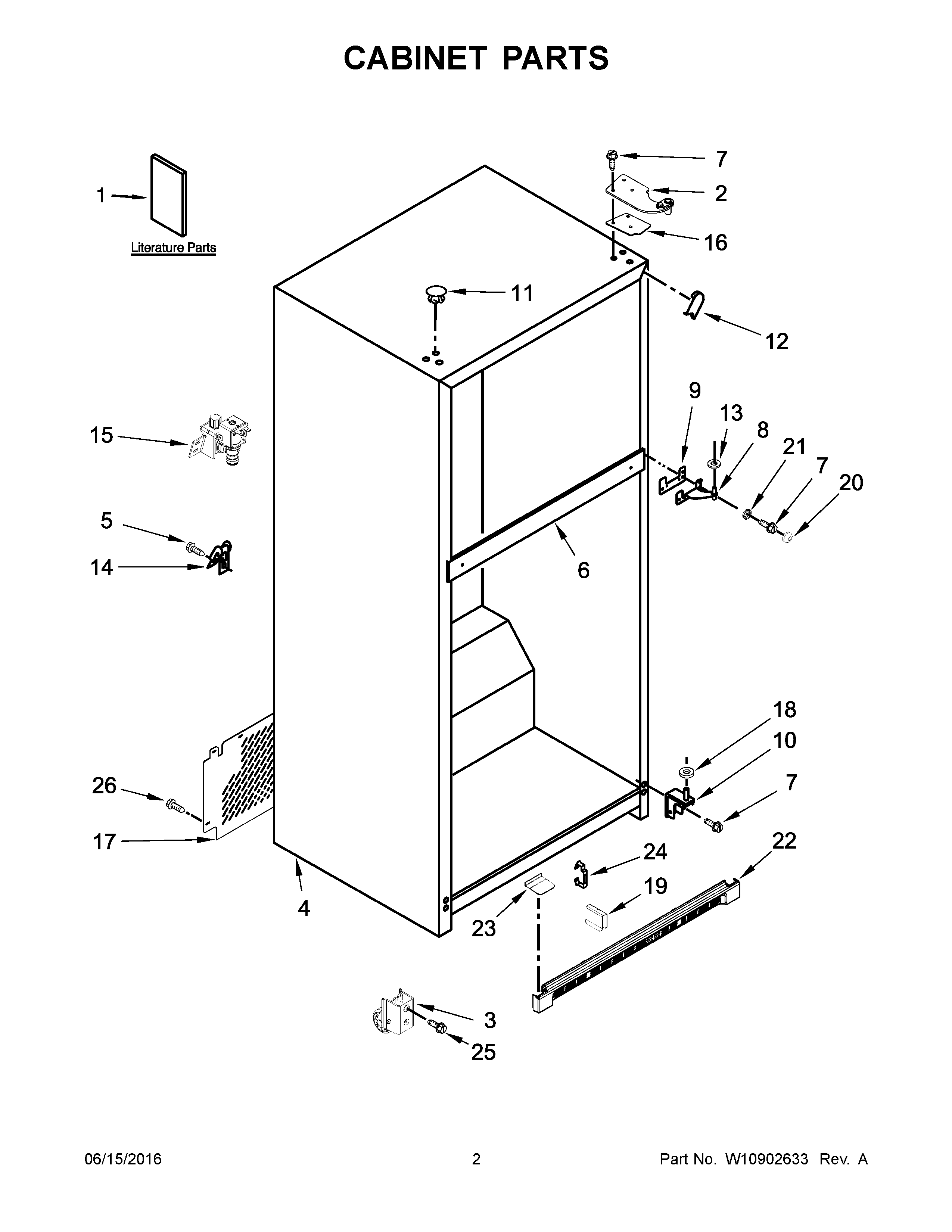

MRT711SMFZ00 02 – CABINET PARTS

MRT711SMFZ00 02 – CABINET PARTS

Written by

in

MRT711SMFZ00 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1B	MAY W10856261
1A	MAY W10889291
2	HINGE (TOP)
3	ASSEMBLY, ROLLER
5	MAY 489442
6	LINER (NOT A SERVICEABLE PART)
7	MAY 489497
8	MAY 2254618
9	MAY 2183852
10	MAY 2254473
11	HOLE PLUG (GREY)
12	FILLER, CORNER (GREY)
13	WASHER, PLASTIC
14	MAY 549193
15	MAY W10498995
16	MAY W10338247
17	MAY W10609390
18	Washer (1/16)
19	CLIP, ROLLER
20	CAP, DOME (GREY)
21	CAP, WASHER DOME
22	GRILLE (GREY)
23	COVER, TOE GRILLE (GREY)
24	MAY 2254385
25	MAY W10142287
26	MAY 2262176
