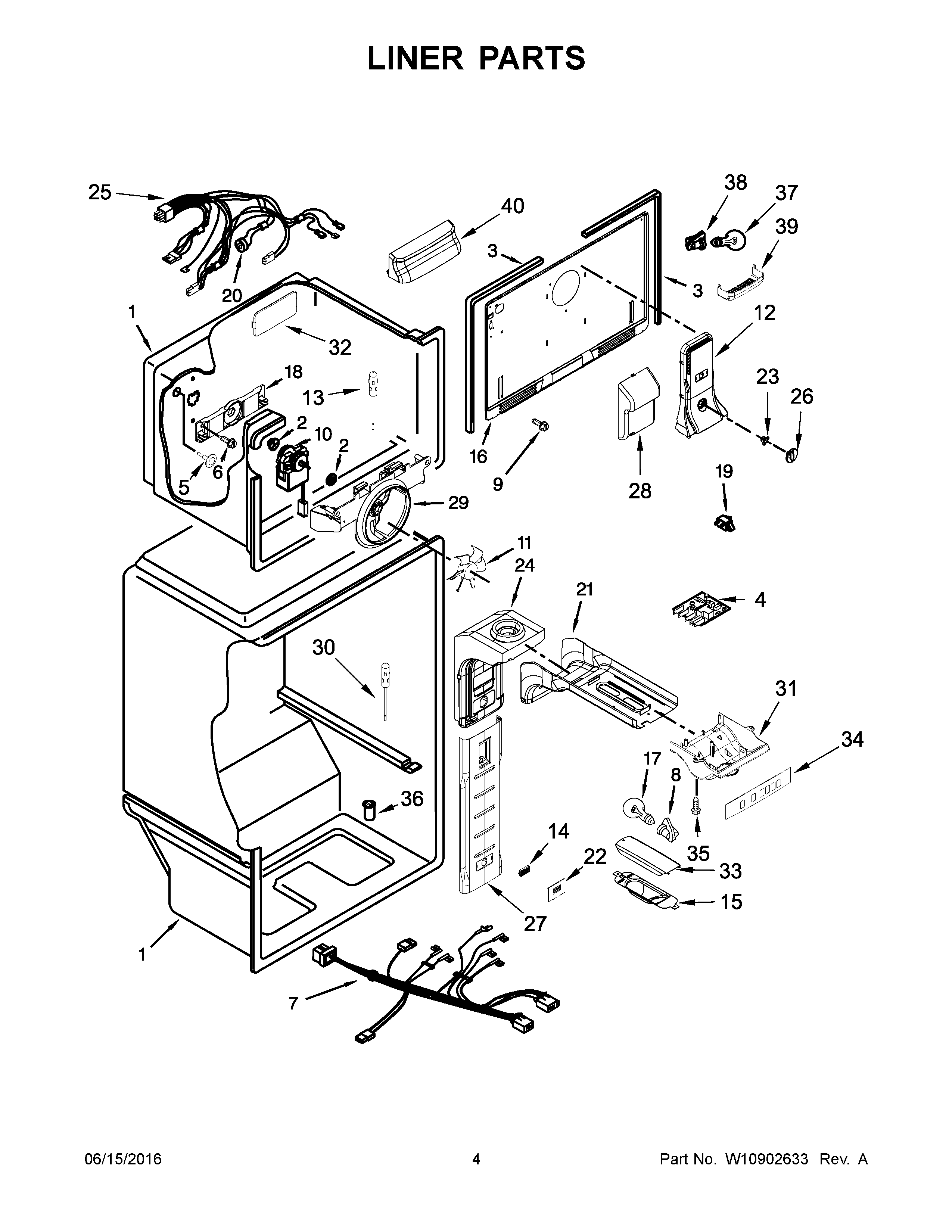

MRT711SMFZ00 03 – LINER PARTSadmin2025-04-26T13:06:52+00:00MRT711SMFZ00 03 – LINER PARTS
Products
| Position | Product |
|---|
| 2 | MAY 2197380 |
| 3 | MAY 2254360 |
| 4 | MAY W10880270 |
| 5 | MAY 941839 |
| 6 | Screw |
| 7 | MAY W10878977 |
| 8 | Socket, Light |
| 9 | SCREW (WHITE) |
| 10 | MAY 2315539 |
| 11 | MAY 2200509 |
| 12 | AIR TOWER ASSEMBLY, FC |
| 13 | THERMISTOR, EVAPORATOR |
| 14 | FILTER, AIR |
| 15 | MAY W10300161 |
| 16 | MAY W10617507 |
| 17 | MAY W10820003 |
| 18 | Bracket, Fan Back |
| 19 | MAY 1118894 |
| 20 | LINER (NOT A SERVICEABLE PART) |
| 21 | MAY W10305175 |
| 22 | GRILLE, AIR FILTER BOTTOM |
| 23 | BAFFLE, AIR MANUAL |
| 24 | MAY W10885143 |
| 25 | ASSEMBLY, FREEZER WIRE |
| 26 | KNOB, AIR CONTROL |
| 27 | MAY W10705785 |
| 28 | MAY W10716791 |
| 29 | MAY W10321162 |
| 30 | THERMISTOR |
| 31 | BOX, CONTROL |
| 32 | CUP, SCREW |
| 33 | LIGHT COVER, RC |
| 34 | OVERLAY |
| 35 | MAY 489174 |
| 36 | MAY 2210509 |
| 37 | LAMP, LED |
| 38 | SOCKET, LIGHT |
| 39 | LENS, LIGHT |
| 40 | HOUSING, FREEZER LIGHTING |
