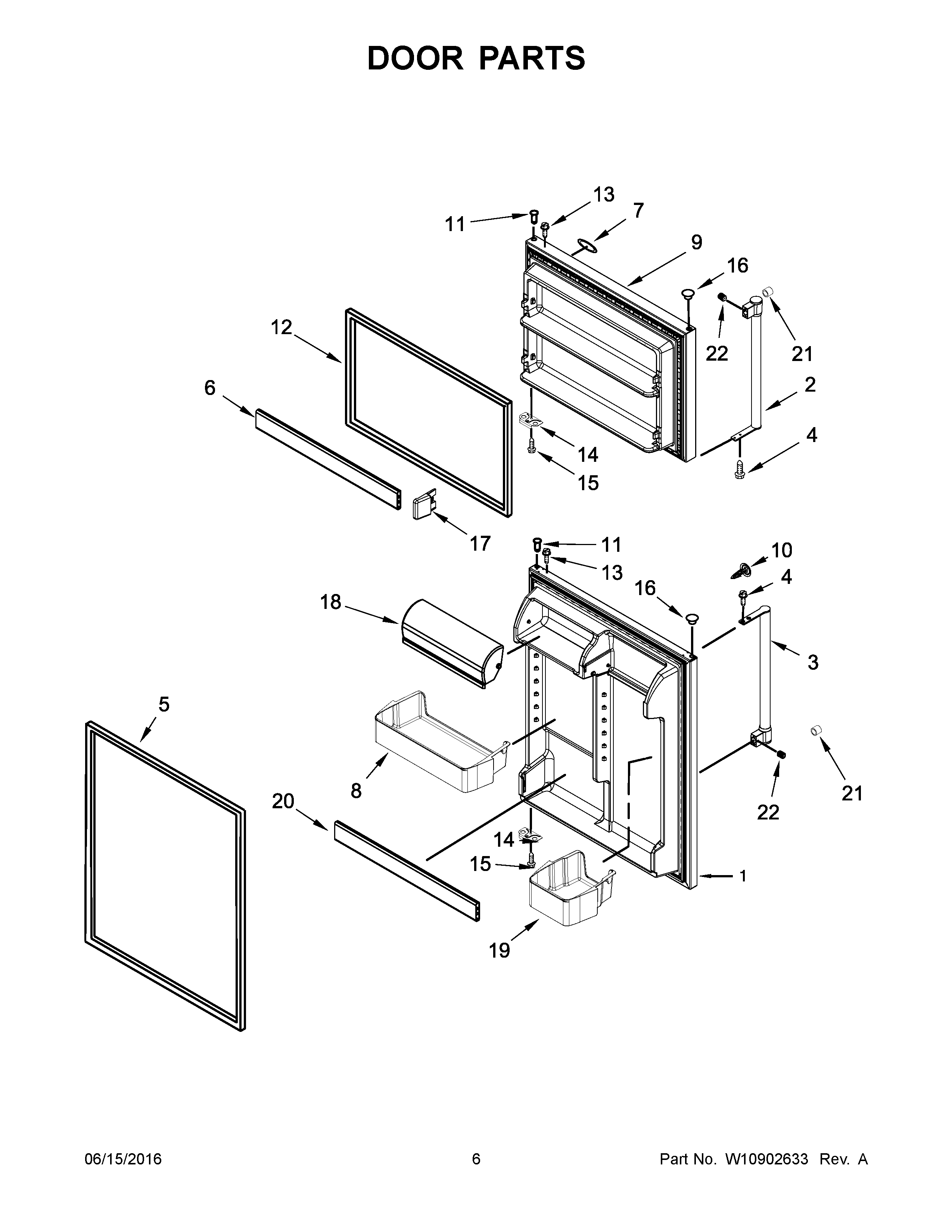

MRT711SMFZ00 04 – DOOR PARTS

Products

PositionProduct
1MAY W10856289
2HANDLE, DOOR (NEPTUNE FROST)
3HANDLE, DOOR (NEPTUNE FROST)
4SCREW
5GASKET, DOOR (GREY)
6MAY W10592150
7BADGE
8BIN, LARGE DOOR
9MAY W10856291
10MAY W10663739
11MAY W10334042
12GASKET, DOOR (GREY)
13MAY 8281206
14MAY 2189202
15MAY 489276
16PLUG, HOLE (GREY)
17MAY W10592153
18MAY W10601425
19BIN, MEDIUM
20MAY W10592148
21MAY W10511911
22SET SCREW (SILVER)
