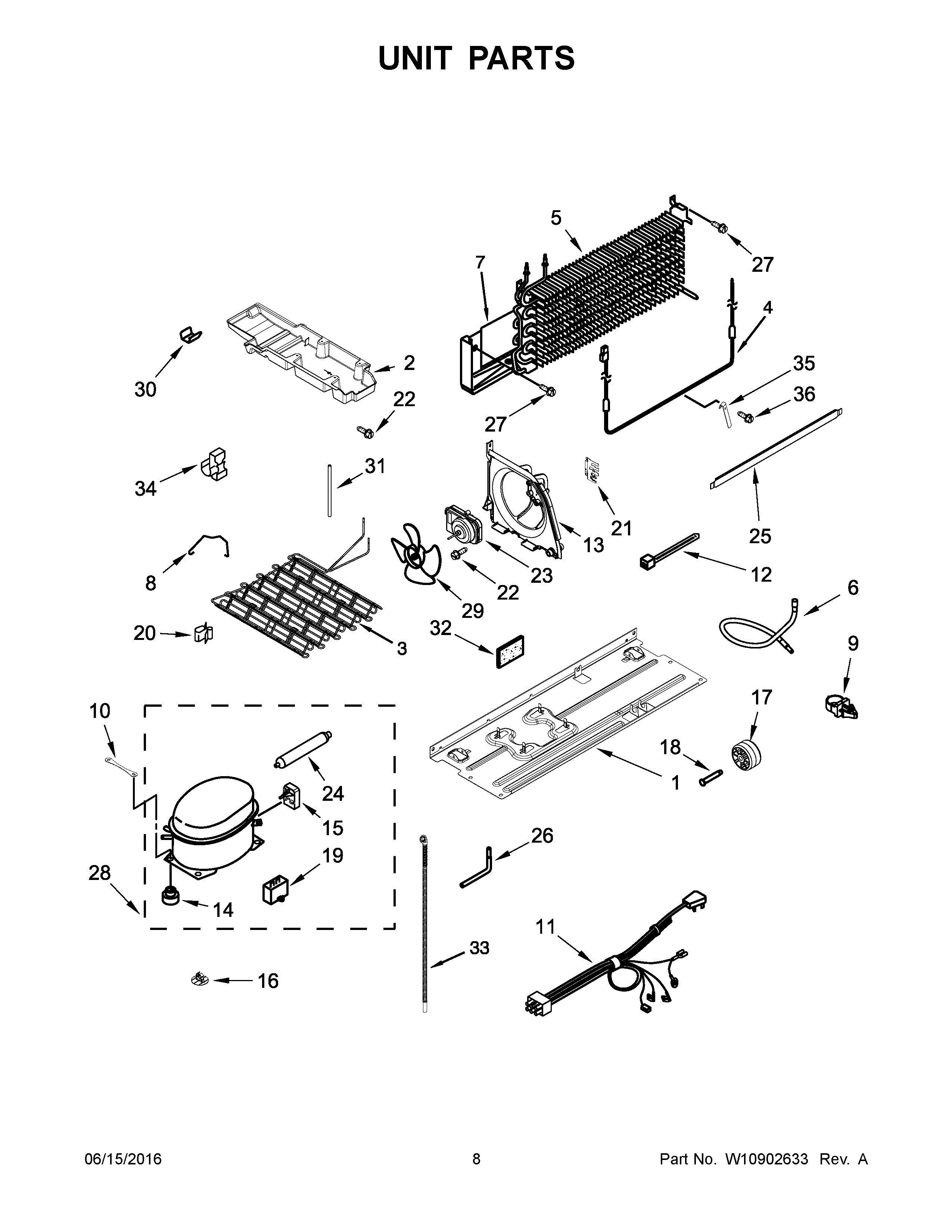

MRT711SMFZ00 05 – UNIT PARTS

MRT711SMFZ00 05 – UNIT PARTS

Written by

in

MRT711SMFZ00 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	PLATE, UNIT MOUNTING
2	TRAY, DRAIN
3	MAY W10609393
4	MAY W10316428
5	ASSEMBLY, EVAPORATOR
6	TUBE, SUCTION
7	MAY W10314195
8	MAY W10174384
9	Clip, Harness (1)
10	MAY W10236396
11	HARNESS, UNIT
12	MAY 2263990
13	MAY W10609392
14	Grommet (4)
15	DEVICE, START
16	MAY W10815861
17	MAY W10475495
18	MAY 2179826
19	MAY W10590083
20	MAY 939054
21	BRACKET, EVAPORATOR
22	MAY W10622701
23	MAY W10527155
24	DRIER
25	MAY W10300902
26	MAY VS20001
27	MAY 489442
28	MAY W10445423
29	MAY W10817071
30	CLIP, CONDENSER
31	VALVE, DRAIN
32	MAY 2215468
33	MAY W10475011
34	MAY 2326941
35	MAY 2258429
36	MAY 489478
