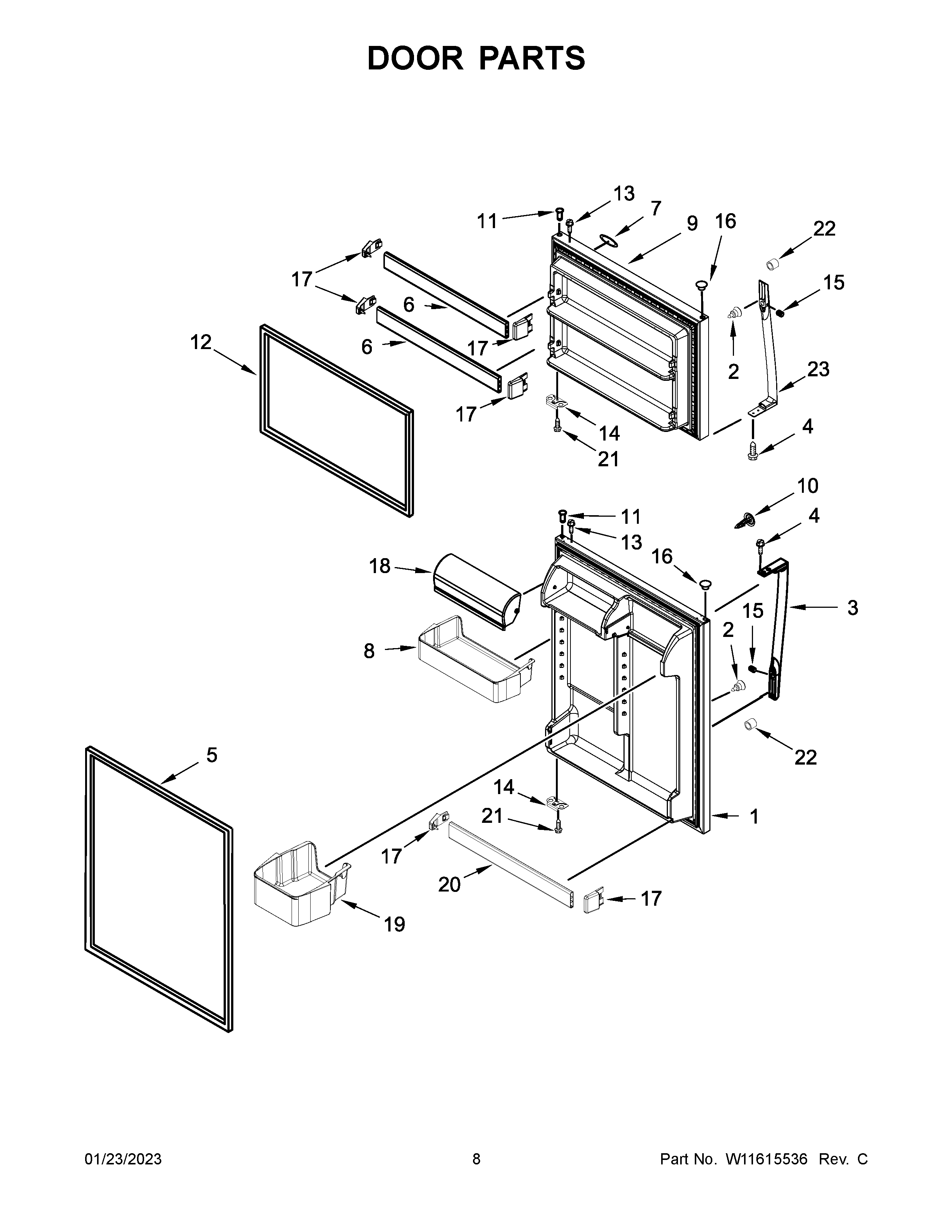

MRT711SMFZ02 05 – DOOR PARTS

MRT711SMFZ02 05 – DOOR PARTS

Written by

in

MRT711SMFZ02 05 – DOOR PARTS

Products

PositionProduct
1LW10856289 Whirlpool Refrigerator FIP Door
2WP489357 Whirlpool Recessed Screw
3W10904702 Whirlpool Refrigerator Handle
4WPW10170540 Whirlpool Screw
5W10249195 Whirlpool Refrigerator Door Gasket
6W10592150 Whirlpool Refrigerator Door Trim
7WPW10612925 Whirlpool Microwave Nameplate
8WPW10308868 Whirlpool Refrigerator Door Bin
9LW10856291 Whirlpool Refrigerator Door FIP
10W10830982 Whirlpool Handle Plug
11W11189115 Whirlpool Refrigerator Thimble
12W10249196 Whirlpool Refrigerator Gasket FIP
13WP8281206 Whirlpool Refrigerator Screw
14W11745278 Whirlpool Bracket
15SCREW, SET
16PLUG, HINGE SLEEVE (GREY)
17W10838039 Whirlpool Shelf Retainer Bar
18W11675283 Whirlpool Comp Door
19WPW10308869 Whirlpool Door Bin
20W11126062 Whirlpool Refrigerator Door Trim
21WP681249 Whirlpool Screw Assembly
22WPW10511911 Whirlpool Refrigerator Bushing
23W10904685 Whirlpool Handle Assembly
