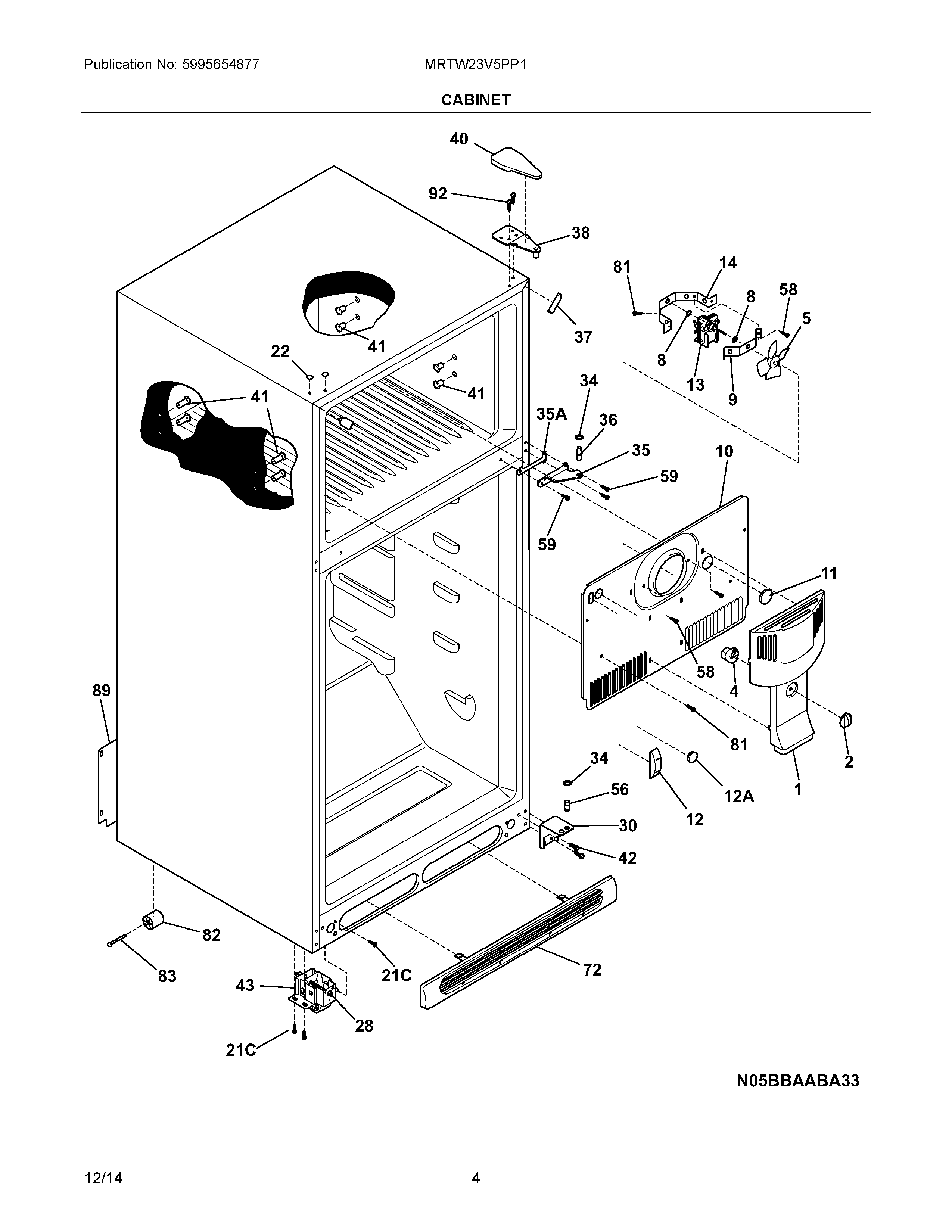

MRTW23V5PP1 03 – CABINET

MRTW23V5PP1 03 – CABINET

Written by

in

MRTW23V5PP1 03 – CABINET

Products

Position	Product
NIA	240433204 Frigidaire Refrigerator Screw
NIA	240568606 Frigidaire Refrigerator Coil Cover Seal
NIAA	241586701 Frigidaire Refrigerator Plug
NI	240494001 Frigidaire Refrigerator Plug Button
NIB	HARNESS-WIRING, FREEZER
NIA	241500303 Frigidaire Refrigerator Screw
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NIA	215474201 Frigidaire Refrigerator Washer
NI	218990901 Frigidaire Clip
1	WCI 240355407
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	WCI 240313612
11	5303208309 Frigidaire Refrigerator Plug Hole
12	242193602 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
13	WCI 241832301
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A	240336802 Frigidaire Refrigerator Hinge Spacer
35	WCI 240313806
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	241839405 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	COVER-ACCESS, W/LABEL
92	241710601 Frigidaire Refrigerator Screw
