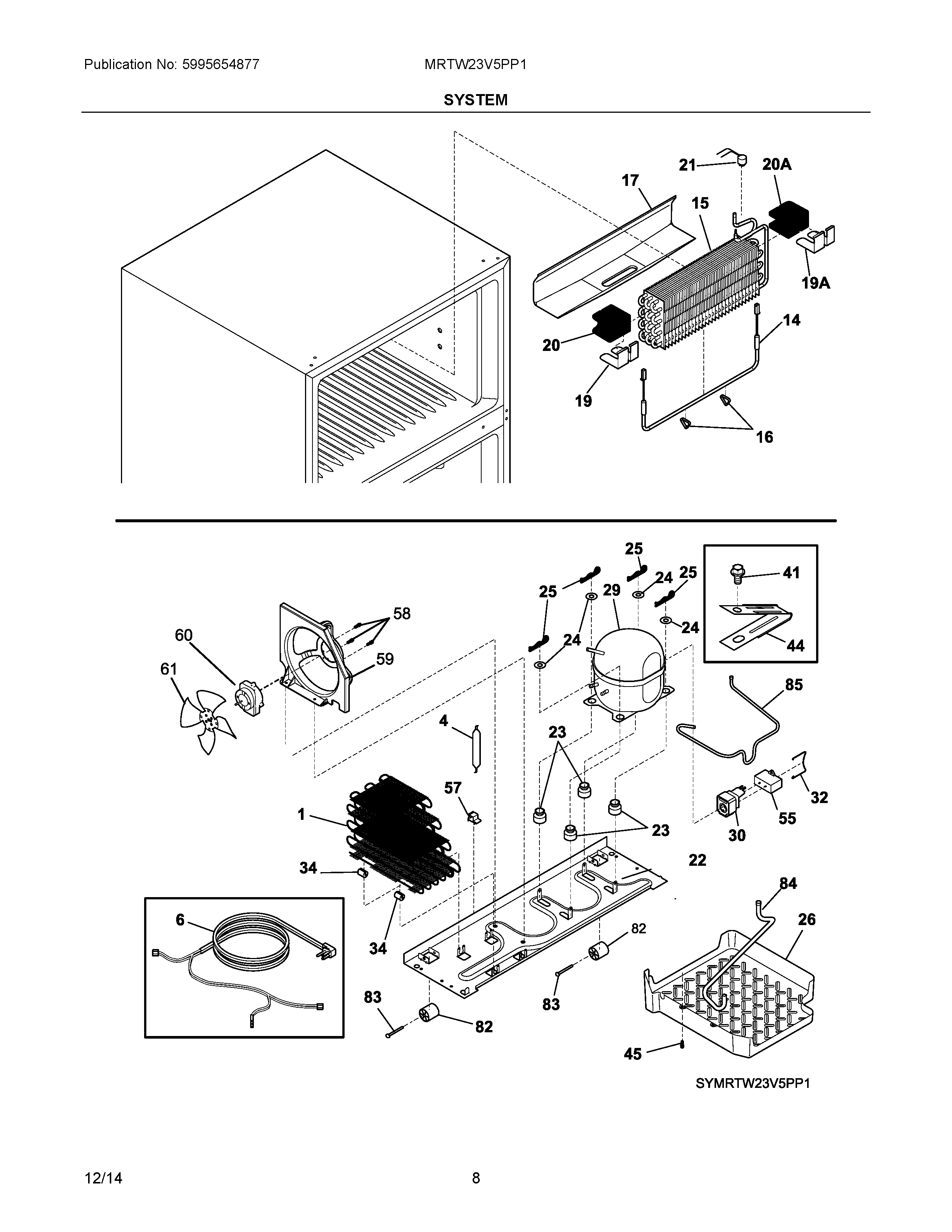

MRTW23V5PP1 05 – SYSTEM

MRTW23V5PP1 05 – SYSTEM

Written by

in

MRTW23V5PP1 05 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NI240396801 Frigidaire Refrigerator Tube Clamp
NI5303918330 Frigidaire Refrigerator Heat Exchanger Kit OS1
NID242081702 Frigidaire Refrigerator Wiring Harness
NIBHARNESS-WIRING, FREEZER
NIABRACKET ASSEMBLY, RECEPTACLE, SERVICE CORD
NICHARNESS, WIRING, MACHINE COMPT
NIB218709101 Frigidaire Refrigerator Handle Mounting Screw
1241785405 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6CORD-SERVICE, BRITAIN
14DEFROST HEATER, 220 V
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
19242320401 Frigidaire Refrigerator Shield
20A5304527430 Frigidaire Refrigerator Block
205304527429 Frigidaire Refrigerator Block
22241665504 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241697603 Frigidaire Defrost Pan
29WCI 240550927
30241707714 Frigidaire Refrigerator PTC Starter
32CLAMP, ELEC CONT MTG, COMPRESSOR
34240405201 Frigidaire Refrigerator Grommet
455304455650 Frigidaire Refrigerator Screw
55218909908 Frigidaire Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59SHROUD, COND FAN MOTOR
60MOTOR-CONDENSER FAN, 220-240V
61240524102 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84TUBE-DRAIN, LOWER
85241856901 Frigidaire Refrigerator Tube-Connector
