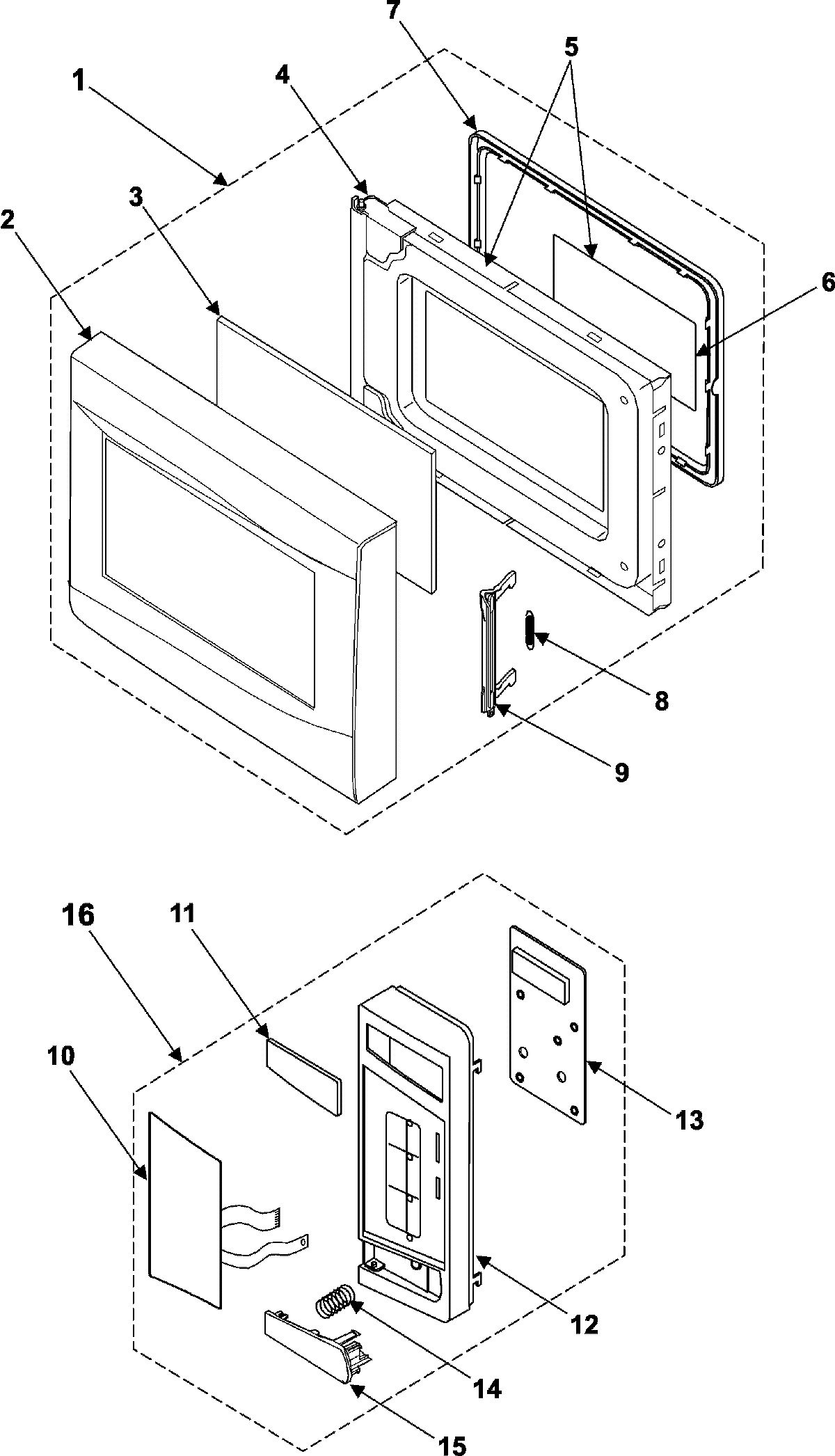

MS1040BB 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

Position	Product
2	MAY DE64-00527B
3	MAY DE67-20197C
4	MAY DE94-00075B
5	MAY DE94-00073B
6	MAY DE01-00118A
7	MAY DE64-40012A
8	MAY DE61-70128A
9	MAY DE64-40006F
10	MAY DE34-00143B
11	MAY DE64-00533A
12	MAY DE64-00528B
13	MAY YRAS2LED100
14	DE61-70076A Samsung Spring-Button
15	MAY DE64-00532B
16	SEE NOTE GROUND WIRE, GREEN
