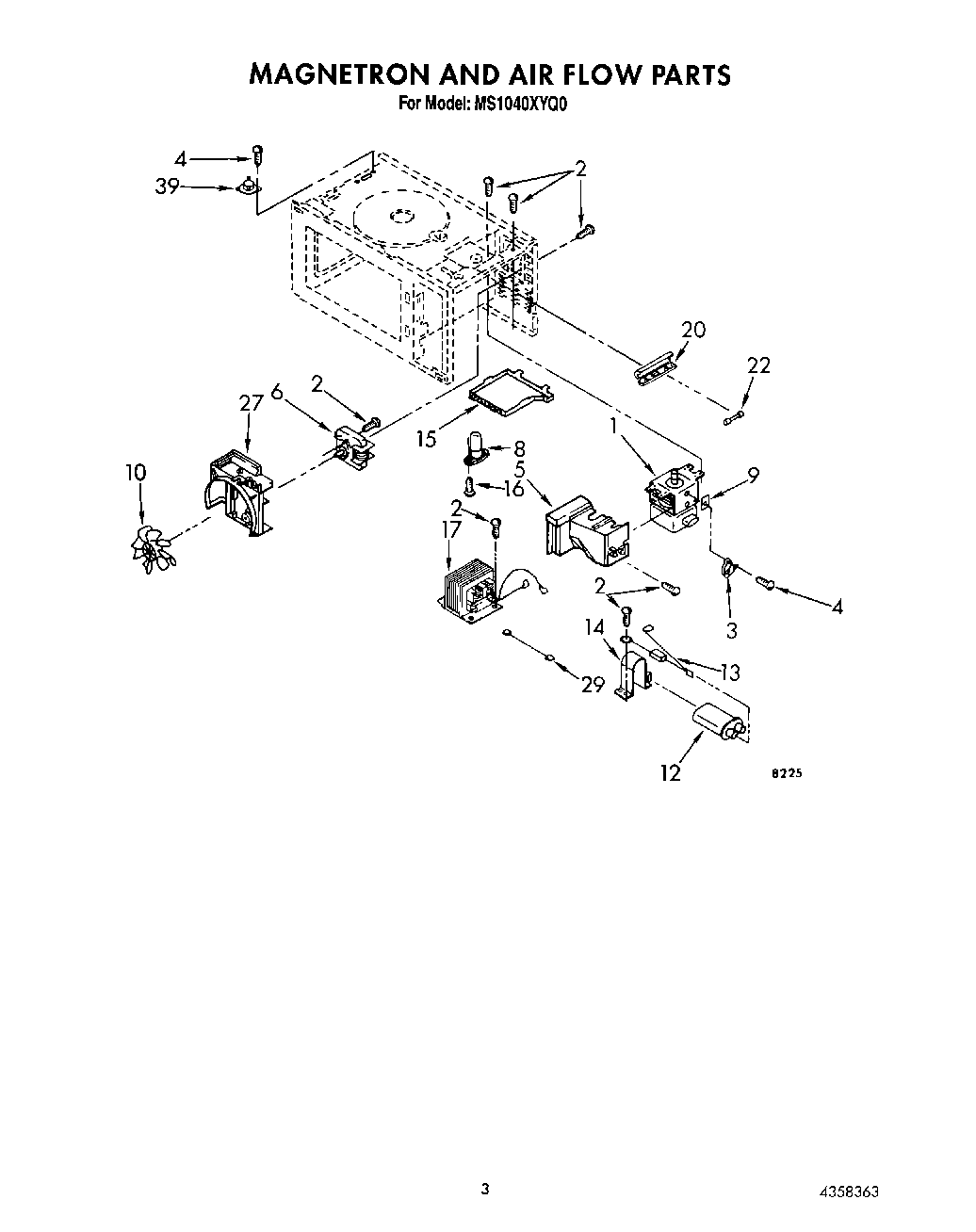

MS1040XYQ0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw
3	Thermostat
4	Screw (2)
5	Duct, Air
6	Motor, Fan
8	Base Less Light
9	Insulator, Thermostat
10	8184292 Whirlpool Microwave Fan Blade
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Bracket, Base
16	W11380570 Whirlpool Microwave Screw
17	Transformer
20	Holder, Fuse
22	Fuse
27	Cover, Fan
29	Lead, High Voltage
39	Thermostat
