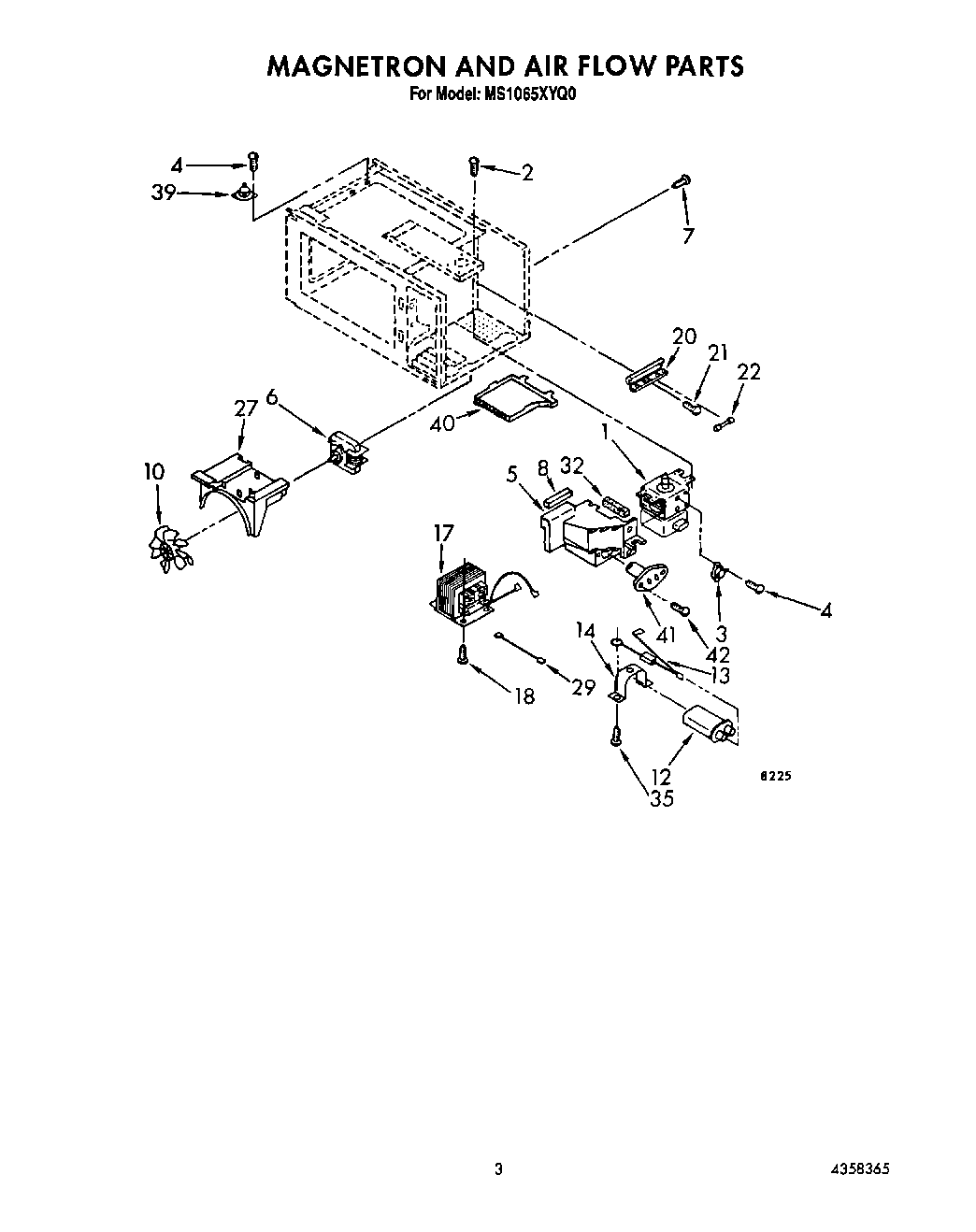

MS1065XYR0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermostat, Magnetron
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	Screw, 4 x 10 mm
8	Seal, Foam
10	8184292 Whirlpool Microwave Fan Blade
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
17	Transformer
18	WP3400094 Whirlpool Screw
20	Holder, Fuse
21	Screw (2)
22	Fuse
27	Cover, Fan
29	H.V. Cable
32	Seal, Foam
35	Screw, 4 x 8 mm
39	Thermostat, Oven
40	Bracket, Base
41	Base Less Light
42	Screw
