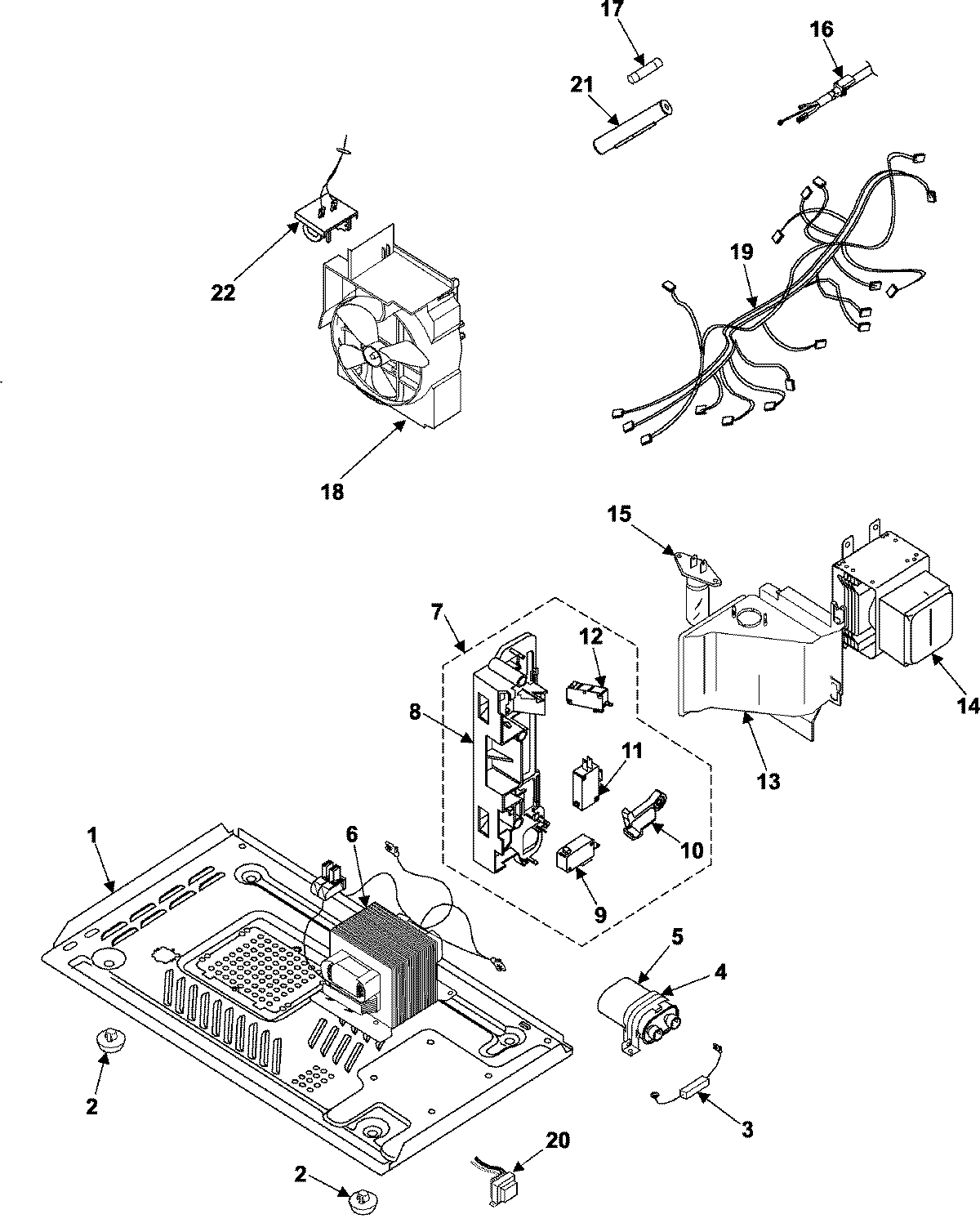

MS1240WB 03 – INTERNAL CONTROL/LATCH ASSY/BASE

Products

Position	Product
1	MAY DE80-00024A
2	FOOT
3	MAY DE59-40001A
4	SEE NOTE GROUND WIRE, GREEN
5	2501-001015 Samsung Capacitor
6	MAY DE26-00062A
7	MAY DE96-00115D
8	MAY DE72-00138A
9	WP3405-001034 Whirlpool Microwave Switch
10	MAY DE66-00088A
11	MAY 3405-001033
12	MAY 3405-001055
13	MAY DE71-00164A
14	MAY YOM75P31ESS
15	4713-001102 Samsung Microwave Incandescent Lamp 125V 25W
16	MAY DE39-00040E
17	3601-001198 Samsung Fuse Cartridge
18	MAY DE96-00173A
19	MAY DE39-00278A
20	MAY DE26-00037A
22	MAY DE97-00277A
