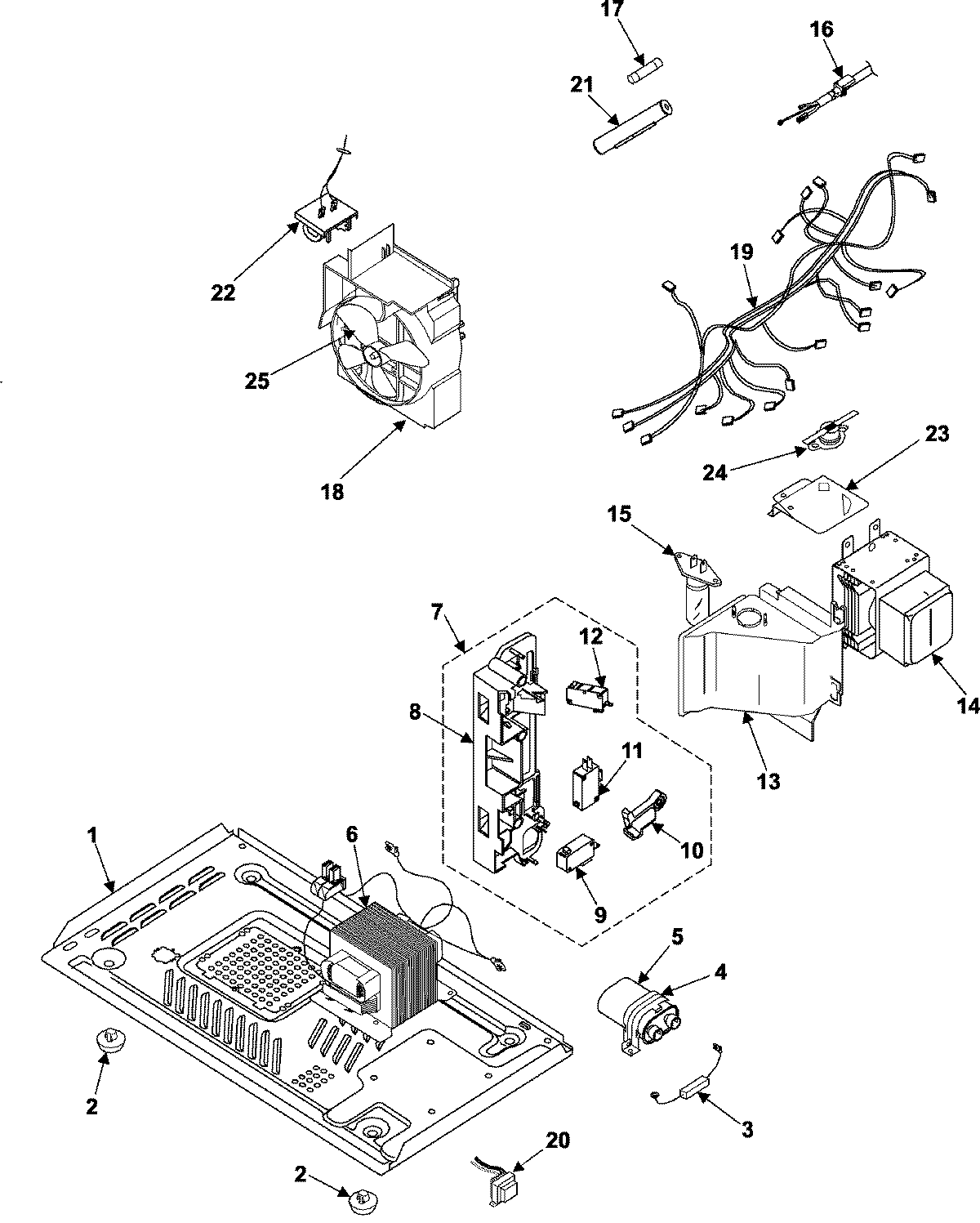

MS1440BB 03 – INTERNAL CONTROL/LATCH ASSY/BASE

Products

Position	Product
1	MAY DE80-10002D
2	FOOT
3	MAY DE59-40001A
4	SEE NOTE GROUND WIRE, GREEN
5	2501-001015 Samsung Capacitor
6	MAY DE26-00021A
7	MAY DE96-00005F
8	MAY DE66-40001C
9	WP3405-001034 Whirlpool Microwave Switch
10	MAY DE66-90114A
11	MAY 3405-001033
12	MAY 3405-001055
13	MAY DE71-60458A
14	MAY DE03-00010A
15	4713-001102 Samsung Microwave Incandescent Lamp 125V 25W
16	MAY DE39-00040E
17	3601-001198 Samsung Fuse Cartridge
18	MAY DE96-00174A
18	MOTOR-FAN
19	MAY DE39-00256B
20	MAY DE26-00037A
22	MAY DE97-00277A
23	MAY DE61-50574A
24	DE47-20173A Samsung Thermostat
25	BLADE, FAN
