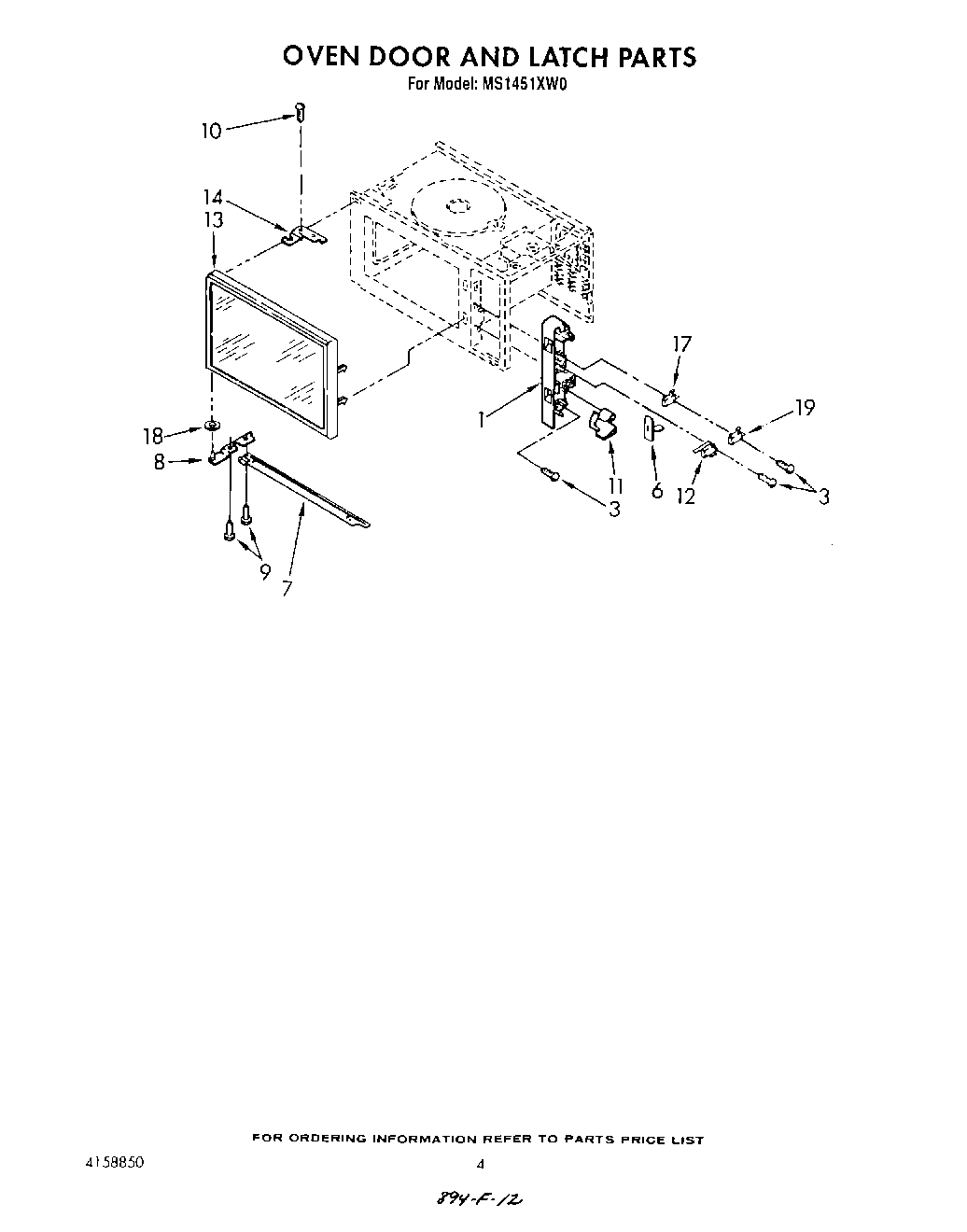

MS1451XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch Board
3	Special Screw (2)
7	Pin, Protector
8	Hinge Plate, Lower
9	W11380570 Whirlpool Microwave Screw
10	WP3400094 Whirlpool Screw
11	Lever Switch
13	Door, Complete
14	Hinge Plate, Upper
17	4392027 Whirlpool Microwave Primary Switch
18	Hinge Washer
