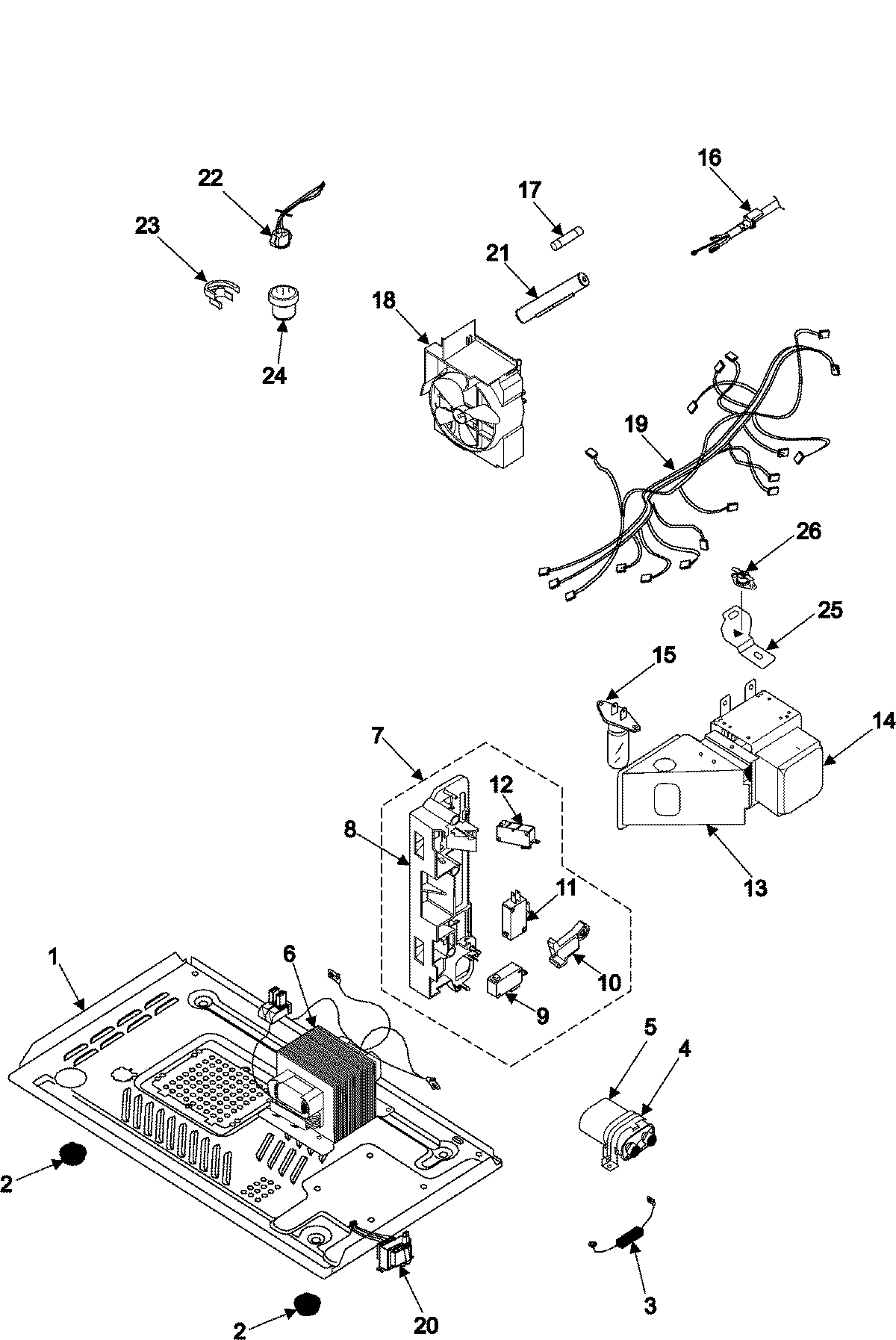

MS1470WA 03 – INTERNAL CONTROL/LATCH ASSY/BASE

Products

PositionProduct
1MAY DE80-10002F
2FOOT
3MAY DE59-40001A
4MAY DE61-50106A
52501-001015 Samsung Capacitor
6MAY DE26-00021A
7MAY DE96-00005F
8MAY DE66-40001C
9MAY 3405-001055
10MAY DE66-90114A
11MAY 3405-001033
12WP3405-001034 Whirlpool Microwave Switch
13MAY DE71-60458A
14MAY DE03-00010A
154713-001102 Samsung Microwave Incandescent Lamp 125V 25W
16MAY DE39-00040E
173601-001198 Samsung Fuse Cartridge
18MAY DE31-00001G
19MAY DE39-00256B
20TRAINS L.V.
22DE39-00072A Samsung Wire Harness-S
23MAY DE61-90111A
24DE32-60013A Samsung Sensor Gas
25MAY DE61-50574A
26DE47-20173A Samsung Thermostat
