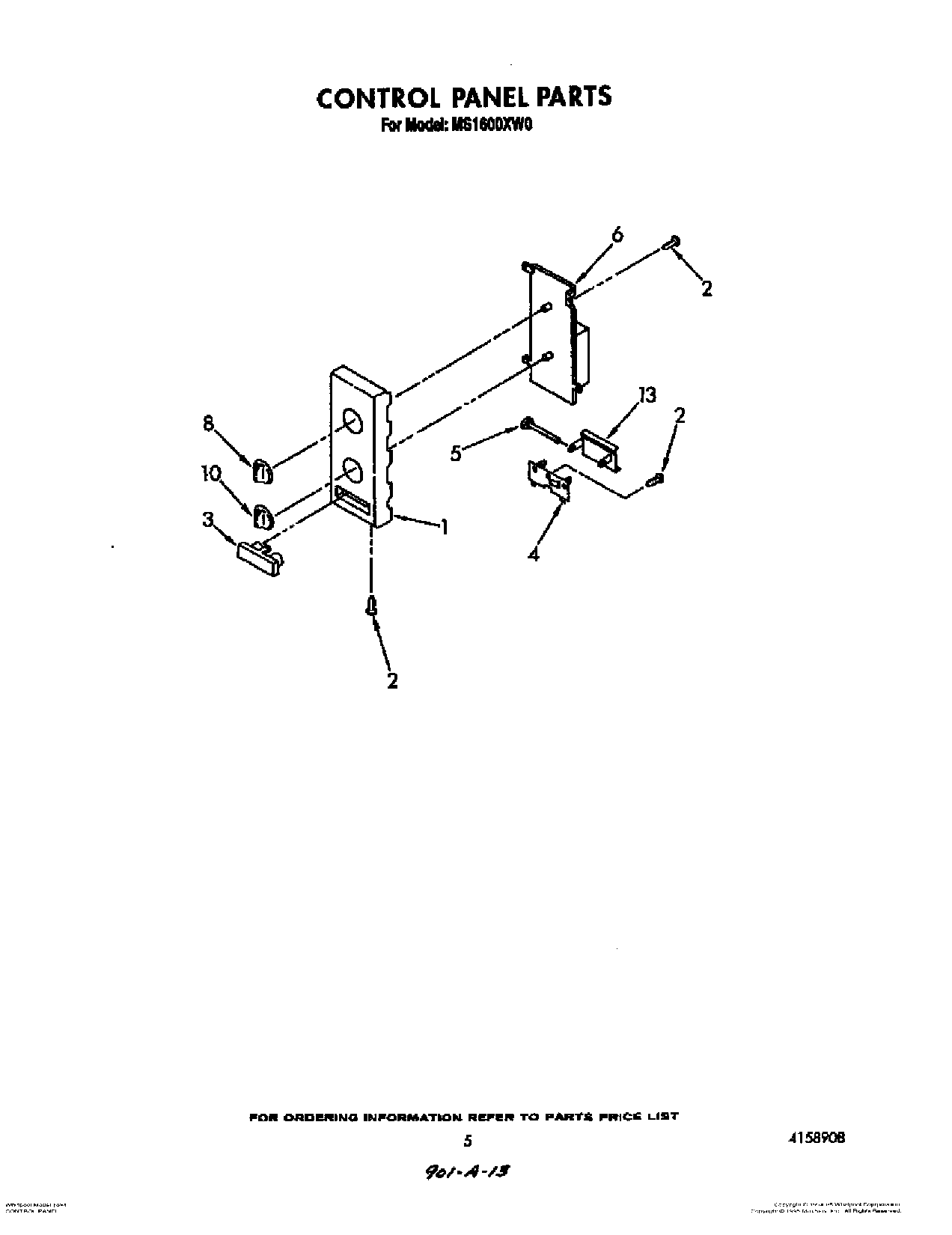

MS1600XW0 05 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Screw |
| 3 | Release Button |
| 4 | Bracket, Door Release |
| 5 | Pin, Bracket |
| 6 | Timer |
| 8 | Knob, Control |
| 10 | Knob, Timer |
| 13 | Lever, Release |
MS1600XW0 05 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Screw |
| 3 | Release Button |
| 4 | Bracket, Door Release |
| 5 | Pin, Bracket |
| 6 | Timer |
| 8 | Knob, Control |
| 10 | Knob, Timer |
| 13 | Lever, Release |
