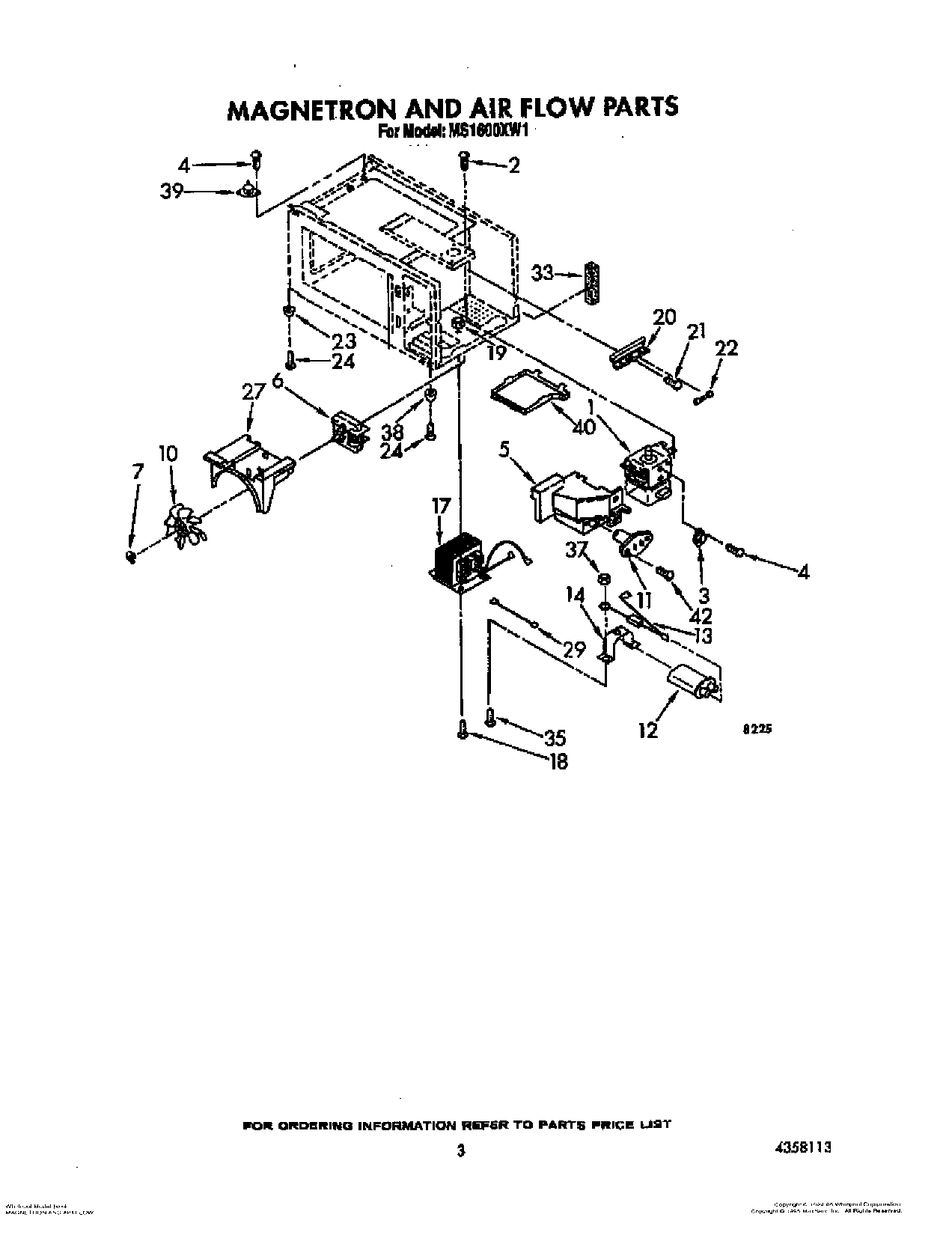

MS1600XW1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermostat, Magnetron
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	E-Ring
10	8184292 Whirlpool Microwave Fan Blade
11	Base Less Light
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
17	Transformer
18	Screw, 5 x 12mm
19	Nut (2)
20	Holder, Fuse
21	Screw (2)
22	Fuse
23	Foot, Left (2)
24	Screw
27	Cover, Fan
29	Lead, High Voltage
33	Seal, Foam
35	Screw, 4 x 8 mm
37	Nut
38	Foot, Right (2)
39	Thermostat, Oven
40	Bracket, Base
42	Screw
