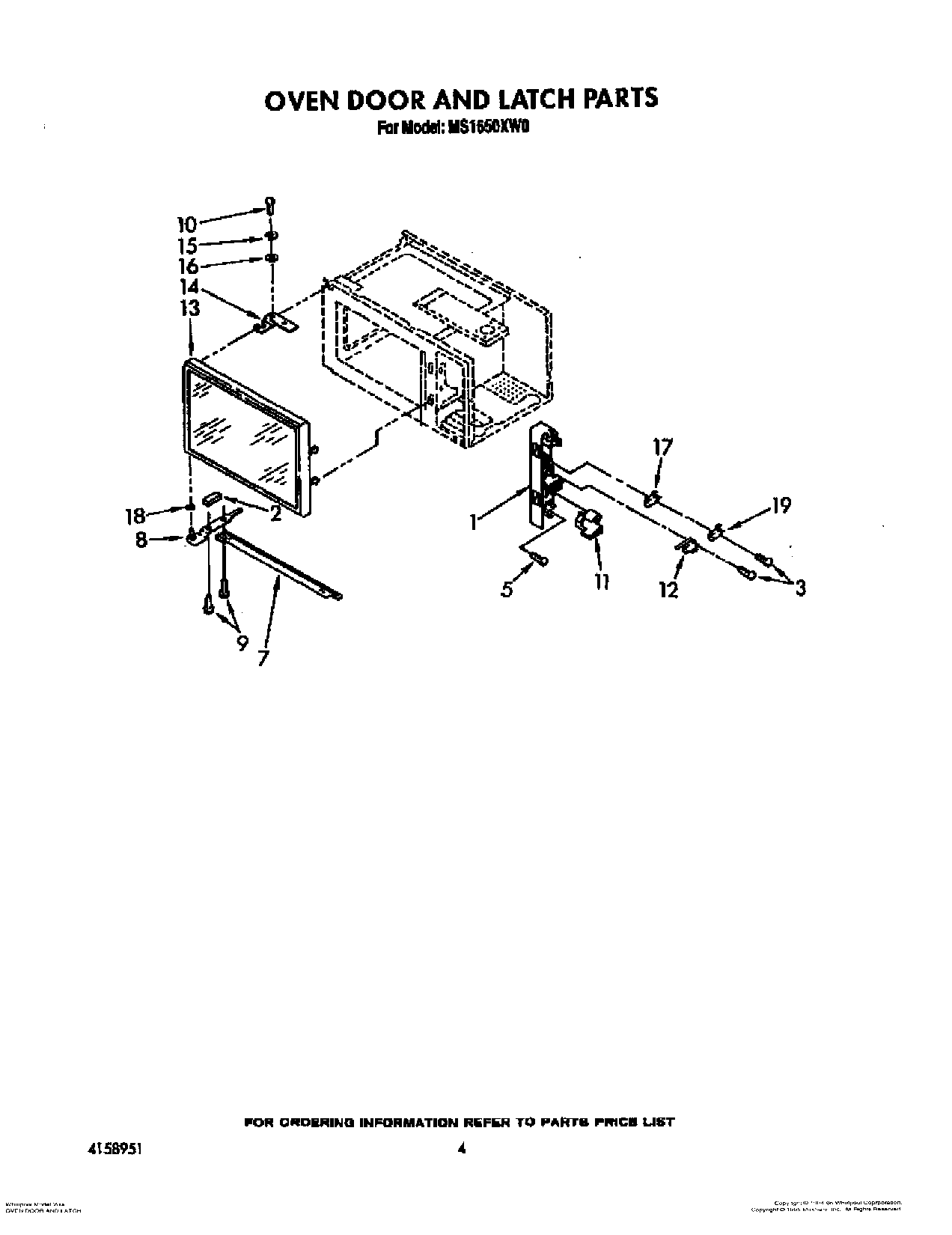

MS1650XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch Board
2	Foot (Right Side (2))
3	Screw, 3 x 20mm
5	Screw (2)
7	Bracket, Hinge
8	Hinge Plate, Lower
9	WP3400094 Whirlpool Screw
10	Screw, 5 x 16mm
11	Lever Switch
13	Door, Complete
14	Hinge Plate, Upper
15	Washer
16	Washer
17	4392027 Whirlpool Microwave Primary Switch
18	Washer
